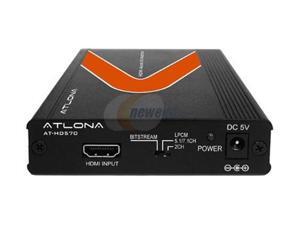

Specification: Input port: HDMI Female (type A)
Output port: HDMI Female (Type A); Optical (TosLink); 4 x 3.5mm Outs for Multi-Channel Audio
HDMI input/output audio format: LPCM 7.1, 5.1, 2ch and Bit stream Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS and DTS-HD Master Audio)
Optical Output audio format: Dolby Digital, DTS 5.1, 2ch and LPCM 2 channels
Multi-Channel audio format: LPCM 7.1/5.1/2 channels.
Feature: 3D Capable
Compliant with HDMI 1.3 or lower standards.
Support CEC bypass
Supports digital video formats in Deep Color Mode from 25MHz to 6.75GHz for 36 bits
Supports high definition input up to 1080p
Video Pass-through, no scaling
Supports HDMI signal amplification and equalization with reclocking function
Supports uncompressed digital audio formats LPCM 7....
Power Supply: Built-in international AC power socket (IEC C14 inlet) / 120-240V, 50-60Hz
12V DC military grade port can be used for external battery power and/or failover redundancy with optional "brick" DC adapter
-SDI x1 10-bit SD/HD/3G HD and 2K switchable
-Component YUV x1 on 3 BNCs, supports HD and SD, switchable to composite
-HDMI type A x1
-DB-25 x4 for 4 channels of balanced analog audio / (pinout compatible with Yamaha, Mackie, Sony and Apogee connectors)
-DB-25 x8 for 8 AES/EBU channels / (sample rate converted; pinout compatible with Yamaha, Mackie, Sony and Apogee connectors)
-RCA x2 for unbalanced analog audio
-SDI: 16 channels embedded in SD, HD and 2K / (6 channels in HD and 2K, and 8 channels in SD for capture via Thunderbolt port)
-HDMI: 8 channels
-SDI x2 10-bit SD/HD...

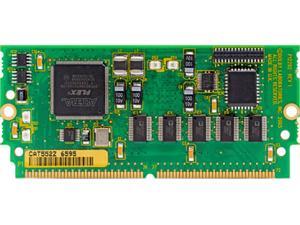

Feature: The Blackmagic Design Dolby Digital Decoder Module for Blackmagic Design Audio Monitor will decode and enable monitoring of 5.1 channel Dolby Digital and AC-3 surround sound sources when installed in the Blackmagic Design Audio Monitor. The inputs that will support 5.1 channel are 6G-SDI and the AES/EBU digital audio input. Users will also be able to isolate and monitor any one of the 5.1 channels using push button controls located on the front of the Audio Monitor.
The Dolby Digital Decoder Module is an upgrade board that the end user will be able to install in a special expansion slot on the Audio Monitor.
