Lorex

960H WEATHERPROOF NIGHT VISION
SECURITY CAMERA

Lorex
Lorex Lorex Lorex

SEE IT ALL -
IN GREATER DETAIL

  • TRUE TO LIFE NON-STRETCHED VIDEO
  • FIRST-RATE NIGHT VISION
  • VANDAL RESISTANT

View your world in incomparable detail with LBC7032F, a 960H optimized weatherproof bullet camera. When used with a 960H DVR, this camera produces a sharper, non-stretched image that leaves nothing to the imagination. Industry-leading 960H resolution ensures high quality live viewing with 34% more resolution than standard D1 resolution and 5x more than CIF.

Lorex

This 700TVL camera uses exclusive infrared filter technology to deliver accurate color reproduction and video that rivals DVD quality. Experience crystal clear nighttime video with 3 ProLux IR LED's, which provide state-of-the-art night vision of up to 185ft in ambient lighting and up to 120ft in total darkness. The robust weatherproof (IP66 rated) housing is designed with a cable pass through bracket to ensure a reliable, vandal resistant solution.

Lorex

960H OPTIMIZED RESOLUTION

Providing up to 34% more resolution than D1 (DVD quality) and 5x more than CIF.

CRYSTAL CLEAR NIGHT VISION

Three ProLux IR LED's provide longer night vision range and illuminate more evenly.

BUILT TO LAST

A vandal resistant housing and a cable pass through bracket ensure it stays where it needs to be.

Lorex

Night/Day Video
View video during the day and with night vision at night.


Lorex

Vandal Resistant
Built and designed to withstand vandalism.


Lorex

Indoor / Outdoor
Camera performs both in outdoor and indoor applications.

FEATURES


Lorex
  • Advanced 960H Image Sensor
  • Video image processor delivers up to 700TV lines of resolution
  • 960H (960x480) image sensor delivers up to 34% more resolution than D1 and 5x more than CIF
  • True-to-life non-stretched aspect ratio provides sharper, more detailed images
  • 6mm fixed lens offers a close up view (53° diagonal field of view)
  • ProLux IR LED's provide longer night vision range, longer lifespan, and illuminate more evenly
  • Night vision up to 185ft away in ambient lighting conditions and up to 120ft away in total darkness
  • Split glass design minimizes IR reflection
  • Weatherproof rated housing for indoors & outdoor installation (IP66)
  • Robust vandal resistant housing with cable pass through bracket
Lorex

Product Information

Package Weight: 0.8 kg / 1.9 lbs
Package Dimensions: 238mm x 78mm x 139mm/9.4” x 3.1” x 5.5”(W x D x H)
Package Cube: 0.002 CBM / 0.09 CBF
Contents: 1 x Camera, 1 x Mounting kit with Allen key, 1 x 60ft BNC / power extension cable, 1 x BNC female / RCA male adapter, 1 x Power adapter

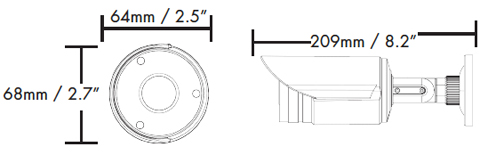

Dimensions


Lorex
Lorex

Disclaimers

  1. When connected to a 960H capable DVR.
  2. Stated IR illumination range is based on ideal conditions in typical outdoor night timeambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/ absorption level of object.
  3. Not intended for submersion in water. Installation in a sheltered location recommended.

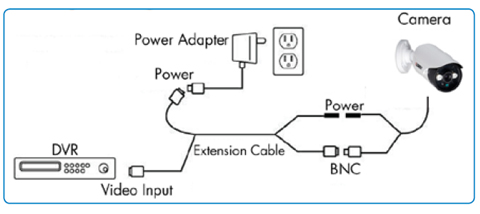

Installation Diagram

Lorex

Learn more about the Lorex LBC7032F

Model

|
Brand
Lorex
Model
LBC7032F

Details

|
Type
Surveillance - Cameras
Warranty, Returns, And Additional Information

Customer Reviews of the Lorex LBC7032F

There are no reviews yet... do you own this product? Write a Review
