LG 47WT30MS-B 47" class IR Spread based Ghosting Free Multi-Touch Display

Be the first to review this product...

Sold and Shipped by Newegg

47" Screen Size
IPS Panel
1,920 x 1,080 FHD
400 cd/m2 Brightness
500,000:1 Contrast Ratio
HDMI,DVI-D, DP, RS-232C, RJ45

Overview
Specifications
Warranty & Returns
Reviews
Q&A

LG WT30MS Series Multi-Touch Display

Features

PRECISE MULTI-TOUCH EXPERIENCE

LG's touch technology delivers exceptionally accurate touches, swipes and gestures without ghosting.

BETTER MULTI-TOUCH EXPERIENCE

Can be used in various high-traffic locations such as subways and exhibition halls for interactive way-finding and informational purposes with our improved 1 0 points touch monitors.

HIGHLY RELIABLE TOUCH

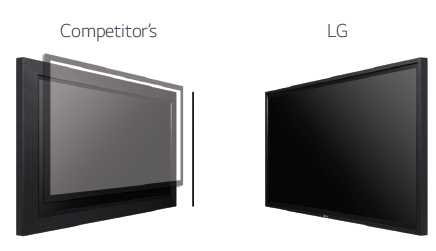

No external touch overlay
Dust preventing mechanism between touch frame and glass help ensure high reliability
Slimmer design is ideal for places where space is at a premium

Specifications

Native Display Resolution 1920 X 1080 (FHD)
High Brightness 350 cd/m2 (55WT30MS-B)
400 cd/m* (47WT30MS-B, 42WT30MS-B)
Contrast Ratio 1,000:1 (Typ.), 500,0001 (DCR)
178°/178° Ultra Wide Viewing Angle
RJ-45 LAN Control
Suitable for Portrait or Landscape Installation
RGB, DVI and HDMI Connection
RS-232C Control
Convenient External Speaker-Out
Energy Star* 6.0 compliant
Even Bezel Width 15 mm (Left/Right/Top/Bottom)
USB Playback
3-Year Limited Warranty Parts/Labor/Backlight

Dimensions

Learn more about the LG Electronics 47WT30MS-B

General

Brand: LG

Model: 47WT30MS-B

Display

Screen Size: 47"

Touchscreen: Touchscreen

Native Resolution: 1920 x 1080

Brightness: 400 cd/m2

Contrast Ratio (Typical): 1000:1

Viewing Angle: 178°(H) / 178°(V)

Response Time: 9ms

Conveninence

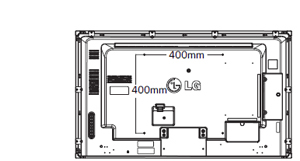

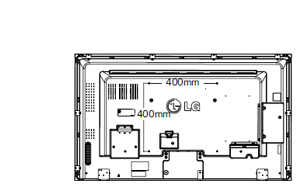

VESA Compatible: 400 x 400mm

Connectivity

HDMI Port: 1

DVI Port: 1

USB Port: Yes(2) Contents Playerback & Touch Control

Other Ports: Analog: RGB(1) (Shared Component & AV)
External Control: RS232C(In/Out), RJ45(1), IR(1)
HDTV Formats: Component : 720p, 1080i , 1080p, HDMI : 720p, 1080i, 1080p
Audio: RGB/DVI-D/Component(3.5F 1)
Digital: DP(1)

Features

Feature: Recommended Resolution: 1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)
Picture mode: Vivid, Standard, Cinema, Sports, Game
V-Scanning Frequency: 50Hz ~ 75.02Hz (RGB), 56Hz~60.317Hz (HDMI/DVI-D), 50 ~ 60 Hz(Component)
Pixel Frequency: 148.5 MHz (RGB, HDMI/DVI-D)
Video Input: RGB, HDMI, DVI, DP
Color temperature: Warm, Medium, Cool
Sync Compatibility: Separate / Composite / Digital
Max Input Resolution: 1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)
H-Scanning Frequency: 30 ~ 83 kHz (RGB, HDMI/DVI-D), 15.625 ~ 60 kHz(Component)
Multi touch point: Max 10 Point
Protection Glass Thickness: 3T (Anti-fog, Anti-glare)
Protection Glass Transmission: 85%
Interface: USB 2.0
Touch Resolution: 1280 x 730
Accuracy: 1mm
Scan Time: 10 ms
Power (Typ.): 4W
Operating System Support: Windows XP (1Point) / Windows 7 (10 Point)
Touch type: IR(Infrared Rays) Spread
Clear Voice II
Sound Mode: Standard, Music, Cinema, Sports, Game
Speaker On/Off
Balance
Brightness/Contrast/ Backlight
DPM Select
Temperature Sensor
Information: Model/Type, Software Version, Serial Number, IP Address, MAC Address, Homepage
Position/Size
ISM Method: Normal, White Wash, Orbiter, Inversion
Tile Mode: Yes (not available in Touch)
Key Lock
Auto Config/Phase
Advanced: Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
Smart Energy Saving
Energy Saving: Yes (Off, Minimum, Medium, Maximum, Screen Off)
File Play with USB
Auto Power/Source Memory
Input Label
Time: Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
PIP/PBP
Source Selection: Component, RGB, DVI-D, HDMI, USB, Display Port
