ViewSonic CDE3200-L 32" Full HD Commercial LED display

Sold and Shipped by Newegg

  • 32" Screen Size
  • LED Backlight
  • Full HD 1080p
  • RS232 control
  • HDMI CEC IR pass-through.
  • IR Pass-through for Multi-device Control
  • Energy-saving 30,000-hour

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

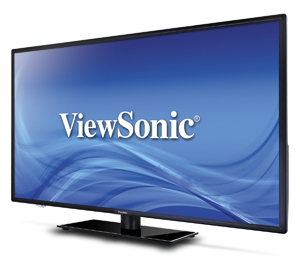

CDE3200-L 32" Full HD LED Professional Display
Convenience and Control for Hospitality Environments



DESCRIPTION

The ViewSonic CDE3200-L commercial 32-inchLED display is an ideal choice for hotels, restaurants, and other hospitality environments. This Full HD display has a glossy-finish, slim-bezel design with a removable glass stand, and comes with versatile HDMI (x3), VGA, Composite, Y/Pb/Pr and RS-232 connectivity. With optimal brightness, a high contrast ratio, and fast 6.5ms response time, it delivers crisp images and superior color performance. Dual integrated 10W stereo speakers and SPDIF interface deliver quality sound – making this display a complete multimedia entertainment solution. An RS-232 control port with IR pass-through provides automated control for hospitality and commercial installations. HDMI CEC pass-through support provides one-touch-play and other control features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray players. Also, a programmable hospitality menu allows for custom calibration of features such as channel defaults, audio levels, and power up – making the CDE3200-L ideal for use as in-room hotel televisions



KEY FEATURES:

Viewsonic CDE3200-L LED Display
  • Full HD 1080p resolution shows multimedia content in greater detail
  • RS-232 ports with IR pass-through provide easier management of settings
  • HDMI CEC pass-through for content management on multiple devices
  • USB ports offer photo and music file playback
  • Customized hospitality mode setting and cloning for multi-screen setup


Viewsonic CDE3200-L LED Display Viewsonic CDE3200-L LED Display

Full HD 1920 x 1080p Resolution
ViewSonic's CDE3200-L Display features Full HD 1920 x 1080 resolution to deliver superior pixel-by-pixel performance for a more realistic viewing experience. At this resolution you'll experience greater image clarity and detail – qualities that will bring high-definition TV programs, HD movies and other multimedia content to life.


Viewsonic CDE3200-L LED Display

IR Pass-Through for Multi-Device Control
The CDE3200-L's RS-232 control port features IR pass-through to provide automated control for hospitality and commercial display installations. IR pass-through offers local control for set-top boxes or other connected devices, directly with the display's remote controller.


Viewsonic CDE3200-L LED Display

HDMI CEC Opens a World of HDMI Possibilities
With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display's remote controller for a wider range of viewing possibilities.


Viewsonic CDE3200-L LED Display

Handy USB Multimedia Playback & Cloning Features
With the handy PC-less USB playback feature, photos and music can be immediately played and shared by plugging a USB drive into the display. In addition, the CDE3200-L includes USB cloning for easy duplication in multi-screen environments.


Viewsonic CDE3200-L LED Display

Hospitality Mode for Automated Multi-Screen Control
The CDE3200-L is great for multi-screen setups in hotels, restaurants, sports bars, or retail outlets that require automated control and customizable presets. With aUSB-programmable hospitality setting, each television can have the same customized channel default, audio level, front-panel lockout, and auto power-up settings.


Viewsonic CDE3200-L LED Display Viewsonic CDE3200-L LED Display

Versatile Input Selection for Flexible Connectivity
With the CDE3200-L's versatile selection of inputs, you can easily connect and use a variety of digital equipment for use in hotel rooms and public areas. This includes an HDMI port to connect to high-definition content sources, USB and VGA ports, as well as composite and component inputs.


Viewsonic CDE3200-L LED Display Viewsonic CDE3200-L LED Display

Energy-Saving 30,000-Hour* LED Backlight
Our displays utilize energy-saving LED backlightswith lifespans of over 30,000 hours – that's more than a decade of durability. Together with the advantages of significantly lower power consumption, it provides a lower cost of ownership along with a higher ROI, making the CDE3200-L a great long-term investment.


Viewsonic CDE3200-L LED Display Viewsonic CDE3200-L LED Display

Dual 10W Stereo Speakers and External Speaker Out
The CDE3200-L display has two integrated 10-Watt stereo speakers with SRS TruSurround HD for crystal-clear stereo sound. Users can also add an additional speaker via the SPDIF audio-out port. This allows users to conveniently expand their sound systems to different locations in the room or venue, via cable.


Viewsonic CDE3200-L LED Display

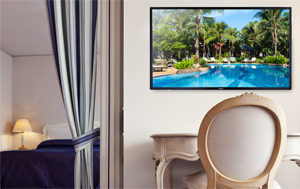

Modern Vesa-Mountable Design with Glossy Bezel and Removable Glass Stand
Designed to be displayed in high-traffic areas of hotel rooms, lobbies, restaurants, and other hospitality venues, the CDE3200-L display adds a sleek touch to any setting. With a glossy bezel and removable glass stand, this premium-value display looks as good as it performs. Also VESA-compliant, it accommodates more flexible mounting options on display stands and walls.


Viewsonic CDE3200-L LED Display

Remote Control-Out Function Keeps Digital Devices Out of Sight
The RC control output function allows users to easily control DVD players, Internet TV receivers, set-top boxes, and other devices – even when they are hidden out of sight. RC control output allows for the use of individual remote controls to transmit signals via IR transmitter to the attached and hidden digital devices.


Viewsonic CDE3200-L LED Display

VERSATILE INPUT CONNECTIVITY

VGA, Y/Pb/Pr, and USB inputs provide extreme flexibility, while three HDMI ports allow connection to HD set-top-boxes, media players, and Blu-ray players.



APPLICATIONS

  • Hospitality / Entertainment display
  • Business / Educational display – boardroom and classroom
  • Digital signage – small to mid-size business
  • Medical office and waiting room entertainment displays
  • Hotel guest room entertainment
  • Sports bar and restaurant entertainment displays

  • Product Dimensions (W x H X D) without stand: 29.5 x 17.4 x 3.1"
  • Product Dimensions (W x H X D) with stand: 29.5 x 19.2 x 7.1"



WHAT IS IN THE BOX:

  • CDE3200-L Display
  • Power Cord
  • Remote Control with Batteries
  • Quick Start Guide
  • ViewSonic Wizard CD (User Guide)


SPECIFICATIONS

Panel Type 32" Color TFT active matrix, wide LCD with WLED Backlight
Display Area 27.5" Horizontal x 15.5" vertical; 32" diagonal
Optimum Resolution 1920 x 1080, 600mm dot pitch
Contrast Ratio 3000:1 (typ)
Viewing Angles 170 Degrees horizontal; 170 degrees vertical
Response Time 6.5ms
Light Source Long life, 50,000 hours (typ)
Brightness 350cd/m² (typ)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard coating (3H)
Input Video Input HDMI, component, VGA, CVBS
Control Input / Output RS-232
USB 2.0 JPEG, MP3
Audio Output   Internal 10-Watt speakers (x2), SPDIF optical
Input Signal TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
Connector Analog 15-pin mini D-sub (VGA), RCA Audio In, headphone out
Digital HDMI (x3), Y/Pb/Pr, CVBS, SPDIF, USB
Power 3-Pin plug
Controls Panel Menu, VOL -/+, Down/Up, Input, Power
Picture Picture Mode, Brightness, Contrast, Color, Tint, Sharpness,
Backlight, Screen Size, Auto Adjust, H. Position, V.Position,
Clock, Phase, Color Temperature, Dynamic Contrast, Film
Mode, Noise Reduction, MPEG Noise Reduction
Sound Sound Setting, Digital Audio Output, Equalizer Setting,
SRS Setting
Parental Lock Parent Control, V-Chip, Movie Rating, English Rating,
French Rating, Block UnRated Show, Change Password,
Keypad Lock, Source Lock, System Lock
Setup Closed Caption, Menu Language, Clock, OSD Transparency,
Time Zone, Auto Clock, Setup Time, Day of Week, Daylight
Saving Time, Time Format, OSD Timer
Others Blue Back, No Signal Power Off, No Operation Power Off, All
Reset, Audio Only, Display ID, Usage Monitor
Power Voltage 100 ~ 240VAC (Universal), 50 - 60Hz
Consumption 38W (typ)
Operating Temperature 32 - 104°F (0 - 40°C)
Conditions Humidity 20 - 80% (Non-condensing)
Dimensions
(W x H x D)
Physical With Stand 29.5 x 19.2 x 7.1 in. (747.8 x 488.1 x 180mm)
Physical Without Stand 29.5 x 17.4 x 3.1 in. (474.8 x 442 x 77.4mm)
Bezel Dimensions Left / Right 0.82 / 0.82" (21mm / 21mm)
Top / Bottom 0.86 / 0.82" (22mm / 21mm)
Weight Net With Stand 16.1 lbs (7.3kg)
Net Without Stand 14.3 lbs (6.5kg)
Gross 19.8 lbs (9.0kg)
Wall Mount VESA® 200mm x 100mm
Regulations FCC, CE, UL, RoHS
Recycle / Disposal Please dispose of in accordance with local, state or federal laws.
Warranty Three-year limited warranty on parts, labor and backlight


Learn more about the ViewSonic CDE3200-L

General

|
Brand
ViewSonic
Model
CDE3200-L
Cabinet Color
Black

Display

|
Screen Size
32"
Native Resolution
1920 x 1080
Brightness
350 cd/m2
Contrast Ratio (Typical)
3000:1
Viewing Angle
178°(H) / 178°(V)
Response Time
6.5ms

Conveninence

|
Input Video Compatibility
Analog RGB, Digital

Connectivity

|
HDMI Port
3

Power

|
Power Supply
100 - 240 VAC, 50/60Hz
Power Consumption
38W (typ)

Dimensions & Weight

|
Dimensions without Stand
17.40" x 29.50" x 3.10"
Dimensions with Stand
19.20" x 29.50" x 7.10"
Weight without Stand
14.3 lbs.
Weight with Stand
16.1 lbs.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the ViewSonic CDE3200-L

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Lucie R.
  • 8/13/2015 3:46:18 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsVeiwSonic

Pros: I am not really smart as to the tech side of Screens but I know had had nothing but Viewsonic for my last 5 Screens, this is my last one. I've only had this alittle over 4 months and I get the noise that comes out of it. This gets louder then it makes alot high tones noises . My last one and this one is the same. Yet. when I call Newegg they do nothing about it. I have always bought and sent people to them. I know it makes to mind to anyone that I need a good screen and a big one due to my eyes but its not right to spend more money and it not to last longer.. ViewSonic CDE3200-L 32" Full HD Commercial LED display . There is no one that works on these anymore so, by buying something that cost alittle more doesn't always pay off. What a share New Egg won't fix this!

Cons: I am not really smart as to the tech side of Screens but I know had had nothing but Viewsonic for my last 5 Screens, this is my last one. I've only had this alittle over 4 months and I get the noise that comes out of it. This gets louder then it makes alot high tones noises . My last one and this one is the same. Yet. when I call Newegg they do nothing about it. I have always bought and sent people to them. I know it makes to mind to anyone that I need a good screen and a big one due to my eyes but its not right to spend more money and it not to last longer.. ViewSonic CDE3200-L 32" Full HD Commercial LED display . There is no one that works on these anymore so, by buying something that cost alittle more doesn't always pay off. What a share New Egg won't fix this!

Did you find this review helpful? Yes No

  • Ross L.
  • 2/19/2014 11:24:57 AM
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsNot sharp & DVI broken

Pros: Good size, good price.

Cons: DVI input broken on arrival, HDMI from computer not sharp.

I after seeing in my setup, I'd rather a slightly larger monitor, but Newegg monitor return policy is replace or store credit only, so now Newegg keeps my money... Be careful that you really want a monitor from Newegg. Have 2 choices you want in case the first doesn't work out.

1 out of 1 people found this review helpful. Did you? Yes No

  • Michelle F.
  • 2/9/2014 3:49:10 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat Monitor

Pros: Thin, easy control's, simple assembly. Great color display for revit and 3D max.

Cons: Have to use the remote control to turn it off and on. Also internal clock was off.

1 out of 2 people found this review helpful. Did you? Yes No
