Item#: 9SIA2Y90YS1194

Huntkey FX500SE Power Supply, 80+ Platinum Certified, 500W Rated, LLC Half Bridge, AFPC

  • ATX12V / EPS12V
  • 90 - 264 V 50/60 Hz
  • ATX 12V v2.2 / EPS 12V v2.92
  • 90 - 264 V
  • 80+ Platinum certified
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Email this page
ICON Loading...
FX500SE

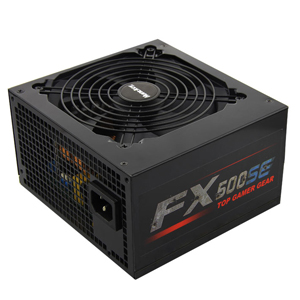

Huntkey FX500SE Power Supply, 80 PLUS Platinum Certified, 500W Rated, LLC Half Bridge, AFPC

FX500W is fully compliant with 80 PLUS Platinum, addressing a growing market demand for powerful single rail PSUs. It features a powerful 12V output delivery (with up to 42A on the 12V rail), powers up most high-end VGAs with amazingly quiet operation. No doubt it's specially designed for hardcore gamers who desire extremely high efficiency and high-definition image display.

FX500SE

Features:

FX500SE FX500SE
  • 80 PLUS Platinum certified – up to 92% efficiency at typical loads
  • Complies with Intel ATX 12V V2.31 & EPS 12V V2.92
  • Full range Input voltage: 90 ~ 264V
  • Active PFC (PF > 0.99)
  • Erp Lot 6 Ready! A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and ensures the system will consume < 1W in its off-mode
  • Japanese bulk capacitors and solid state capacitors tackle extreme environments
  • LLC resonance circuit with DC-DC converter module for extremely stable performance
  • The fan smartly starts or stops when change in temperature is detected, optimizing the cooling system and minimizing noise
  • Excellent voltage regulation (+12V voltage regulation about ± 1%) & excellent performance for your hardware
  • Powerful +12V output delivery (up to 90% power available on +12V rail) for extreme gamers
  • Multiple protections (OVP, UVP, OPP, OTP, SCP) prevent damage by accidents
FX500SE
  1. Mesh cable supports Cable Management and full tower chassis
  2. Dual +12v output design provides powerful output, which will power top configurations
  3. The output voltage with feedback designed independently, provides excellent compatibility for the latest hardware
  4. Intelligent and super-silent fan design and zero noise output
  5. DC-DC circuits and high quality solid capacitors provide stable output, ensure outstanding performance and reliability, & provide excellent voltage regulation
FX500SE
  1. Unique +5v Standby relay circuit design enhances output capability and reduces Standby power consumption. Compliant with latest Erp 2013.
  2. Double-layer EMI filter design effectively resists external interference and prevents internal electromagnetic leakage, providing better protection to your system.
  3. Active-PFC design, power factor correction increased to 0.99.
  4. Japanese capacitors, handling extreme environments, extend service life.
  5. Efficient LLC resonant circuit design ensures that conversion efficiency reaches 80 PLUS Platinum, ensuring lower energy consumption
  This Model
  FX500SE FX620M
Rated Power (W) 500 620
Efficiency Platinum Bronze
Connectors (20 + 4) pin x 1
CPU (4 + 4) x 1
SATA x 5
HDD 4-pin x 4
PCIE6 x 1
PCIE (6 + 2) x 1
(20 + 4) pin x 1
CPU (4 + 4) x 1
Floppy 4-pin x 1
SATA x 8
HDD 4-pin x 6
PCIE (6 + 2) x 4
FX500SE

Specifications:

Input Voltage 100 ~ 240VAC
Output Rated 500W Voltage +3.3V +5V +12V1 +12V2 -12V +5VSB
Max. Load 18A 18A 21A 22A 0.3A 2.5A
Min. Load 0.8A 0.5A 0A 0A 0A 0.1A
Regulation ±5% ±5% ±1% ±1% ±10% ±5%
Ripple & Noise 50mV 50mV 120mV 120mV 120mV 50mV
  Dimensions (W x H x L) 6 x 3.3 x 5.52 inches (150 x 86 x 140mm)
  PFC APFC

Learn more about the Huntkey HongKong FX500SE

Model

Brand
HUNTKEY
Model
FX500SE
Series
FX

Spec

Type
ATX12V / EPS12V
Maximum Power
610W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
2
PCI-Express Connector
1 x 6-Pin, 1 x 6+2-Pin
SATA Power Connector
5
SLI
SLI Ready
CrossFire
CrossFire Ready
Modular
No
Power Good Signal
100-500ms
Hold-up Time
17ms min.
Efficiency
> 90%
Over Voltage Protection
Yes
Overload Protection
Yes
Input Voltage
90 - 264 V
Input Frequency Range
50/60 Hz
Input Current
9A @ 115V, 5A @ 230V
MTBF
>100,000 Hours
Approvals
CB
Dimensions
150*86*140mm
Weight
2.05KG

Model

Brand
HUNTKEY
Series
FX
Model
FX500SE
Model Name
HK600-33PP

Spec

Type
ATX 12V v2.2 / EPS 12V v2.92
Power Rating
500W
Peak Power
610W
PFC
Active
+12V Rails
2
SLI
Ready
CrossFire
Ready
Modular
No
Power Good Signal
100-500ms
Hold-up Time
17ms min.
Efficiency
> 90%
Energy-Efficient
80+ Platinum certified
MTBF
>100,000 Hours
Approvals
CB

Input

Input Voltage
90 - 264 V
Frequency Range
50/60 Hz
Input Current
9A @ 115V, 5A @ 230V

Output

+3.3V Max. Current
18A
+5V Max. Current
18A
+12V1 Max. Current
21A
+12V2 Max. Current
22A
+12V3 Max. Current
NONE
+12V4 Max. Current
NONE
+12V5 Max. Current
NONE
+12V6 Max. Current
NONE
-12V Max. Current
0.3A
+5VSB Max. Current
2.5A

Connector

Main Connector
20+4 Pin
12V Power Connector
1 x 4+4 Pin ATX/EPS 12V
PCI-Express Connector
1 x 6 Pin, 1 x 6+2 Pin
SATA Power Connector
5
Floppy Connector
1

Fans

Fans Total Quantity
1
Top Fans Size
120mm
Top Fans Bearing Type
Sleeve
Top Fans LED
NONE
Top Fans RPM
1500
Top Fans Noise Level
22db
Rear Fans Size
NONE
Rear Fans Bearing Type
NONE
Rear Fans LED
NONE
Rear Fans RPM
NONE
Rear Fans Noise Level
NONE

Protection

Over Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Under Voltage Protection
Yes
Over Current Protection
Yes
Over Power Protection
Yes
Over Temperature Protection
Yes

Feature

Features
FX500W is fully compliant with 80+ Platinum, addressing a growing market demand for powerful single rail PSU, it features powerful 12V output delivery (with up to 42A on the 12V rail), power up most high end VGAs at greatly quiet operation. No doubt it is specially designed for hardcore gamers who desire extremely high efficiency and high-definition image display.1. 80Plus Platinum certified –up to 92% efficiency at typical load;2. Complies with Intel ATX 12V V2.31&EPS 12V V2.92;3. Full range Input voltage 90~264V;4. Active PFC(PF>0.99);5. Erp Lot6 Ready! A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode;6. Japan made Bulk capacitors and solid state capacitors for extreme environment;7. LLC resonance circuit with DC-DC converter module for extremely stable Performance;8. The fan is smartly started or stopped when change in temperature is detected optimizing the cooling system and minimizing noise.;9. Excellent voltage regulation(+12V voltage regulation about +/-1%)excellent performance for your hardware;10. Powerful +12V output delivery (up to 90% power available on +12V rail) for extreme gamer only;11. Multiple protections (OVP,UVP, OPP,OTP,SCP) prevent damage from accident.

Dimensions & Weight

Dimensions
150*86*140mm
Weight
2.05kg

Manufacturer Warranty

Labor
2years

Quick Info
