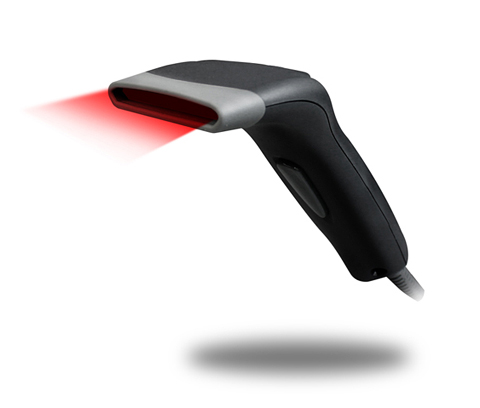

Adesso NuScan 1200 Handheld Linear Image Barcode Scanner

  • Light Source: 660 nm visible LED
  • Depth of Field: 0.78 inches
  • Scan Speed: 100 scans per second
  • Pin It
  • Email this page
ICON Loading...
NuScan 1200

Adesso NuScan 1200 Handheld Linear Image Barcode Scanner

Model Interface Application Platform
NuScan 1200U USB Windows® 8 / 7 / Vista / XP / 2000 & Mac® OS X

The NuScan 1200 Handheld Linear Image Barcode Scanner is one of the most reliable business tools in its class. Manufactured for superior durability and ergonomic design for comfort and ease of use, the NuScan 1200 simply plugs between your keyboard and PC with USB connection, the NuScan 1200 is the right scanner for you. The scanner automatically sends data to your active application so that you can expedite data gathering. This is perfect for retail, point of sale, or any repetitive application where time and accuracy are important factors in making your business succeed.

Features
NuScan 1200



Fast Scan Rate
EasilyBuilt with Proprietary Ultrascan Decoding and Advanced Image Capturing Technologies, the NuScan 1200 is fully capable of scanning 150 scans per second. This allows you to easily and instantly transfer your barcode data into your computer with superior success.


NuScan 1200



Plug & Play Connection
Plug & Play with USB interface. No driver required. Compatible with Windows and Mac.


NuScan 1200



Shock Resistance
Built to be lightweight but tough; tested to withstand 5ft (1.5m) drops.


Specifications
NuScan 1200 NuScan 1200 NuScan 1200

Operational Specifications

  • Light Source: 625nm Visible LED
  • Optical Sensor: 2500 pixel linear sensor
  • Depth of Field: 2in. (50mm)
  • Microprocessor: 32-bit
  • Scan Rate: 150 scans per second
  • Minimum Bar Width: 3 mil (Code 39, PCS=60%)
  • Print Contrast: Min. 25% @ UPC/EAN 100%
  • Indicators (LED): Green / Blue LED
  • Alert Operation: Programmable tone & beep time
  • System Interfaces: USB

Physical Specifications

  • Dimensions: 6.5 x 2.9 x 2.1" (166 x 73 x 54mm)
  • Weight: 3.5oz (100g)
  • Cable Length: 6ft (1.8m)

Electrical Specifications

  • Input Voltage: 5VDC ±5%
  • Standby Current: 55mA typical
  • Operating Current: 90mA (AVG), 150mA (max.)

Environmental Specifications

  • Operating Temperature: 23 - 113°F (-5 - 45°C)
  • Humidity: 5 - 95% Relative Humidity (non-condensing)
  • Shock: Designed to withstand 1.5m drops

Supported Symbologies

  • 1D Barcode: Addendum 2 of 5, Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, EAN-99, EAN-Velocity, Industrial 2 of 5, Interleaved 2 of 5, ISBN / ISSN, JAN-8, JAN-13, MSI, RSS Limited, RSS Expanded, UPC-A, UPC-E, China Postage

System Requirements

  • Windows® 8 / 7 / Vista / XP / 2000 & Mac® OS X
    icon
  • USB port

Learn more about the Adesso NuScan 1200

General

Brand
Adesso
Model
NuScan 1200
Part#
NUSCAN1200U
Form Factor
Handheld
Connectivity
Corded
Scan Engine
1D Linear Imager

Connectivity

Interfaces Supported
USB

Scan Performance

Light Source
625 nm Visible LED
Depth of Scan Field
2 in (50 mm)
Width of Scan Field
3 mil (Code 39, PCS=60%)
Scan Speed
100 sps
Print Contrast Ratio (Minimum)
25% @ UPC/EAN 100%

Electrical

Input Voltage
5 VDC ± 5%
Current
55 mA (typ.)
90 mA (AVG)
150 mA (max.)

Mechanical

Dimensions
12.20" x 8.50" x 2.40"
Weight
1.20 lbs.

Features

Features
Fast Scan Rate
EasilyBuilt with Proprietary Ultrascan Decoding and Advanced Image Capturing Technologies, the NuScan 1200 is fully capable of scanning 150 scans per second. This allows you to easily and instantly transfer your barcode
data into your computer with superior success.

Plug & Play Connection
Plug & Play with USB interface. No driver required. Compatible with Windows and Mac.

Shock Resistance
Built to be lightweight but tough; tested to withstand 5ft (1.5m) drops.
Drop
6 feet
Antimicrobial
No

OS Supported

Operating Systems Supported
Windows 8, 7, Vista, XP & 2000 & Mac

Quick Info
