Item#: N82E16833156308

TRENDnet Wireless N 450 Mbps 18 dBm, WDS and Repeater, TEW-690AP

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • High performance 450Mbps wireless n access point
  • Extend your wireless network with Wireless Distribution System (WDS) technology
  • Supports 64/128-bit WEP, WPA/WPA2-PSK, and WPA/WPA2-RADIUS

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

TRENDnet N450 Wireless Access Point

TEW-690AP

TEW-690AP (Version v1.0R)

  • Access Point, WDS, and Repeater modes
  • Ultra fast 450Mbps wireless n speed and coverage
  • High performance Gigabit LAN port
  • Connect computers with one-touch Wi-Fi Protected Setup (WPS)
OVERVIEW

TRENDnet’s N450 Wireless Access Point, model TEW-690AP, supports Access Point, Wireless Distribution System (WDS), and Repeater mode functionality. Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna, generates a maximum theoretical wireless throughput of 450Mbps and exceptional wireless coverage.


A Gigabit Ethernet port maintains high performance wired connections. Wi-Fi Protected Setup (WPS) integrates other WPS supported devices at the touch of a button. Advanced features include 4 SSIDs per wireless band, different encryption for each SSID, WMM Quality of Service data prioritization, WPA2-RADIUS encryption, and a convenient on/off power switch.

TEW-690AP

  • High performance 450Mbps wireless n access point
  • 1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port
  • 1 x WPS button
  • 1 x Reset button
  • On/off power switch (EU Version)
  • Diagnostic LEDs
  • Wi-Fi compliant with IEEE 802.11n standard
  • Backwards compatible with IEEE 802.11g/b devices
  • Features Wireless Distribution System (WDS) and Repeater modes for wireless network expansion
  • Supports 64/128-bit WEP, WPA/WPA2-PSK, and WPA/WPA2-RADIUS wireless security
  • Mac filter feature for added security
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
  • Multiple Input Multiple Output (MIMO) antenna technology
  • Define up to 3 additional SSIDs
  • One touch wireless connection using the WPS button
  • Maximum reliability, throughput, and connectivity with automatic data rate switching
  • Easy user setup wizard and intuitive Web browser configuration
  • Coverage of up to 100 meters indoor (328ft.) and 300 meters outdoor (948ft.) *
  • 3-Year limited warranty

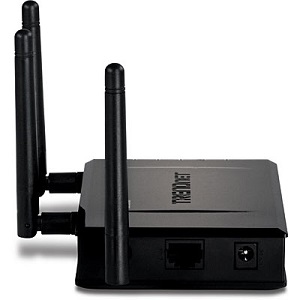

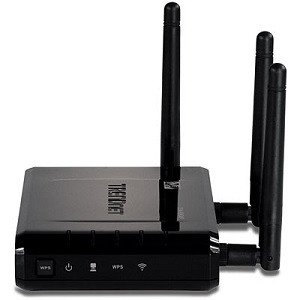

Gallery
TEW-690APTEW-690AP
TEW-690APTEW-690AP
SPECIFICATIONS
Hardware

Standards

  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n

Interface

  • 1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port

Access Control

  • 64 MAC Address Filter Entries

LED Indicator

  • Wireless, LAN, WPS, Power

Buttons

  • Reset button – restores factory default settings
  • WPS button – enables WPS function
  • On/off power (EU version)

Power

  • 12VDC 1A power adapter

Power Consumption

  • 4.5 Watts (max)

Dimensions (L x W x H)

  • 4.7 x 3.3 x 1.0 in. (120 x 84 x 24mm)

Weight

  • 5.6oz (160g)

Temperature

  • Operating: 32 - 104°F (0 - 40°C)
  • Storage: -4 - 140°F (-20 - 60°C)

Humidity

  • Max. 90% (non-condensing)

Certifications

  • CE, FCC
Wireless

Frequency

  • 2.412 - 2.472GHz

Antenna

  • 3 x 2dBi Detachable antennas

Data Rate (Auto fallback)

  • 802.11b: up to 11Mbps
  • 802.11g:up to 54Mbps
  • 802.11n: up to 450Mbps

Output Power

  • 802.11b: 18dBm (typical)
  • 802.11g: 15dBm (typical)
  • 802.11n: 15dBm (typical)

Receiving Sensitivity

  • 802.11b: -84dBm (typical)
  • 802.11g: -72dBm (typical)
  • 802.11n: -69dBm (typical)

Encryption

  • 64/128-bit WEP , WPA/WPA2-PSK, WPA/WPA2-RADIUS

Channels

  • 1-11 (FCC), 1-13 (ETSI)

What's in the Box

TEW-690AP
  1. TEW-690AP
  2. CD-ROM (Utility and User’s Guide)
  3. Multi-Language Quick Installation Guide
  4. 1 x Cat. 5 Ethernet Cable - 2 ft. (0.6m)
  5. Power Adapter (12V DC, 0.5A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.


Learn more about the TRENDnet TEW-690AP

Model

|
Brand
TRENDnet
Model
TEW-690AP

Details

|
Standards
IEEE 802.11b/g/n
Wireless Data Rates
Up to 450Mbps
Security
64/128-bit WEP , WPA/WPA2-PSK, WPA/WPA2-RADIUS
Frequency Band
2.412 GHz - 2.472 GHz
Channels
11 Channels (US, Canada) 13 Channels (Europe)
Antenna
3 x 2dBi detachable antennas
Transmitted Power
802.11b: 18dBm (typical)
802.11g: 15dBm (typical)
802.11n : 15dBm (typical)
Receiver Sensitivity
802.11b: -84dBm (typical)
802.11g: -72dBm (typical)
802.11n: -69dBm (typical)
Operating Range
Indoor: Up to 100m, Outdoor: Up to 300m
Interface
Ethernet Port
LEDs
Wireless, LAN, WPS, Power
Buttons
Reset button – restores factory default settings
WPS button – enables WPS function
On/off power (EU version)
WAN Ports
1 x 10/100/1000M
Power Adapter
12V DC 1A power adapter

Features

|
Features
Features Wireless Distribution System (WDS) and Repeater modes for wireless network expansion
Mac filter feature for added security
Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
Multiple Input Multiple Output (MIMO) antenna technology
Define up to 3 additional SSIDs
One touch wireless connection using the WPS button
Maximum reliability, throughput, and connectivity with automatic data rate switching
Easy user setup wizard and intuitive Web browser configuration

Dimensions & Weight

|
Dimensions
4.7" x 3.3" x 1.0"
Weight
0.35 lbs.

Environmental

|
Temperature
0°C - 40°C (32°F - 104°F)
Humidity
90% Maximum, Non-Condensing

Plug Standards

|
Electrical Outlet Plug Type
See Details
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
