Item#: 9SIA1ZC0K71132

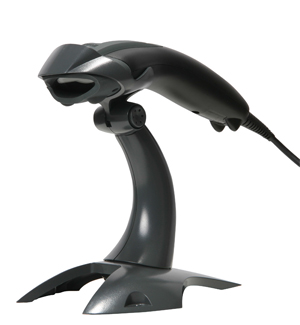

Honeywell 1400G2D-2 Voyager 1400g Series 2D Area-Imaging Scanner (Scanner Only)

  • 2D Area Imager reads all standard 1D, PDF417, and 2D symbologies
  • Capture barcodes from screens and displays
  • Interface cable sold separately
  • Black
  • Pin It
  • Email this page
ICON Loading...
Voyager 1400g

2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.

Enterprises that recognize the importance of upgrading to areaimaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.

Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning—at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.

With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured area-imaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.

The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.

Features
Voyager 1400g
  • Reliable Data Collection: Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes (2D decoding available in select models)
  • Remote MasterMind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
  • Future Proof: Delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device
  • Flexible Licensing Solution: Meets diverse scanning requirements by offering models with basic functionality — purchase software licenses to enable additional functionality as the need arises
Voyager 1400g Technical Specifications
Mechanical
Dimensions (L x W x H) 7.1 x 2.6 x 1.7 in. (180 x 66 x 43mm)
Weight 4.2oz (119g)
Electrical
Input Voltage 4.0 to 5.5 VDC
Operating Power 2W (400mA @ 5 VDC)
Standby Power 0.45W (90mA @ 5 VDC)
Host System Interfaces USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Environmental
Operating Temperature 32 - 104°F (0 - 40°C)
Storage Temperature -40 - 140°F (-40 - 60°C)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 30 5' (1.5m) drops to concrete
Environmental Sealing IP42
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (640 x 480 pixel array)
Motion Tolerance Up to 4 in./s (10cm/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal 42.4°; Vertical: 30.8°
Symbol Contrast 35% Minimum reflectance difference
Pitch, Skew 60 Degrees, 70 degrees
Decode Capability 1400g1D: All standard 1D symbologies
1400gPDF: All standard 1D and PDF417 symbologies
1400g2D: All standard 1D, PDF417 and 2D symbologies
Warranty 5-Year factory warranty

Learn more about the Honeywell 1400G2D-2

General

Brand
Honeywell
Series
Voyager 1400g
Model
1400G2D-2
Form Factor
Handheld
Connectivity
Corded
Scan Engine
2D Area Imager

Connectivity

Included Cables
Scanner Only - No Cable
Interfaces Supported
USB, RS-232, Keyboard Wedge, IBM 46xx

Scan Performance

Pitch
±60 degree
Print Contrast Ratio (Minimum)
35%

Electrical

Input Voltage
4.0 to 5.5 VDC
Power Consumption
Operating Power: 2W (400mA@5 VDC)
Standby Power: 0.45W (90mA@ 5VDC)

Mechanical

Color
Black
Dimensions
1.7" x 7.1" x 2.6"
Weight
0.26 lb.

Features

Features
Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 0% to 95% relative humidity, non-condensing

Drop: Designed to withstand 30 1.5 m (5') drops to concrete

Environmental Sealing: IP42

Light Levels: 0 to 100,000 lux (9,290 foot-candles)

Scan Pattern: Area Image (640 x 480 pixel array)

Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus

Scan Angle: Horizontal 42.4°; Vertical: 30.8°

Symbol Contrast: 35% minimum reflectance difference

Pitch, Skew: 60°, 70°
Drop
5 feet

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Honeywell 1400G2D-2

There are no reviews yet... do you own this product? Write a Review
