Item#: N82E16838131046

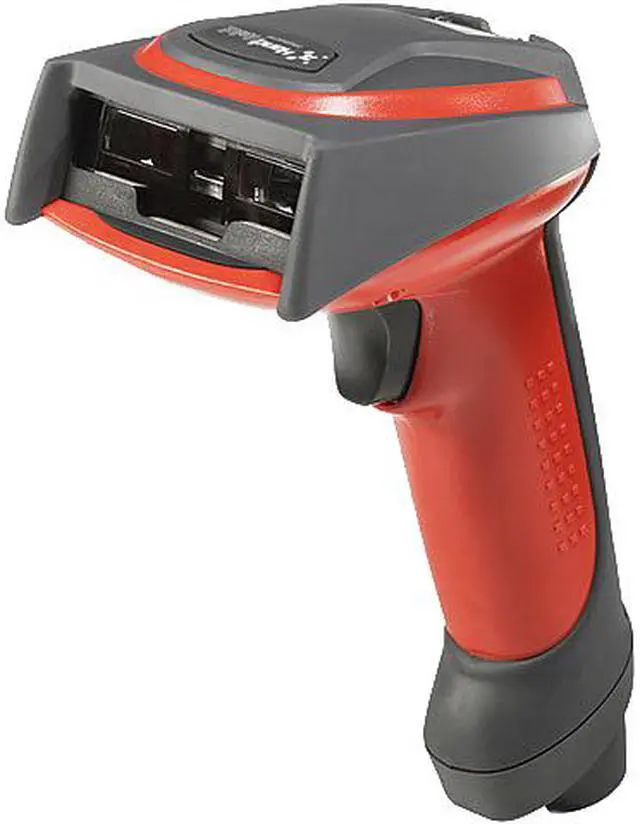

Honeywell 3800ISR050-0F00E 3800i Industrial Linear Imager

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 1D
  • CCD
  • USB kit
  • Includes USB cable and user guide
  • Rugged

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
3800i

Industrial-Grade Linear-Imaging Scanner

3800i

The 3800i hand-held industrial image readers are the first industrial class readers to bring you Honeywell’s industry-leading image technology. This technology allows you to read bar codes at ranges up to 82? (208 cm). In real world applications, this extended read range means less climbing and reaching, and more operator productivity.

Based on proprietary image technology, the 3800i picks up your bar code image and processes its content 270 times per second. In a fraction of a second, the Honeywell digital image processor quickly and easily determines the data content and sends it to your host computer. This proprietary technology quickly and securely identifies poor quality symbols, and still delivers snappy performance.

We are so confident the 3800i image reader will withstand your industrial applications that we have backed it by a solid warranty. Every 3800i comes to you with a three-year warranty against defects. Shock absorbing rubber overmold on the case and a sealed optics module ensure this device will survive dozens of 6.5´ (2 meter) drops to concrete. Although we do not expect you to treat your reader this way, we know it will survive many years of accidental abuse.

Your industrial applications often take you into environments that challenge many devices. Your loading dock has extreme temperature variations, dirt, dust, and rain that will stress many bar code scanners. The 3800i is environmentally sealed to an IP54 rating, which prevents dust and water from entering the units and degrading performance. Sometimes you need to use this device outdoors during winter or other freezing temperature conditions. This imager withstands applications that subject it to constant -22°F (-30°C) temperatures and still survives.

For reading in applications that exhibit high ambient light, the 3800i can be ordered with an aiming beam, which offers true point and shoot performance without moving laser optics. This option allows the operator to reliably find and scan the code.

Features
  • Superior Read Range: Imaging technology now extends the performance range out to 82? (208 cm) on linear codes, eliminating the need to reach and climb to scan codes
  • Durable: There are no moving parts to wear out and Honeywell backs this with an industry-leading three-year warranty, ensuring reliable performance year after year with no downtime
  • Easy-to-Use: True point and shoot hand-held ergonomics easily fits oversized gloved hands, while intuitive aiming means operators will become productive quickly
  • Rugged Packaging: An impact-absorbing, shockresistant housing withstands fifty 6.5´ (2 meter) drops, and is sealed to prevent dust, moisture, and other contaminants from entering the scanner—designed to survive the most demanding industrial applications
  • Fast and Aggressive Decode: Even on poorly printed or damaged codes, the 270 scans per second digital image logic is over six times faster than other technologies, allowing users to spend less time trying to re-scan poor codes and speed up the work process
3800i Technical Specifications
Mechanical
Dimensions (LxWxH) 135 mm x 81 mm x 163 mm (5.3? x 3.2? x 6.4?)
Weight 213 g (7.5 oz)
Electrical
Input Voltage 4.5 - 14 VDC
Operating Power 1.2 W (235 mA @ 5 V); 1.7 W (142 mA @ 12 V)
Standby Power 340 mW (68 mA @ 5 V); 590 mW (49 mA @ 12 V)
Host System Interfaces USB, TTL Level RS232, True RS232, Keyboard Wedge, IBM 46xx (RS485), Light Pen (Wand) Emulation
Environmental
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140F)
Humidity 0 to 95% relative humidity, non-condensing
Drop Designed to withstand 2.0 m (6.5') drops
Environmental Sealing IP54
Light Levels 70,000 Lux
Scan Performance
Scan Pattern Linear Image (CCD: 3648 pixels)
Scan Speed 270 scans per second
Motion Tolerance 5 cm/s (2 in/s) with 13 mil UPC at optimal focus
Scan Angle Horizontal: 47°
Print Contrast 20% minimum reflectance difference
Pitch, Skew 65°, 65°
Decode Capabilities Reads standard 1D and GS1 Databar symbologies.
Warranty 3 year factory warranty

Learn more about the Honeywell 3800i

General

|
Brand
Honeywell
Model
3800i
Part Number
3800ISR050-0F00E
Form Factor
Handheld
Connectivity
Corded
Scan Engine
1D Linear Imager

Connectivity

|
Included Cables
Includes USB cable and user guide
Interfaces Supported
USB, RS-232, Keyboard Wedge, IBM 46xx, Wand Emulation
Cordless Type
Handheld Barcode Scanner

Scan Performance

|
Light Source
630 nm visible laser diode
Resolution
7.5 mil. at 9 in. (22.9 cm) distance
Width of Scan Field
15 mil. code, 15 in. (38.1 cm) from nose, 10 in. (25.4 cm) wide
Pitch
±65 degree
Yaw
±65 degree
Scan Speed
Up to 270 scans per second
Print Contrast Ratio (Minimum)
20%

Electrical

|
Input Voltage
4.5 - 14Vdc at scanner

Mechanical

|
Color
Orange
Dimensions
5.30" x 6.40" x 3.20"
Weight
0.47 lb.

Features

|
Ruggedness
Rugged
