Item#: N82E16838209171

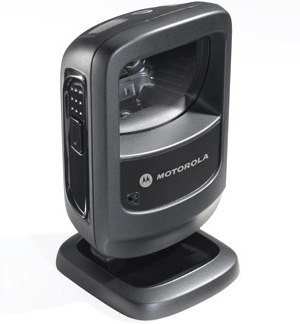

Motorola DS9208-SR0000WNNWW Omnidirectional Hands-Free Presentation Imager Barcode Scanner

  • Presentation
  • USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge
  • Scanner Only - No Cable
  • Email this page
ICON Loading...

DS9208

Omnidirectional Hands-Free Presentation Imager
DS9208

Affordable Next Generation Scanning Technology for Today's Mobile World
Whether you need to scan printed bar codes on paper labels or mobile bar codes on the screen of a mobile phone, with the Motorola DS9208, you'll be ready. You get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. And the DS9208 provides all the features you need to keep your workers productive: industry-leading scanning speed; true point-and-shoot scanning simplicity — no need to align bar code and scanner; and hands-free and handheld flexibility.

Boost Customer Srevice, Loyalty, and Revenues with Mobile Bar Codes
Convenience is driving your customers to store boarding passes, event tickets, mobile gift and loyalty cards as well as mobile coupons on their cell phones, where they are always available and easy to find — unlike their physical counterparts. But if you can't scan the mobile bar codes, convenience turns into a hassle that could result in a lost customer. With the DS9208, you are ready to complete the mobile bar code transaction chain, able to scan virtually any mobile bar code on any type of display — protecting service levels and customer loyalty.

A "Go Anywhere" Design and Tiny Footprint
Maybe your retail store has a trendy décor. Or maybe your counter space is extremely limited. The DS9208 sports a new sleek contemporary design that is at home in either environment. And with the most compact footprint in this class, the DS9208 can fit in the most space constrained areas — from the POS in a boutique to the ticket window at a train station.

A Smart Investment and a Low Total Cost of Ownership (TCO)
The DS9208 not only helps you make money, it helps you save money. The device is so intuitive that training — and training-related costs — are virtually eliminated. Right out of the box, the DS9208 can read the most common 1D and 2D bar codes on a wide variety of surfaces — from paper labels to cell phone displays. Integrated Electronic Article Surveillance (EAS) functionality eliminates the need to purchase and manage a standalone EAS system. Simplify and reduce the cost of managing your DS9208 scanners with two Motorola scanner management tools, RSM and 123Scan2. And with our unique support program, Service from the Start Advance Exchange Support, you can count on next-business-day device replacement — no questions asked — providing the uptime you need to keep business running smoothly.

Features
DS9208
  • Scans 1D, 2D and PDF417 Bar Codes on Paper, Mobile Phones and Computer Displays
    Scan virtually any bar code on any medium; supports the technology your customers are embracing — mobile bar codes
  • New Small Footprint
    Most compact device in its class, fits in the most space constrained areas, yet offers flexibility of a much larger scanner — the large high-mounted exit window enables scanning of even taller items
  • New Sleek Design
    Perfect in the most design conscious environments
  • Handheld and Hands-Free Modes
    Dual mode functionality saves time; keeps lines moving and minimizes wait times; eliminates the need to lift heavy items, reducing the opportunity for injury
  • Picklist Mode
    Select and scan a single bar code from a bar code menu or "picklist" — ideal for items that are too small for bar code labels such as nuts and bolts in a hardware store to tiny cosmetic brushes
  • Driver's License Parsing (Optional)
    Captures the information you specify from driver's licenses to enable fast auto-population of loyalty and credit card applications, increasing enrollment
  • Multi-Code Mode
    Allows simultaneous scanning of a group of bar codes and reports only the selected bar code(s) in a pre-selected order.
  • Industry-First Spherical Exit Window
    Improves scanning performance by minimizing stray light and reducing reflections to the imaging sensor
  • Dual LEDs Plus Programmable Beeper Volume, Frequency and Duration
    Protects productivity in noisy environments, such as theaters, airports and restaurants by providing both visual and audible confirmation of successful scans; convenient side trigger allows users to adjust beeper volume on-the fly
  • Omnidirectional Scanning
    Eliminates the need to align bar code and scanner
  • Lightweight Ergonomic "Sure Grip" Design
    A secure grip helps prevent drops when utilized in handheld mode
  • Supports All Common Interfaces
    Easy integration with your existing technology environment; easily migrate to new hosts
  • Five-Foot (1.5m) Drop Spec and Recessed Exit Window
    Increased durability: can endure drops; prevents nicks and scratches on the exit window that could degrade performance
  • Integrated EAS Support (Optional)
    Eliminates the need to purchase and maintain an additional system at the register; simplifies the checkout processes; eliminates missed tags, erroneous alarms and embarrassed customers
  • Integrated Adjustable Stand
    Eliminates the need to purchase and manage separate accessories
  • Compatible with 123Scan and Remote Scanner Management (RSM)
    Reduces management time and cost, from initial configuration to day-to-day management
DS9208 DS9208
DS9208
Specifications
Physical Characteristics
Dimensions (H x W x D): 5.512 x 3.232 x 3.150 inches (14.0 x 8.21 x 8.0cm)
Weight: 9.5oz (269g)
Voltage and Current Idle: 5VDC ± 10% @ 150ma average
Scanning: 5VDC ± 10% @ 230ma average
Color: Midnight Black / White
Performance Characteristics
Light Source: Aiming pattern: single dot, 625nm LED
Illumination: 630nm LEDs
Imager Field of View 46° Horizontal x 29.5° Vertical
Print contrast: 25% minimum reflective difference
Roll 360°
Pitch ± 65°
Yaw ± 60°
Graphics Format
Support
Images can be exported as Bitmap,
JPEG or TIFF
Image Transfer Speed USB 2.0: Up to 12Mbps
RS-232: Up to 115Kbps
Image Transfer Time Typical USB application is ~0.2 seconds
with a compressed JPEG of 100kb
Image Quality 120ppi on a 4 x 6in. (10.2 x 15.2cm)
document @ 4.7in. (11.9cm)
Interfaces supported: USB, RS-232, RS-485 (IBM 46xx Protocols),
Keyboard Wedge

Learn more about the Motorola DS9208-SR0000WNNWW

General

Brand
Motorola
Series
DS9208 Series
Model
DS9208-SR0000WNNWW
Form Factor
Presentation
Connectivity
Corded
Scan Engine
2D Area Imager

Connectivity

Included Cables
Scanner Only - No Cable
Interfaces Supported
USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge

Scan Performance

Light Source
Aiming pattern: single dot, 625nm lED
Illumination: 630nm lEDs
Imager Field of View
46 degree Horizontal x 29.5 degree Vertical
Resolution
Minimum resolution:
Code 39 - 4 mil
UPC - 7.8 mil (60%)
PDF417 - 5 mil
Datamatrix - 7.5 mil
Qr Code - 7.5 mil
Pitch
+/- 65 degree
Roll
+/- 360 degree
Yaw
+/- 60 degree
Scan Speed
Up to 90 in./2.3 m per second
Decoding Capability
1-D
UPC/EaN (UPCa/UPCE/UPCE1/EaN-8/EaN-13/JaN-8/JaN-13 plus supplementals, ISBN (Bookland),ISSN, Coupon Code), Code 39 (Standard, Full aSCII, trioptic, Code 32 (Italian Pharmacode), Code 128 (Standard, Full aSCII, UCC/EaN-128, ISBt-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, Iata, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (omnidirectional, truncated, Stacked, Stacked omnidirectional, limited, Expanded, Expanded Stacked)

PDF417 (and variants)
PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-a, CC-B, CC-C)

2-D
TlC-39, aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), Qr Code (Standard, Inverse, Micro)

Postal
U.S. Postnet and Planet, U.K. Post, Japan Post, australian Post, Netherlands KIX Code, royal Mail 4 State Customer, UPPU FICS 4 State Postal, USPS 4CB

Electrical

Input Voltage
5 +/- 10% VDC
Current
Idle: 150ma average
Scanning: 230ma average
Regulatory
Electrical Safety
Ul6950-1, CSa C22.2 No. 60950-1:2nd ed.,
EN60950-1: 2nd ed. + a11: 2009
IEC60950-1: 2nd ed.

LED Safety
IEC / EN 60825-1: 2001 Class 1M lED,
EN 62471: 2008
IEC 62471: 2006

EMI/rFI
FCC CFr47 Part 15 Class B: 2007,
ICES-003 Issue 4 :2004 Class B,
EN 55022: 2006 + a1: 2007,
EN 55024: 1998 +a1: 2001 + a2: 2003
aS/NZS CISP

Mechanical

Color
White
Dimensions
5.512 in. H x 3.232 in. W x 3.150 in. D(14.0 cm H x 8.21 cm W x 8.0 cm D)
Weight
9.5 oz./269 g

Features

Features
Scans 1D, 2D and PDf417 bar codes on paper, mobile phones and computer displays

New small footprint

New sleek design

Handheld and hands-free modes

Picklist mode

Multi-code mode

Industry-first spherical exit window

Dual lEDs plus programmable beeper volume, frequency and duration

Omnidirectional scanning

Lightweight ergonomic 'sure grip' design

Supports all common interfaces

5 ft./1.5 m drop spec and recessed exit window.

Integrated adjustable stand

Compatible with 123Scan2 and Remote Scanner Management (RSM)
Drop
Withstands multiple 5 ft./1.5 m drops to concrete
Ruggedness
General Purpose

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
