The Next Generation in Live View AF
Dual Pixel CMOS AF
The EOS 70D features Canon's all-new Dual Pixel CMOS AF, a revolutionary leap forward in speed and accuracy that unlocks the potential of Live View shooting. This game-changing technology will forever change what is possible with a DSLR camera.
Shoot Video Like a Camcorder
The benefits of the groundbreaking Dual Pixel CMOS AF are clearly evident in video shooting, where bringing scenes and subjects into focus is a critical element of the final composition. On the EOS 70D, Dual Pixel CMOS AF helps ensure focus is achieved naturally and precisely, even when switching between subjects. And, combined with the predictive power of Movie Servo AF, subjects in motion are smoothly and consistently tracked – once the EOS 70D locks focus, it doesn't let go. Plus, with the shallow depth-of-field afforded by EOS optics, your video gains a cinematic ambience.
Compositional Freedom, Quick and Accurate Live View Focus
For stills, Dual Pixel CMOS AF makes Live View AF precise and faster than ever, freeing the photographer to take advantage of the freedom of angle afforded by the camera's Vari-angle LCD monitor. Whether capturing images of athletes on the field or kids in the park – with a tripod or handheld and operated from a number of angles and positions – crisp focus can be obtained nearly instantly across a wide shooting area, especially useful for those spontaneous or fleeting shots. And, when composing and shooting in Live View mode, the image, exposure and chosen effects can be previewed before shooting, ensuring better accuracy, increased comfort, and more control from the start.
Compatible with 103 Canon EF Lenses
103 Canon EF lenses are able to fully realize the benefits of Dual Pixel CMOS AF. Compatible lenses greatly expand creative and compositional possibilities so users can enjoy a wide range of endeavors made possible through various lenses whether shooting still images or video.
The Genius of Pixel Based AF
Dual Pixel CMOS AF is a cutting-edge Canon technology, made possible by a sophisticated redesigning of the CMOS sensor. Traditionally, image sensors have one photodiode per pixel, but the CMOS sensor on the EOS 70D has two photodiodes per pixel, enabling each pixel on the sensor to both perform phase-difference detection autofocus and capture light – a first for EOS cameras. With phase-difference detection AF, autofocus is achieved quickly and easily on the camera. This unique AF system enables autofocus on 80% of the image plane, vertically and horizontally, and helps ensure virtually no loss in image quality.
Sophisticated Wireless System
The Simplicity and Convenience of Wireless Technology, Built-In
The new EOS 70D incorporates cutting edge wireless technology right into its compact design. The camera's exposure settings, such as aperture, shutter speed and ISO, focus, and shutter can be operated wirelessly using an iOS or Android smartphone* with the free Canon EOS Remote app**. Using a smartphone with the EOS Remote app** installed, you can shoot remotely from a distance, even in Live View mode, for those difficult-to-capture shots; you can also review images on the EOS 70D without having to take it out of the bag, and easily transfer and save images directly from the camera to a smartphone. Full DLNA (Digital Living Network Alliance) compatibility means easy sharing between the EOS 70D and other DLNA products, like HDTVs, smartphones and more. Still images can even be transferred between two wireless-enabled Canon cameras over a Local Area Network (LAN). Images and video can be uploaded instantly to CANON iMAGE GATEWAY# for easy sharing on social networking sites, and photos can even be printed on a wireless PictBridge certified printer without the need for a PC. Remarkably, the EOS 70D has all of these wireless features without the need for any additional accessories; they're built right in!
The Speed You Need
High Speed Continuous Shooting - Up to 7.0fps
Capable of shooting up to 7.0fps during continuous shooting, the EOS 70D is a perfect camera for quick action. Canon's remarkable shutter, combined with speedy, sophisticated electronics, ensures instant response and performance. A rapidly occurring scene can be captured moment by moment, second by second, so that even the briefest of opportunities are captured in perfect clarity.
True HD Performance in Your Hands.
EOS Full HD Movie Mode with Movie Servo AF and 3-10x Digital Zoom at Full HD Resolution
The EOS 70D captures HD video with an impressive level of sophistication, offering phenomenal performance on a DSLR camera. It offers both All-I (UHS-I memory card is required) and IPB compression, supports H.264/MPEG-4 AVC High Profile, and automatically splits files greater than 4GB (FAT specifications) for extended recording without interruption. It offers the option of time coding during recording only (Rec Run) or at all times (Free Run), which is useful for multi-camera shoots. It also features improved sound recording adjustment capabilities; the EOS 70D has an internal stereo microphone for enhanced audio capture and a wind filter feature to reduce wind noise when shooting outdoors. Sound recording levels can be manually (up to 64 different levels) or automatically controlled, while a built-in attenuator is also provided to reduce audio clipping. For more advanced audio recording, the EOS 70D is compatible with many third-party electric condenser microphones with a 3.5mm diameter plug. The EOS 70D also boasts the advanced Movie Digital Zoom, allowing you to magnify the center of the image by approximately 3x–10x when Full HD (1920 x 1080) resolution is set.
The EOS 70D features Movie Servo AF for continuous autofocus tracking of moving subjects while recording video. Combined with the camera's Dual Pixel CMOS AF system, even fast subjects remain in sharp focus. Autofocus is smooth and continuous, and quiet when recording video using one of Canon's STM lenses. The revolutionary performance of Canon's Dual Pixel CMOS AF System, the predictive power of Movie Servo AF, and the pleasing depth-of-field provided by the EOS 70D's optics make it possible to accomplish stunning, cinematic video capture, easily.
With the Video Snapshot feature, the EOS 70D can capture short video clips (of 2, 4 or 8 seconds) then combine them automatically into one video file as a snapshot or highlights "album." With no editing needed after shooting, the compiled video is perfect for sharing online or displaying directly on an HDTV via the camera's HDMI port. Additionally, stills can be recorded during video shooting simply by pressing the camera's shutter button. During playback, video clips in an album can be reordered or deleted.
Sharp and Clear, with Tactile Controls

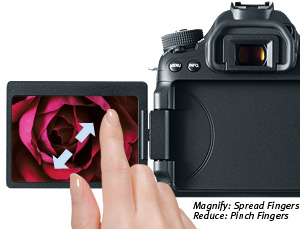

Vari-Angle Touch Screen 3.0-inch Clear View LCD Monitor II with Multi-Touch Operation and Touch AF
The EOS 70D comes with a Vari-angle Touch Screen 3.0-inch Clear View LCD monitor II for shooting videos and stills at a variety of angles, high or low, with up to 180° of rotation. Using capacitive technology similar to today's popular mobile devices, this screen is touch-sensitive and delivers intuitive touch panel operation. Two-finger touch gestures can be used for zooming or changing images. Menu and quick control settings can be accessed, and focus point and shutter release can be activated with the touch of a fingertip using Touch AF. Displaying fine detail (at approximately 1.04 million dots), this screen is perfect for composing and reviewing images. Thanks to a solid construction between the monitor's resin-coated cover and the liquid crystal display, reflections are minimized, and the display can be viewed, without glare, from any number of angles. The LCD's surface is treated with a smudge-resistant coating to minimize fingerprints and maintain a bright, clear image display.
Fast, Accurate, Phenomenal AF
19-Point All Cross-Type AF System (Including a High-Precision f/2.8 Dual Cross-Type AF Center Point)
The EOS 70D has a high-performance AF system that's ready for anything. The camera features 19 high precision cross-type AF sensors, all of which can be selected automatically or manually. With cross-type AF points placed throughout a wide area, the EOS 70D's AF system ensures amazing compositional flexibility whether shooting vertically or horizontally, and is superbly equipped to track the subject, even if movements are erratic or unpredictable. And with its high-precision f/2.8 dual cross-type AF center point, the EOS 70D delivers a whole new level of focus accuracy when shooting with lenses of f/2.8 or faster. The EOS 70D camera's AF modes can be customized to suit the situation, helping ensure reliable focus.
Sophisticated Composition, Simply
Intelligent Viewfinder with Superimposed LCD Display Provides Approximately 98% Field of View
The EOS 70D camera's Intelligent Viewfinder offers a sharp, bright, approximately 98% field of view with an approximate magnification of 0.95x, a viewing angle of 27.9° and a 22mm eyepoint. Featuring a new coating that reduces reflections and new construction that improves response in cold environments, the EOS 70D's Intelligent Viewfinder makes it simple to adjust and confirm settings without the risk of missing a beat. The Intelligent Viewfinder uses a transparent LCD to superimpose a customizable combination of focus points and gridlines directly over the image: it displays AF mode, AF points, electronic level, grid, alerts informing when white balance is being corrected and when Spot metering is enabled, and much more. With the EOS 70D's Intelligent Viewfinder, unlike with other cameras, the photographer has the choice of seeing shooting information or looking only at the scene in front of the camera. The ability to effectively erase all shooting data and turn it back on with the touch of a button gives the photographer the opportunity to concentrate simply on looking and composing the photograph without distraction, a great advantage in numerous shooting situations.
Amazing Effects for Dramatic and Gorgeous Results
High Dynamic Range (HDR)
With its High Dynamic Range (HDR) mode, the EOS 70D can merge three images of varying exposure in-camera and save them as one final image, capturing a broad range of shadow and highlight detail with stunning tonal range. Adjustable to cover a range of ±3 stops, HDR recording truly expands the parameters of the light and dark detail a camera can actually record, surprising viewers with the range of tones a photograph can accurately recreate.
Multiple Exposure Control
The EOS 70D offers a Multiple Exposure mode for film-like image creation with the convenience of in-camera processing. It offers two different compositing methods for proper exposure and composition: additive or average. Multiple exposure shots from 2 to 9 are stored as one final image and can be taken in both RAW and JPEG shooting modes. A RAW image previously captured by the EOS 70D (3:2 aspect ratio only) can be used as a starting point, and cumulative results can be observed and corrected in real time on the camera's LCD screen.
Handheld Night Scene Mode
Handheld Night Scene mode captures nightscapes with bright highlights and detailed dark areas, delivering results previously difficult without the use of a tripod. By shooting and combining four consecutive shots at a shutter speed fast enough to avoid camera shake, the EOS 70D's Handheld Night Scene mode makes dramatic nighttime photography simple.
HDR Backlight Control Mode
The EOS 70D camera's HDR Backlight Control mode ensures that backlit subjects are not recorded too darkly. By automatically shooting three consecutive shots at different exposures (underexposed, correctly exposed and overexposed) and combining the images, the final result maintains detail in both the shadow and highlight areas, ensuring the backlit subject is properly exposed.
Seven Creative Filters that can be Displayed in Real Time
To add to the fun and creative possibilities available with the EOS 70D, the camera has seven different Creative Filters that can dramatically alter the mood and visual effect of any particular scene. Creative Filters include Grainy Black and White, Soft Focus, Fisheye Effect, Toy Camera Effect, Miniature Effect, Art Bold Effect and Water Painting Effect. Each effect can be applied in three different levels (low, standard and strong), and easily previewed on the LCD panel in Live View. Since the filters can be applied to the image after shooting, it's easy to try several effects on the same shot during post-process.
Complex Functions Made Simple
Scene Intelligent Auto Mode
The EOS 70D features Scene Intelligent Auto mode, which incorporates a number of Canon technologies to deliver the best possible exposure. Joining Picture Style Auto, Automatic Lighting Optimizer, Automatic White Balance, Autofocus, and Automatic Exposure, Scene Intelligent Auto mode analyzes the image, accounting for faces, colors, brightness, moving objects, contrast, even whether the camera is handheld or on a tripod, and then chooses the exposure and enhancements that bring out the best in any scene or situation.
More Features for Increased Versatility.
Compatible with the Full Line of Canon EF and EF-S Lenses
The EOS 70D is compatible with all Canon lenses in the EF lineup, including compact and lightweight EF-S lenses, ranging from ultra-wide angle to super telephoto lenses and including the STM series optimized for video shooting. Canon lenses employ advanced optical expertise and micron-precision engineering to deliver outstanding performance and deliver beautiful results. Special technologies like Canon's Optical Image Stabilizer help to minimize the effect of camera shake, effectively adding up to four stops of light; STM lenses even feature a stepping motor for smooth and quiet continuous autofocus while capturing video. With an array of lenses perfect for travel, sports, still life and everything in between, photographers can truly maximize the quality and performance of their EOS 70D camera.
Multi Shot Noise Reduction
To enhance its already admirable high ISO shooting capabilities, the EOS 70D camera features an intelligent Multi Shot Noise Reduction tool that reduces noise even further than the camera's sensor and the DIGIC 5+ Image Processor do. With Multi Shot Noise Reduction activated, the camera takes four consecutive shots, merges and aligns them. This eliminates more noise than the camera's traditional Noise Reduction filter, with little or no apparent resolution loss. Moving subjects are even optimized to minimize subject blur! Thanks to this clever feature, high ISO shooting has never looked better.
Lens Aberration Correction
The EOS 70D features lens correction tools that compensate for lens characteristics that can affect overall image quality. The EOS 70D camera's Peripheral Illumination Correction feature corrects light falloff in the corner of the image according to the characteristics of the lens being used. It even has correction data for a number of popular lenses stored in its memory. With the chromatic aberration correction tool, distracting color fringing can be corrected at the time of shooting.
To help explain the specific function of features found on the EOS 70D, the Feature Guide displays a simple description helpful in determining the applicability for the situation at hand. It is displayed in each shooting mode, during mode dial operations, and for Quick Control screen functions. It appears automatically when a function is selected – a lifesaver when trying to determine the best mode or function for the next picture. The feature guide works automatically by default, and can be disabled easily through the camera's menu.
With the optional GPS Receiver GP-E2 attached to the hot shoe or the digital terminal, the EOS 70D can record location, including latitude, longitude and altitude, and has the ability to track the trajectory of movement with its logging function, perfect for photographers on the go. An electric compass records the camera's orientation during each shot, and world time information is recorded through GPS syncing.
To help organize images recorded to the camera's storage, the EOS 70D makes it simple to rate individual images from one star to five. Therefore, image browsing, printing and slide shows can be based upon those ratings.
Compatibility with SD/SDHC/SDXC Memory Cards, Including Ultra High Speed (UHS-I) Cards
The EOS 70D uses popular SD, SDHC, SDXC, and is even compatible with Ultra High Speed (UHS-I), memory cards. Compact and available in large capacities, SD, SDHC and SDXC memory cards are a perfect complement to the camera's compact design.
