Item#: 9SIA1ZC0K71291

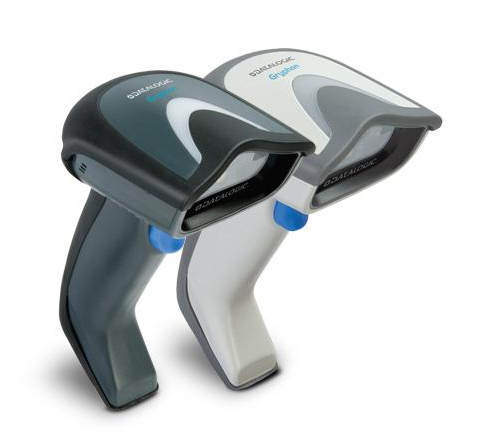

Datalogic GD4400-B 2D Barcode Scanner

  • Handheld
  • Multi-Interface
  • Scanner Only - No Cable
  • Pin It
  • Email this page
ICON Loading...
Gryphon I GD4400 2D

Gryphon I GD4400 2D

Imaging Technology

The Gryphon™ 4000 Series represents the premium level of data collection devices from Datalogic ADC for general purpose applications. Designed with people in mind, the Gryphon™ I GD4400 Imager blends advanced 2D reading with motion sensing technology, producing a user-friendly device with outstanding performance.

Modern Features for Today's Point of Sale

Perfect for both handheld and presentation reading, the Gryphon I GD4400 Imager features Datalogic's Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.

User comfort is maximized with the Gryphon I GD4400 Imager's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer's center cross provides a locater for targeted scanning in a multiple bar code environment.

Simple to Use and Deploy

The Gryphon I GD4400 Imager provides snappy reading performance on all commons 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this Imager also offers excellent performance when reading bar codes from mobile devices.

The Gryphon I GD4400 2D omnidirectional reader eliminates the need for separate equipment with signature capture and document scanning capabilities. Its enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

FEATURES

Gryphon I GD4400 2D
  • Motionix™ motion-sensing technology for seamless reading mode transitions
  • Highly visible 4-Dot aimer with center cross for targeted scanning
  • Omnidirectional reading
  • Advanced motion tolerance optics
  • Image capture and document scanning capabilities
  • Reads 1D, 2D and postal codes plus stacked and composite codes
  • Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand
  • Datalogic's patented 'Green Spot' for good-read feedback
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

INDUSTRY APPLICATIONS

Gryphon I GD4400 2D
  • Retail - Point of Sale
  • Light Manufacturing
  • Access Control, Transportation and Entertainment
  • Commercial Services: Postal, Banks, Public Administration, Utilities

Learn more about the Datalogic GD4400-B 2D

General

Brand
Datalogic
Series
Gryphon
Model
GD4400-B 2D
Form Factor
Handheld
Connectivity
Corded
Scan Engine
2D Area Imager

Connectivity

Included Cables
Scanner Only - No Cable
Interfaces Supported
Multi-Interface

Scan Performance

Light Source
650 nm Visible LED
Pitch
±40 degree
Roll
±180 degree
Yaw
±40 degree
Decoding Capability
1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code

Postal Codes: Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)

Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Electrical

Input Voltage
4.2 - 5.25 VDC
Current
< 160 mA @ 5 VDC

Mechanical

Color
Black
Dimensions
7.5" x 4.7" x 3.5"
Weight
0.81 lb.

Features

Drop
5 feet
Ruggedness
General Purpose

Quick Info

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
