Model

Brand

Canon

Series

EOS

Model

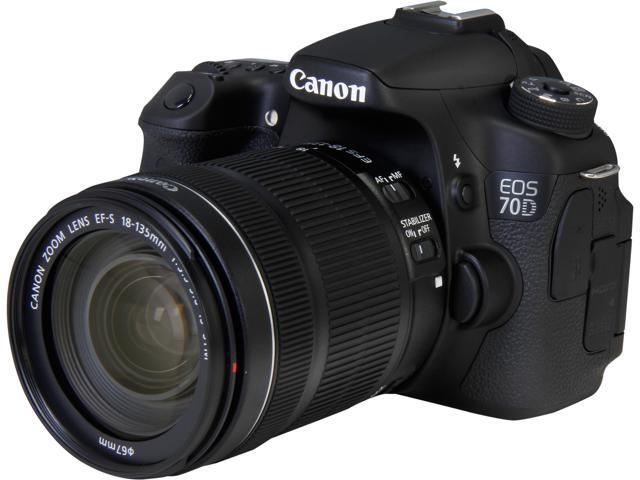

EOS 70D (8469B016)

Part

Digital SLR Cameras

Details

Color

Black

Package Type

Single Lens Kit

Image Sensor

Image Sensor

CMOS

Image Sensor Size

Approx. 22.5mm x 15.0mm (APS-C)

Gross Pixels

Approx. 20.9MP

Effective Pixels

20.2 MP

Aspect Ratio

3:2 (Horizontal : Vertical)

Color Filter System

RGB primary color filters

Dust Cleaning System

(1) Self Cleaning Sensor Unit
Removes dust adhering to the low-pass filter.
Self-cleaning executed automatically (taking approx. 2 sec.) when power is turned on or off. Manual execution also possible (taking approx. 5 sec.).

(2) Dust Delete Data acquisition and appending
The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.

(3) Manual cleaning

Image Stabilization

Image Stabilization

Image Processor

DIGIC 5+

White Balance

White Balance

Settings:
Auto, Preset (Daylight; Shade; Cloudy, Twilight, Sunset; Tungsten light; White Fluorescent Light; Flash), Custom (Approx. 2,000degree - 10,000degreeK), Color Temperature (Approx. 2,500degree - 10,000degreeK)

Auto White Balance:
Auto white balance with the image sensor

Color Temperature Compensation:
Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels

Color Temperature Information Transmission:
Provided

Viewfinder

Viewfinder Type

Eye-level SLR (with fixed pentaprism)

Coverage

Approx. 98% vertically and horizontally (with eye point approx. 22mm)

Magnification

Approx. 0.95x / 27.9degree (50mm lens at infinity, -1m-1 dpt)

Eyepoint

Approx. 22mm (At -1m-1 from the eyepiece lens center)

Dioptric Adjustment

Adjustable from approx. -3.0 to +1.0m-1 (dpt)

Focusing Screen

Fixed

Mirror

Quick-return half mirror (transmission: reflection ratio of 40:60)

Viewfinder Information

AF information:
AF points, focus confirmation, AF area selection mode

Exposure information:
Shutter speed, aperture, ISO speed (always displayed), AE lock, exposure level, spot metering circle, exposure warning

Flash information:
Flash ready, flash exposure compensation, high-speed sync, FE lock, red-eye reduction light

Image information:
Highlight tone priority (D+), maximum burst (2-digit display), card information

Composition information:
Grid, electronic level
Alert symbol

Depth-of-Field Preview

Enabled with depth-of-field preview button

LCD Monitor

LCD

3.0" 1040K

LCD Coverage

100%

Brightness Adjustment

Adjustable to one of seven levels

Focus

Focus Type

TTL secondary image-forming, phase-difference detection with AF-dedicated CMOS sensor

Focusing Modes

(1) Autofocus
One-Shot AF
Predictive AI Servo AF
AI Focus AF
*Switches between One-Shot AF and AI Servo AF

(2) Manual focus

AF Points

19-point cross-type AF

AF-assist Beam

Intermittent firing of built-in flash
Effective range: Approx. 13.1 ft. / 4.0m at center, approx. 11.5 ft. / 3.5m at periphery

Exposure

Exposure Control

Creative Zone:
(1) Program AE (shiftable)
(2) Shutter-priority AE
(3) Aperture-priority AE
(4) Manual exposure
(5) Bulb
(6) Custom shooting mode

Basic zone:
(1) Scene Intelligent Auto (Program AE / non-shiftable)
(2) Flash OFF
(3) Creative Auto
(4) Special Scene:
- Portrait
- Landscape
- Close-up
- Sports
- Night Portrait
- Handheld Night Scene
- HDR Backlight Control

Exposure Compensation

(1) Manual: +/-5 stops in 1/3- or 1/2-stop increments
(2) AEB: +/-3 stops in 1/3- or 1/2-stop increments

Metering System

TTL maximum aperture metering with 63-zone metering sensor:
Evaluative metering (linked to all AF points)
Partial metering (center, approx. 7.7% of viewfinder)
Spot metering (center, approx. 3.0% of viewfinder)
Center-weighted average metering

Metering Range:
EV 1-20 (at 73degreeF/23degreeC, ISO 100)

ISO Sensitivity

For Stills: Manual setting range of ISO 100-12800, expansion to ISO 25600 equivalent

AE Lock

(1) Auto AE lock
(2) Manual AE lock

Shutter

Shutter Type

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled

Shutter Speed

1/8000 to 30 sec., X-sync at 1/250 sec. (Total shutter speed range. Available range varies by shooting mode.)

Self-timer

10-sec. or 2-sec. delay

Flash

Flash Type

Auto pop-up, retractable, built-in flash in the pentamirror

Flash Mode

Built-in Flash

Flash Range

Up to 17mm focal length (equivalent to approx. 27mm in 135 format)

Flash Exposure Compensation

Up to +/-3 stops in 1/3- or 1/2-stop increments

External Flash

Supported

Drive System

Drive Modes

(1) Single shooting
(2) High-speed continuous shooting
(3) Low-speed continuous shooting
(4) Silent single shooting
(5) Silent continuous shooting
(6) 10-sec. self-timer/Remote control
(7) 2-sec. self-timer/Remote control

Continuous Shooting Speed

High-speed continuous shooting: Max. approx. 7.0 fps
Low-speed continuous shooting: Max approx. 3.0 fps.
Silent continuous shooting: Max approx. 3.0 fps.

Maximum Burst

Based on 8GB memory Card:
JPEG Large/Fine: Approx. 40 Shots
RAW: Approx. 15 Shots
RAW+JPEG Large/Fine: 8 Shots

Based on 8GB UHS-I memory card:
JPEG Large/Fine: Approx. 65 Shots
RAW: Approx. 16 Shots
RAW + JPEG Large/Fine: 8 Shots

Function

Scene Modes

Portrait | Landscape | Night portrait | Sports | Close-up | Handheld Night Scene | HDR

Playback

With single-image display (Info.) and single-image display, overexposed highlight areas will blink

Recording System

File Format

Camera File System 2.0 and EXIF 2.30

Image Type

JPEG: JPG
RAW: CR2 (Canon Raw 2nd edition)
RAW+JPEG

Color Space

sRGB, AdobeRGB

Recording Media

SD / SDHC /SDXC Card

Movie

Movie Format

MOV (Image data: H.264, Audio: Linear PCM)

Movie Recording

1920 x 1080 (Full HD): 30p (29.97) / 25p / 24p (23.976)
1280 x 720 (HD): 60p (59.94) / 50p
640 x 480 (SD): 30p (29.97) / 25p

Max. Recording Resolution

1920 x 1080

Lens

Compatible Lenses

Canon EF lenses (including EF-S lenses)
