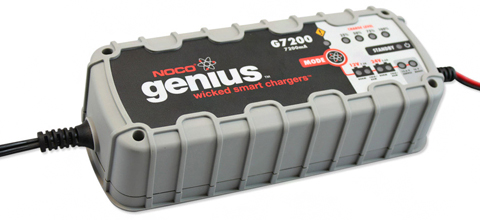

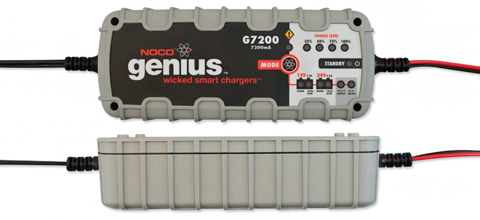

NOCO Genius G7200 12V/24V 7200mA Battery Charger and Maintainer

NOCO G7200 12V/24V 7200mA Battery Charger and Maintainer

Wicked Features, Wicked Smart!

The G7200 is a smart, 12 Step, fully automatic switch-mode battery charger and maintainer. The G7200 restores batteries to their original capacity, recovers slightly sulfated batteries, charges batteries in cold climates, rescues drained batteries, and provides maintenance charging to increase battery life. A powerful battery charger with specialized charging modes for recovering severely drained batteries that will not accept a normal charge. Suitable for most 12V and 24V battery capacities from 14-230Ah, such as Motorcycles, ATVs, UTVs, Snowmobiles, Jet Skis, Cars, RVs, Boats and Trucks.

OVERVIEW

Powered by Noco's VosFX Processor
The VosFX Processor is a revolutionary smart processor utilizing sophisticated levels of intelligence to alter the charge process.

Rapid Charging Technology
Charges batteries 2X faster than traditional linear battery chargers.

High Frequency, High Efficiency
High-frequency, high-efficiency for a lightweight, compact charger.

Designed for Safety
Reverse polarity, short circuit, open circuit, spark proof, overheat, overcurrent & overcharge.

Five-Year Limited Warranty

FEATURES

Simple User Interface

Designed Tough

Comfort Cable Clamps
Ergonomically designed to make battery connecting and disconnecting effortless. Features a fully insulated over-mold casing with strain relief ends to alleviate unwanted tension on cable leads.

Extendable Connectors
Connecting and disconnecting accessory leads has never been easier! A uniquely designed interchangeable connector allows accessories to be properly mated and fastened with a snap-lock latch.

Built-In Fuse Protection
Each battery connection accessory features an over-molded inline fuse to increase user safety by protecting the battery charger from potentially dangerous short circuits.

Rugged Enclosure
Made from a rugged polymer for high-impact resistance for some of the harshest and most demanding working environments.

Wicked Smart Features

12V/24V Compatibility
Charges 12V & 24V batteries

Auto-Memory
Returns to last selected mode when restarted

Fully Interactive
Automatically adjusts itself to changing current needs

Designed for Safety
Reverse polarity, short circuit, open circuit, spark proof, overheat, overcurrent & overcharge

HF/HE Switch Mode Design
High-frequency, high-efficiency for lightweight, compact charger

Rapid Charging Technology
Charges batteries 2X faster than traditional linear battery chargers

Variable Input Compensated
100% full charge even with varying A/C input voltages

Recovery Mode
Recovers deeply discharged & sulfated batteries with pulse charging

Multiple Battery Chemistry
Safely charges Wet, Gel, MF & AGM batteries

Abnormality Protection
Automatically shuts "off" if charger remains in Bulk charge mode for an extended period of time

Extendable Connectors
Plug-n-play connectors for easy accessory changes

Cold/AGM Mode
Optimized charge mode for cold weather or AGM batteries

SPECIFICATIONS

Input Voltage AC	110 ~ 120VAC, 50 - 60Hz
Working Voltage AC	85 ~ 130VAC, 50 - 60Hz
Input Current	2000mA RMS Max.
Efficiency	85% Approx.
Power	150W Max
Charging Voltage	14.4 / 28.8V, 14.7 / 29.4V (Cold/AGM), 13.6V (Supply), 16.5V (Boost)
Charging Current	7200mA (12V), 3600mA (24V), 5000mA (Supply), 1500mA (Boost)
Back Current Drain	<5mA
Ripple	<2%
Ambient Temperature	32 - 104°F (0 - 40°C)
Charger Type	12-Step, Fully Automatic, Switch-Mode
Type of Batteries	12V & 24V Lead-Acid
Battery Chemistries	Wet, Gel, MF & AGM
Battery Capacity	14-230Ah (12V), 14-120Ah (24V), Maintains All Battery Sizes
Housing Protection	IP65
Cooling	Natural Convection
Noise Level	<50dB
Dimensions (L x W x H)	8.9 x 3.8 x 2.4 Inches
Weight	1.7 Pounds

Charging Times

The time required for the G7200 to charge a normally discharged battery is shown below. Deeply discharged batteries may take longer to charge depending on the depth of discharge (DOD). The charge time is based on an average depth of discharge to a fully charged battery.

Note: The above table is for reference purposes only. Actual data may differ due to battery conditions. The time required for the G7200 to charge a normally discharged battery is based on an average DOD of 50%.

Charging Steps

Step 1: Diagnostics
Checks the battery voltage to make sure battery connections are good and the battery is in a stable condition before beginning the charge process.

Step 2: Recovery
Initializes the Recovery process, if needed, for deeply discharged or sulfated (desulfation) batteries by pulsing small amounts of current.

Step 3: Soft Start
Begins Bulk charging process with a gentle (soft) charge.

Step 4-7: Bulk
The Bulk charging process continues using Max Rate, High Rate, Medium Rate and Low Rate charges and returns 80% of battery capacity, indicated by the 25%, 50% and 75% CHARGE LEDs.

Step 8: Absorption
Brings the charge level to 90%. The battery charger will deliver small amounts of current to provide a safe, efficient charge and limit battery gassing.

Step 9: Trickle
Battery is fully charged and ready to use, indicated by the 100% CHARGE LED being a solid Green. In this step, the battery charger will only deliver enough current that the battery needs. If the battery tells the charger that more current is needed, the battery charger will switch to Maintenance.

Step 10: Maintenance
Continuously monitors the battery voltage to determine if a Maintenance charge should be initiated. If the terminal voltage falls below 12.8V (12V) and 25.6V (24V), the charger will start the Maintenance cycle until voltage reaches 14.4V (12V) and 28.8V (24V) and then discontinues the charge cycle. The cycle between Trickle and Maintenance is repeated indefinitely to keep the battery at full charge, without overcharging. The battery charger can be left connected indefinitely.

Step 11: 13.6V Supply
The 13.6V SUPPLY mode is used for low voltage batteries, maintenance charging or as a power supply.

Step 12: 16V Boost
The 16V BOOST mode is used to recover battery capacity from a stratified (sulfated) battery by applying a specialized high 16.5V (17V Max) voltage to soften and melt down sulfate from the battery plates so that the material becomes usable again.

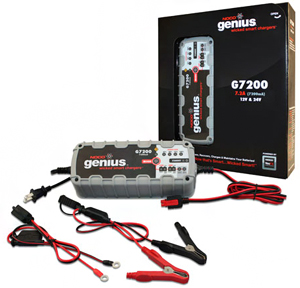

WHAT'S IN THE BOX

G7200 Charger
Battery Clamp Connectors
Eyelet Terminal Connectors
Owner's Manual & User Guide

Details

Brand: NOCO

Type

Type: Battery Charger and Maintainer
