Wiiboox One Mini 3D Printer Features

Air Particulate Filtration Module

A new study by researchers at the Illinois Institute of Technology shows that desktop 3D printers can have substantial emissions of potentially harmful nanosized particles in indoor air and human inhalation of UFPs may be important from a health perspective. Wiiboox 3D printers invented world first air particulate filtration module, fineness goes up to 0.08 microns, to keep you safe while enjoy 3D printing.

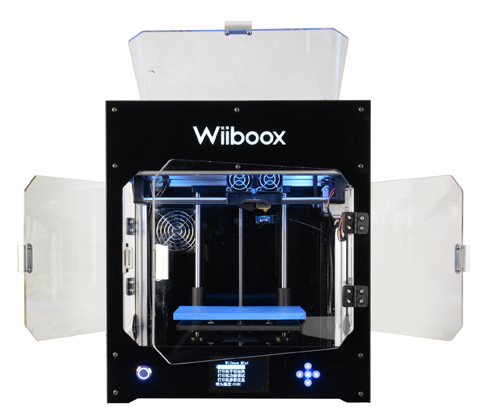

Enclosed Chamber, 4-Way Accessible

Allows you to calibrate and maintain the machine for easy reach.

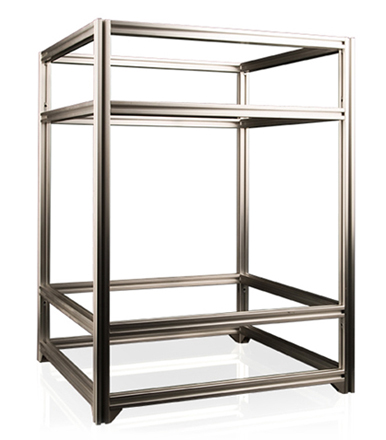

Metal Frame Structure, Stable as Rocks

Sturdy aluminum alloy metal frame structure weighs 1/3 as stainless steel and but strengthens is 5 times harder than acrylic panels, ensures stability for long time printing and thus the accuracy and quality of your print.

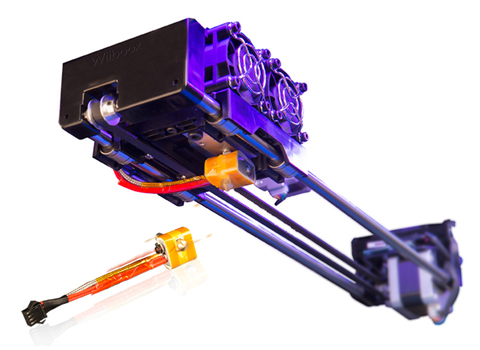

Start from Special Extruder

3000 hours print test in lab, 5 generation upgrade, high resolution stepper motor, 100 microns print resolution, 180mm/s print speed, easy-to-use extruder assembly, to print longer and easy to change.

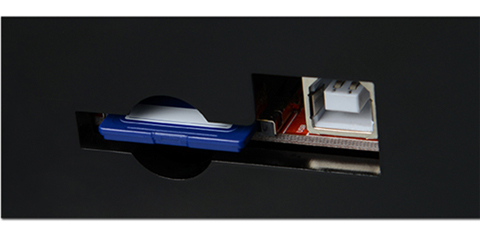

Print from Your SD Card

Wiiboox can print your build off-line, avoiding printing failure because of unstable computer connection.

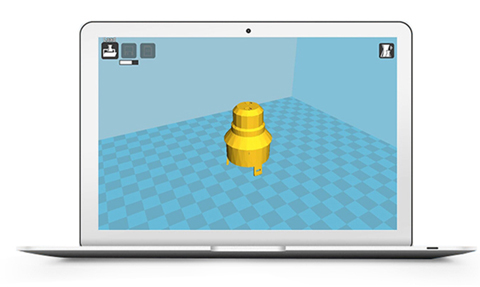

Extremely Simple, Easy to Use

Customized Cura system helps to transfer your model to readable files in a faster and easier way. PVA filament print and dual extruder are also compatible.

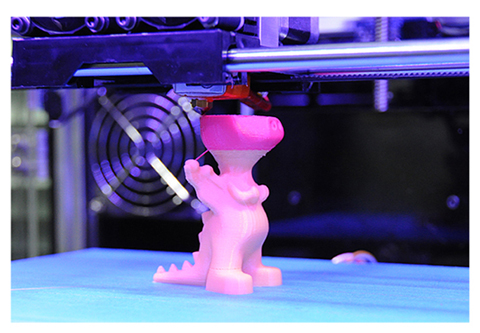

Continue from Where It Stops

This feature allows you to manually print an object in multi colors: pause the print , change the filament, continue print, and then you will get a multi-color object when the task finished.

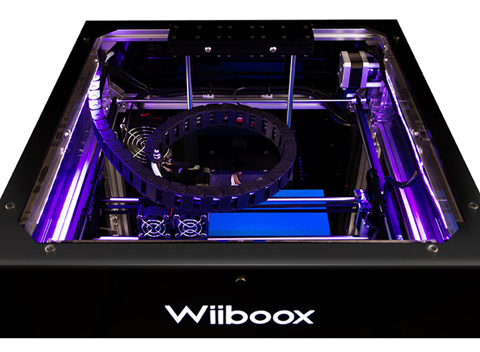

Drag Chain to Protect Cables

Extruder cables are protected by drag chain, to save space, lower noise and draw extruder cables in an organized way.

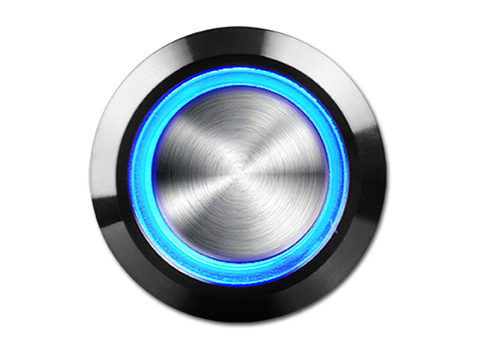

One Key Starts Your Creation

Power switch in the front of the Wiiboox One Mini 3D Printer. One key start button to enjoy your print.

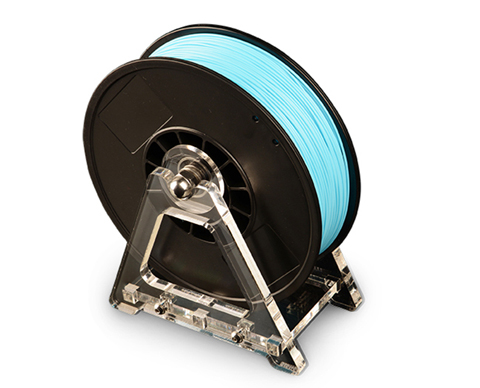

Separated Filament Spool Rack

Machine mount rack makes the filament change troublesome and may get the spool stuck. Separated spool rack makes filament change easier and spool unwinding smooth.

Product Comparison
	This Product
Model Name	Wiiboox One Mini	Wiiboox One	Wiiboox One Pro
Machine Size	15.9" x 13.3" x 17.7" 405*340*450mm	18.8" x 18.7" x 24.4" 480*475*620mm	18.8" x 18.7" x 24.4" 480*475*620mm
Machine Weight	22 lbs 10 kg	41.8 lbs 19 kg	41.8 lbs 19 kg
Build Size	7.8"x5.9"x5.9" 200*150*150mm	9.8"x7.8"x7.8" 250*200*200mm	9.8"x7.8"x7.8" 250*200*200mm
Extruder	1	1	2
Layer Height	100-500 microns 0.1-0.5mm	100-500 microns 0.1-0.5mm	90-500 microns 0.09-0.5mm
Positioning Resolution of Z Axes	2.5 microns 0.0025mm	2.5 microns 0.0025mm	2.5 microns 0.0025mm
Positioning Resolution of X and Y	11 microns 0.011mm	11 microns 0.011mm	11 microns 0.011mm
Compatible Filament	ABS/PLA	ABS/PLA	ABS/PLA/PVA
Camera	No	Yes	No
Extruder Cooling Fan	Controllable	Controllable	No
Heating Plate	No	Yes	No
Detachable Build Plate	Yes	No	Yes
Auto Levelling	Yes	Yes	Yes
Levelling Points	3	4	3
Air Filtration Module	1	1	1
Auto Power-off	Yes	No	Yes

Technical Specifications

Machine Specification:

• Model Name: Wiiboox One Mini
• Machine Size: 15.9" x 13.3" x 17.7" (405*340*450mm)
• Machine Weight: 22 lbs. (10kg)
• Printer Head: Single Head
• Voltage Input: 110V AC / 220V AC
• Maximum Power: 350W

Print Specification:

• Maximum Build Dimensions: 7.8" x 5.9" x 5.9" (20*15*15cm)
• Layer Thickness: 100-500 microns (0.1-0.5mm)
• Nozzle Diameter: 0.4mm
• Print Resolution: 0.1mm (100 microns)
• Print Speed: 20~180mm/s
• Accuracy of Positioning: 2.5 microns(Z); 11 microns(X and Y)

Filament Specification:

• Filament Size: 1.75mm diameter
• Compatible Filament: Wiiboox PLA.Nor/PLA.Pro/ABS.Nor

Software Specification:

• Software: ReplicatorG/Cura
• Input format: STL/G-CODE/OBJ
• Supported operating system(s): Windows, Mac, Linux
• Connection: Micro-USB, SD card

What's in the box?

• -Wiiboox One Mini
• -1x filament spool(PLA Pro, White) and 1x support rack
• -3x crepe paper
• -1x power supply and 1x power cord
• -1x X-axis motor cable
• -1x X-axis power switch cable
• -1x SD card, 1x card reader
• -1x plastic scraper
• -Metal tool kit
• -Installation disc, user manual, warranty
