Item#: N82E16811108396

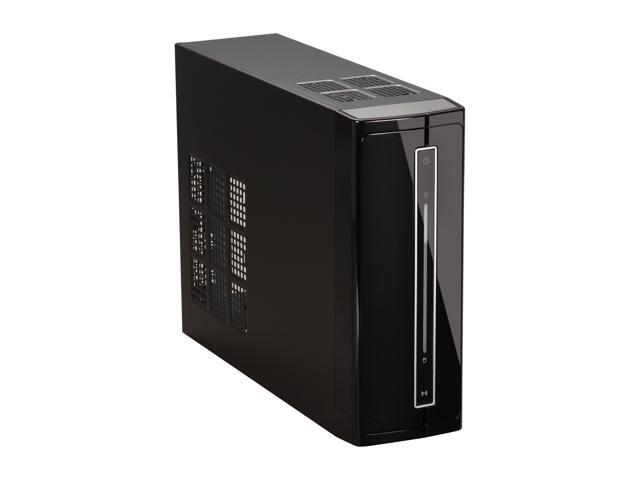

In Win BP671 mini ITX case with Haswell Ready 200W power supply, 8cm Fan, Black, TAC 2.0, Front USB 2.0X2, HD audio

  • Mini-ITX Tower
  • USB 2.0 x 2, HD Audio
  • 200W Power Supply
IronEgg
BUY WITH CONFIDENCE
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...
BP671
BP671
8.2L Small Form Factor

The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows really quick assembly and reduces costs.

Features

Features

Easy Integration

The BP Series was designed to offer quick integration. No peripheral carrier or bezel need be removed for assembly. This allows really quick assembly and reduces costs.


Features

Antenna Mount Ready for WLAN Card


Features

Supports Mini-ITX Motherboards

Supports Mini-ITX motherboards for a wide choice of system features and price points.


Features

Standard TFX 12V Power Supply

Internal TFX 200W Power supply equipped with a temperature control sensor that reduces noise and allows quiet operation.


Features

Standard Components

The BP Series supports standard size components (5.25" & 3.5"). The use of standard components helps to maximize configuration choices and minimize product costs.


Features

Tool-Free

Optional screwless design on the ODD bay and side panel for easy assembly.


Features

Optimal Thermal Performance

An ultra silent 80mm case fan with Intel Thermally Advantaged Small Chassis 1.0 vents improve the airflow and optimize thermal performance, keeping temperatures below 102.2°F (39°C).

Excellent Thermal Solution

Features
  • 80x80x25mm System Fan
  • Intel Thermally Advantaged Small Chassis 1.0 Vents
  • Keeps temperatures below 39°C
  • Optional Removable Air Filter

System Acoustic Result

System Run Sound Pressure
Idle 29.2dB
Max Power (CPU 100%) 33.4dB

System Thermal Result

CPU Ambient Average Temperature 101°F (38.4°C)

CPU Core™ 2 Duo E6550 2.33GHz (65W)
Ambience Temperature 35°C (95°F)
Ta Average 34.6 (94°F)
Host Bridge 123°F (50.7°C)
RAM 119°F (48.3°C)
ODD 117°F (47.2°C)
HDD 123°F (50.5°C)
PSU Fan inside 110°F (43.6°C)
PSU Fan outside 118°F (47.7°C)
Second Fan inside 110°F (43.6°C)
Second Fan outside 112°F (44.3°C)
Lab Test: Intel Box CPU (Intel Core™ 2 Duo E6550 / 2.33GHz, LGA 775, 65W).
+ Source from In Win lab. All examined sources are subject to change at anytime, without prior notice.
+ Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of In Win products as measured by those tests. Any difference in system hardware, software design, or configuration may affect actual performance.

Tool Free

Screwless ODD Bay Clips


Screwless Top Cover Clips


Front Ports

Features
  • USB 2.0 x 2
  • HD Audio x 1
  • Optional IEEE 1394
  • Optional USB 3.0 x 2

Rear Ports

Features
  • eSATA x 1 (at Rear Panel with Module)
  • USB2.0 x 2 (at Rear Panel with Module)
  • Universal Antenna Modules (UAMs) Mounting Hole Ready

Security

  • Padlock Loop
  • Kensington Slot
Features Supports 2.5" x 2

Optional

  • Chassis Intrusion Switch
  • Screwless ODD Bay Clips
  • Screwless Top Cover Clips
  • 3.5" to 2.5" HDD/SSD Bracket
Features Optional 60mm Fan x 1
(60 x 60 x 10mm, 2500RPM, 20dB Fan, 4-Pin Power Connector)

Learn more about the In Win BP671.FH200B

Model

Brand
IN WIN
Series
BP-Series
Model
BP671.FH200B

Spec

Type
Mini-ITX Tower
Color
Black
Case Material
Steel
With Power Supply
Yes, Standard TFX 12V IP-S200DF1-0
Power Supply
200W
PSU Main Connector
20+4Pin
Motherboard Compatibility
Mini-ITX
With Side Panel Window
No

Expansion

External 5.25" Drive Bays
1
External 3.5" Drive Bays
No
Internal 3.5" Drive Bays
3.5" HDD (1") x 1
3.5" HDD (0.8") x 1
Expansion Slots
Low Profile Card Slot x 1

Front Ports

Front Ports
USB 2.0 x 2, HD Audio

Cooling System

80mm Fans
80 x 80 x 25mm System Fan

Physical Spec

Dimensions
13.7" x 3.9" x 10.4"

Features

Features
Easy Integration - The BP Series was designed to offer quick integration. No peripheral carrier or bezel must be removed for assembly. This allows very quick assembly and reduces costs.

Optimal Thermal Performance - An ultra silent 8 cm case fan with Intel Thermally Advantaged Small Chassis 1.0 vents help to improve the airflow and optimize thermal performance, keeping temperatures below 39 Degree C.

Supports Mini-ITX Motherboard - Supports Mini-ITX motherboards for a wide choice of system features and price points.

Standard TFX 12V Power Supply - Internal TFX 200W Power supply equipped with a temperature control sensor that reduces noise allows for quiet operation.

Standard Components - The BP Series supports standard size components (5.25" & 3.5"). The use of standard components helps to maximize configuration choices and minimize product costs.

Tool Free - Optional screw-less designs - ODD bay and side panel for easy assembly.
Antenna Mounting Hole Ready for WLAN Card

Safety: Meets RoHS, CE and FCC Class B Requirements

Security: Padlock Loop / Kensington Slot

Power Supply:
AC Input: 115 - 230V
PFC: N/A
MTBF: 100,000 hours @ 25 Degree C per MIL-STD-217D/F
8cm Cooling Fan
Smart Thermal Control to Balance Noise & Cooling
Operating ambient +10 Degree C minimum to +40 Degree C maximum
Max. Output Current: +3.3V@13A, +5V@14A, +12V1@14A, -12V@0.3A, +5VSB@2.0A
Connectors:
1 x Main connector (20+4Pin)
1 x 4 Pin +12V CPU
1 x Peripheral
3 x SATA
1 x Floppy

Optional:
IEEE 1394
eSATA / USB2.0 x 2 (at Rear Panel w/ Module)
Removable Air Filter
Chassis Intrusion Switch
Screw-less ODD Bay Clips
Screw-less Top Cover Clips

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the In Win BP671.FH200B

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • JODY B.
  • 8/2/2014 8:04:35 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsMy favorite mITX case, and for many very good reasons

Pros: This case has it all. It looks great. It has excellent build quality for an inexpensive Mini-ITX case. Feet and a stand are included to allow use in desktop or tower profiles. The included power supply is rock solid, even with a Core i5 build taxing it. While any decent mITX case is going to be somewhat crowded, this one is reasonably arranged. The included case fan is an excellent quality fan. The "blue line" power light is beautiful without being obnoxious.

Cons: It's a Mini-ITX case, so it's a pain to get drives in and out. The optical drive is like a "lock" in that it must be inserted last and removed first; the bezel, motherboard, and drive chassis can't be removed until that drive is out. As with any small case, cabling and cooling can get tight and a little ugly.

Other Thoughts: I have built at least 30 machines over the past two years with this case, one of which was my main desktop for a few months straight. I can't recommend it highly enough.

Did you find this review helpful? Yes No

  • Christopher J.
  • 7/28/2014 8:59:46 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsNot as small as you think it is.

Pros: Well made. Everything lines up.

Cons: The case fan is only silent if you leave it unplugged

Other Thoughts: This is much bigger than I'd wanted but that's my own fault for not being more careful. It's a well made case. The only downside so far is the loud fan.

Manufacturer Response:

Hello,

We will be very happy to replace the power supply for you if you could send us the photo image of the label on power supply.

Thank you very much.

Best Regards,
In-Win Customer Service
customerservice@in-win.com

Did you find this review helpful? Yes No

  • Thomas T.
  • 6/4/2014 4:06:51 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsI wish I can cheat the death, I was wrong !!

Pros: The case is Slim but all benefit / Pros will be hurt by their DOA PSU.

Cons: I always think I will not be the unlucky one, but this time around , I am. The PSU that come with the case id DOA (Dead on arrival).
I was thinking , if the yield for the IN-WIN PSU are so low , why Don't they a Bare-bone case and charge like $39. I help the case with more value , and it will not hurt IN-Win band PSU that they sold on newegg also. Something the management / marketing have to think about .

Other Thoughts: People who do search for IN-Win other PSU will have worry of their Quality as well. If you cannot put a quality PSU in this case , it will better not to put it in al all. Just sell it with a lower price, let them choose a quality or more power PSU themselves

Manufacturer Response:

Dear Tommy,
We are sorry for any inconvenience that you have experienced. Please kindly contact our customer service dept at 909-348-0588 x 741 or email us at customerservice@in-win.com for the RMA number. We will provide the replacement power supply to you as soon as we can. Thank you.


Best Regards,
In Win customer service team

Did you find this review helpful? Yes No

  • Benjamin H.
  • 5/29/2014 8:38:07 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsNice Small Case

Pros: Good compact case. I would have preferred having the PSU on the opposite of the case and installing a DVD drive makes for a fight.

Cons: None so far.

Other Thoughts: If you're looking to put a mini ITX motherboard in this case, the AsRock Z87E-ITX has better connector placement than the Gigabyte GA-Z87N-WIFI

1 out of 1 people found this review helpful. Did you? Yes No

  • Jean-Matthieu G.
  • 5/25/2014 6:36:50 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsDOA

Pros: Small, case look durable.

Cons: Defective power supply.
I bought 4 cases from IN-Win in the last year, 2 had defective power supply.

Manufacturer Response:

Dear Sir or Madam,
We are sorry for any inconvenience that you have experienced. Please kindly contact our customer service dept at 909-348-0588 x 741 or email us at customerservice@in-win.com for the RMA number. We will provide the replacement power supply to you as soon as we can. Thank you.


Best Regards,
In Win customer service team

Did you find this review helpful? Yes No

  • Beatriz L.
  • 2/17/2014 2:28:04 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsAwsome case

Pros: You can build an awsome mini-itx HTPC. This is just as small as my ATT uverse cable box. I'm done building such big PCs for the daily stuff that I need (internet, netflix, dvds, bd, itunes, ocasional work on MS office and audio recording).

Cons: None

Other Thoughts: The only thing I wish is that the front door would be split into two: 1 door with a spring where the blue ray or dvd drive could open and close automatically and the 2nd door open to the front usb

Did you find this review helpful? Yes No

  • Bass S.
  • 2/10/2014 12:49:39 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice little Case

Pros: Size, options, access, DVD slot, 2 HDD slots.
I use that machine for web servers and RMM client servers.
Small foot print and quiet.

Cons: None so far

Did you find this review helpful? Yes No

  • Ramzi S.
  • 1/7/2014 1:41:30 PM
  • Tech Level: Average
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsGreat for what I need

Pros: Got this over a year ago, my laptop crapped out, but I wanted to see if I could salvage the hard drive and bluray player. Got it with the ASRock H61MV-ITX board and the Intel Pentium G2020 Ivy Bridge 2.9GHz cpu. Works great. I'm looking to add a small video card and bigger memory (I'm thinking 8 gigs, currently only have 2).
200w power supply is nice, is all the power I need for a simple build like this

Cons: The layout of the case could be improved, its a bit difficult to get all the wires hooked up correctly to the cd tray and hard drive when the cpu and heatsink are already installed, but then again the case is supposed to be small, so that is to be expected.

Other Thoughts: I originally bought the APEX MI-008 Black Steel Mini-ITX case, because it came with a 250w power supply, but had to return it because that case was horribly laid out, and couldn't get all my parts to fit. This case is better than most other Mini-ITX options out there

1 out of 1 people found this review helpful. Did you? Yes No

  • Guillaume S.
  • 12/9/2013 12:48:38 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsDoesn't power.

Pros: Can't say.

Cons: DOA PSU, it seems. Installed memory, HDD, motherboard.. and doesn't power at all, nothing.

Manufacturer Response:

We apologize for any inconvenient that you have experienced. This is a new chassis so please check set up and wire connection again. If the PSU is still not work, please kindly contact our RMA dept at 909-348-0588 x 741 or email us at customerservice@in-win.com for the RMA number. We will provide the replacement PSU to you as soon as we can.
Thank you.

Best Regards,
In Win customer service team

Did you find this review helpful? Yes No

  • Oleg F.
  • 12/9/2013 6:42:12 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsgood case

Pros: Spacious, good layout.
Nice look with piano black finish.
Latch door that hides 5.25 bay.

Cons: Power supply is way too noisy.
Front USB ports are hidden under the latch door.

Other Thoughts: Replaced PSU with picoPSU and attached power brick with velcro inside the case, works out perfect.

Did you find this review helpful? Yes No
