Item#: N82E16811129024

Antec Sonata III 500 Black 0.8mm cold rolled steel ATX Mid Tower Computer Case 500W Power Supply

  • 0.8mm cold rolled steel ATX Mid Tower
  • USB 2.0 / Audio / e-SATA Front Ports
  • 500W Power Supply
  • 3 External 5.25" Drive Bays
  • 4 Internal 3.5" Drive Bays
  • Pin It
  • Email this page
ICON Loading...

Antec's thoughtfully-designed case brings you library-quiet performance and unique style with its striking, contemporary exterior. The interior comes standard with a rear 120 mm TriCool fan with 3-speed control, and space for an optional front 120 mm fan. A built-in, washable air filter helps to keep your system free of dust. The door opens 225-degrees for easy access to two USB ports, eSATA connector, and High definition audio jacks.

You'l have all the room you need to build your dream system in this case, with bays for three external 5.25" drives, two external 3.5" drives, and four internal 3.5" drives in individual trays, and insulated from the vibrations of your hard drive by silicon grommets. There’s space for an ATX motherboard up to 12"(W)x 9.6"(L), seven expansion slots, and rubber-grommeted mounts on the rear of the case for an optional external liquid-cooling system.

It's all powered by a 500W EarthWatts PSU, so you'll never lack power for all your peripherals. This stylish case has everything you need to build your ideal system!

  • newegg Ultra-cool and Quiet System The Antec Sonata III features a 120mm Tricool rear fan (standard) with 3-speed control and improved overall air intake for better and quieter cooling.
  • newegg Great Expandability with 9 Drive Bays Featuring three external 5.25" drive bays, and six 3.5" drive bays (two external and four internal), the Antec Sonata III provides great expandability.

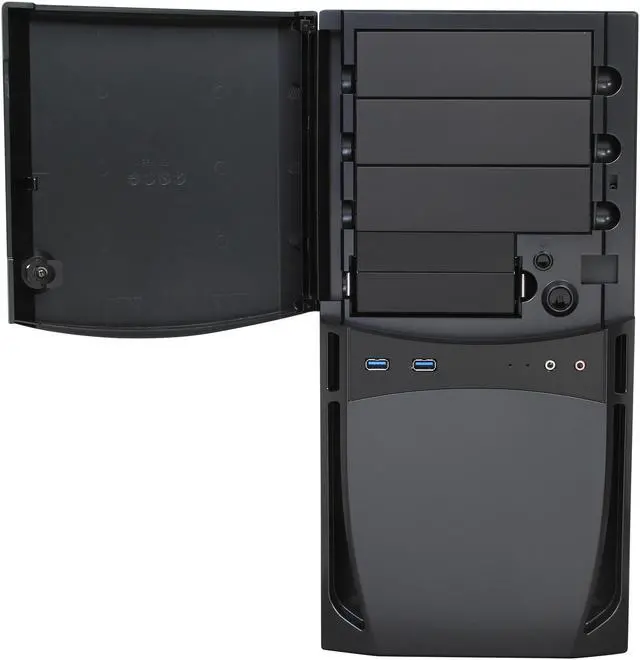

  • newegg Convenient Front I/O Panel The Antec Sonata III features a convenient front I/O panel for easy access to two USB 2.0, one e-SATA and two audio ports.
  • newegg Built-in Antec EA-500 500W PSU The Antec Sonata III is equipped with a powerful Antec Earthwatts EA-500 500W power supply unit to feed energy-consumptive systems, making every computer component run robustly.
  • newegg 80 Plus Certified The Antec Earthwatts EA-500 with 80 PLUS certified power supply provides high power efficiency of at least 80% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.

Learn more about the Antec Sonata III 500

Model

Brand
Antec
Model
Sonata III 500

Spec

Type
ATX Mid Tower
Color
Black
Case Material
0.8mm cold rolled steel
With Power Supply
Yes
Power Supply
500W
Power Supply Mounted
Top
Motherboard Compatibility
ATX
With Side Panel Window
No

Expansion

External 5.25" Drive Bays
3
External 3.5" Drive Bays
2
Internal 3.5" Drive Bays
4
Expansion Slots
7

Front Ports

Front Ports
USB 2.0 / Audio / e-SATA

Cooling System

80mm Fans
No
120mm Fans
1 x 120mm rear fan with 3-speed control to balance quiet with cooling
Side Air duct
No

Physical Spec

Dimensions
18.20" x 8.10" x 16.70"
Weight
20.2 lbs.

Features

Features
Improved overall air intake for better and quieter cooling
Built-in washable air filter keeps harmful dust out of your case
Removable Washable Air Filter

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the Antec Sonata III 500

Do you own this product? Write a Review

Filter Results

Go
  • Ram
  • 5/5/2013 9:57:10 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsGreat high quality case - Well thought out

Pros: - Very high build quality. This is not a cheap case with light parts that will bend and deform easily.
- Excellent capacity for expansion and very well thought out layout. To give some perspective, I bought the case in 2010. I recently bought an SSD to upgrade my rig and the case has a mounting slot at the bottom for a SSD. Adding the SSD was a breeze.
- Excellent set of accessories and screws. They don't skimp on anything.
- Silicon grommets for your hard-drives - these small things make a big difference to the noise level and vibration transfer to the case or other parts itself
- Comes with a good quality power supply. 500W is more than enough for my rig (Gigabyte p55-ud3, Intel Core i5, Passive cooled Radeon 4750, 4 hard drives, 16 GB RAM). The cables on the power supply are comfortable length and I've not had any issues with cable length or cable availability yet.
- Looks understated and elegant. This is a personal choice and I hate cases that try to make your rig look like an alien space ship on steroids. This is very professional looking with no random lights or holes to show the innards.
- Side mounted HDD - makes it a lot easier to add/remove HDDs esp. if you add an after-market heatsink.
- Lots of room to add big heatsinks. I added the Cooler Master Hyper 212+ and no issues at all with room.
- The 120mm fan it comes with is very quiet at the lowest setting.

Cons: - No access to back of motherboard after install. Basically you can't remove one side of the case which means once you install your motherboard you have to take it out if you add an after-market heatsink. This was a PITA.
- Comes with only one single 120mm fan. It is not PWM controllable which really annoys me. Has an attached switch that is not easily mountable without drilling the back of the case which I'm not interested in. I don't understand why it is so hard to just ship a PWM controllable fan with this thing.

Did you find this review helpful? Yes No

  • Wierdstone
  • 3/13/2013 12:36:42 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

5 out of 5 eggsSuperb

Pros: Build quality second to none.
Side mounted HD's make things so much easier.
Plenty of space for large CPU cooling fans.
Front removeable filter really works stops a lot of crud getting through.

Cons: You may have trouble fitting large video cards if you use a fan on the HD cage.
Filter is a pain to get out as it removes by sliding it downwards. If you have it stood on the floor then you have to tip the case backwards.

Other Thoughts: J.
the slide rails that come with the case have to mounted to the HD's and Disk Drives then they slide into the cages really easily.

Did you find this review helpful? Yes No

  • johnekio
  • 3/9/2013 8:32:31 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsGreat case

Pros: Great looking case. Have not started building yet but like accessibility.

Cons: Came with no front rails for external drives

Did you find this review helpful? Yes No

  • TexasDex
  • 1/4/2013 2:21:39 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsGood value case

Pros: Great value, especially with the included PSU. I like the side-facing HD bays, the super-convenient side panel latch, and the air filter in the front. Case isn't too flashy but looks attractive and feels pretty sturdy. Working on it was convenient.

Cons: Owning this case taught me that I don't like cases with doors over the 5.25" drive bays. The door isn't bad itself, but since I like to have my PC behind stuff and out of the way it was a pain and I eventually removed it, but now it looks uglier and dust gets in all the cracks around the bays. If you don't mind the door more power to you, but I guess they're not for everybody.

Also, no way to remove the second side panel. Slightly annoying for HD cable routing.

Did you find this review helpful? Yes No

  • DanDoggy
  • 12/29/2012 6:17:59 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsEggCellent

Pros: The quality is evident. It holds the big cpu coolers and all the guts are solid.

Cons: I do not like the tiny blue light, so i take a black dot sticky poke a small hole and place over it to lesson the laser effect.

Other Thoughts: I bought my first Sonata 10 years ago. They have made improvements to keep with tech. Everyone in my family has one of these and some of my friends. I run four.

Did you find this review helpful? Yes No

  • N/A
  • 12/14/2012 3:08:04 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggs

Pros: Nice Case

Cons: Not enough hookup for HDMI etc.. Way too small..Not enough power- Power Supply too small..for new processors and Hard Drives...

Mid Tower Cases is suppose to look bigger not smaller..

1 out of 4 people found this review helpful. Did you? Yes No

  • Libs
  • 11/26/2012 10:43:54 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsSturdy and reliable

Pros: I've been using this case for four years now and it hasn't let me down.
Installing parts is always a simple process and the stock fan and PSU have been chugging along without any issues for some time now, even after I let the case get rusty in a cold garage for six months!

Cons: Front USB ports are occasionally a little too tight for my flash drives.

Other Thoughts: Sturdy, reliable case with a comfortable amount of features.

Did you find this review helpful? Yes No

  • powermatt
  • 11/22/2012 9:58:35 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsBest ATX case for the money

Pros: Well laid out, quiet, simple and understated design.

Cons: The front dust filter drops out from the bottom, making it somewhat annoying to clean.

Other Thoughts: I really can't say enough about Antec's Sonata III case. It's as quiet as they say it is, it's well laid out (the sideways HD trays are very easy to work with), and the design is good looking but simple. It comes with Antec's 500 watt earthwatts green series PSU, which is a great PSU. I've got two of these running 24x7 side by side and neither has ever had a problem (one runs vmware esxi, the other ubuntu server for NFS storage). One is running an AMD FX-8120 on the stock cooler and it has no issues keeping it at safe temps. It you want a simple case with a solid power supply, you can't go wrong here.

Did you find this review helpful? Yes No

  • MacAttack
  • 11/6/2012 4:49:32 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsNice box, Odd PS connectors

Pros: Very attractive case that runs quiet.

Cons: No documentation included for power supply and connectors, which wouldn't be a big deal IF they were typically labeled and used a standard configuration. Example: The ATX 12V normally would be a 8 pin connector. This PS has two separate 4 pin connectors labeled LM and MR that should be installed side by side. However the picture on the box shows a standard ATX 12V connector labeled ATX/EPS. Go figure.

Other Thoughts: It would have been nice if the power button extended through the front door panel.

Did you find this review helpful? Yes No

  • N/A
  • 8/18/2012 2:22:07 PM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggsLove it

Pros: It's high quality in every way. I've owned this case for four years.
I've found that hard drives tend to last longer in this case than in my other cases, and I believe it's because of the airflow and mounting design.
The metal is high quality and has no sharp edges. It's a very easy case to work with.
All the hardware and power connectors I needed were provided.

Cons: You pay up front for quality, but it's worth it.

Other Thoughts: I've owned this for four years and put it to heavy use. I've replaced the power supply once, with another Antec power supply. It's been worry-free otherwise.

Did you find this review helpful? Yes No
