Item#: N82E16811147180

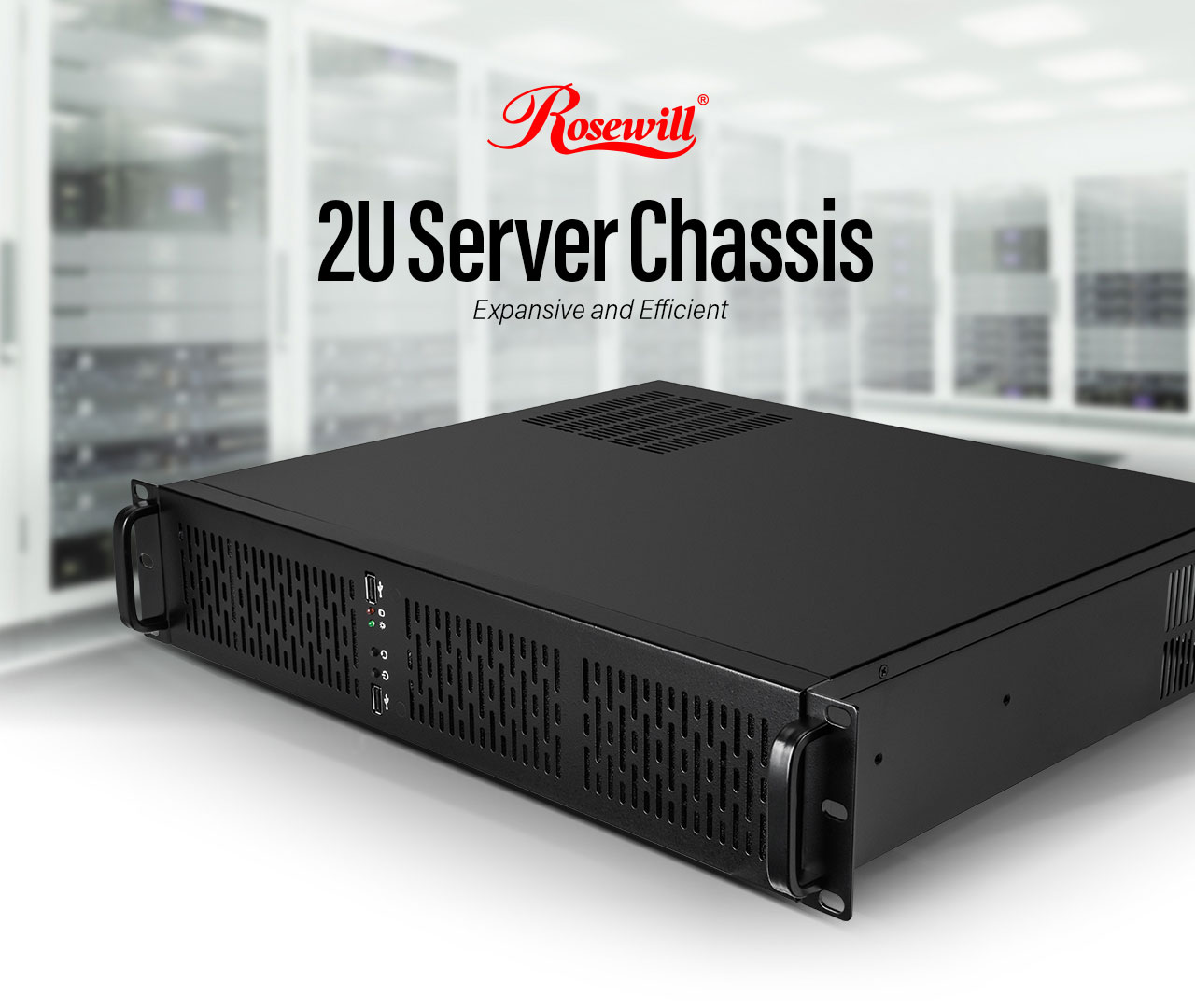

Rosewill RSV-Z2600 Black Metal / Steel, 1.0 mm thickness, 2U Rackmount Server Chassis, 4x 3.5" Internal HDD Bays, 3 Included 80mm Cooling Fans

  • 4 x Internal 3.5" HDD Bays
  • 3 max / 3 included 80mm Fans
  • Support Micro-ATX MB
  • Support ATX PS2 Power Supply
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

Learn more about the Rosewill RSV-Z2600




Chassis Type
Form Factor
Case Material
Metal/ Steel (SGCC), 1.0 mm thickness
Motherboard Compatibility
Maximum holding: 9.6 x 9.6 Micro-ATX


Internal 3.5" Drive Bays
Expansion Slots

Front Ports

Front Ports
2 x USB 2.0

Cooling System

80mm Fans

Physical Spec

L x W x H: 15.0" x 17.1" x 3.5" (381 x 434 x 90mm) (15.9" x 19.9" x 3.5" (405 x 482 x 90mm; including handle & Rackmount Brackets))
18.7lbs. net

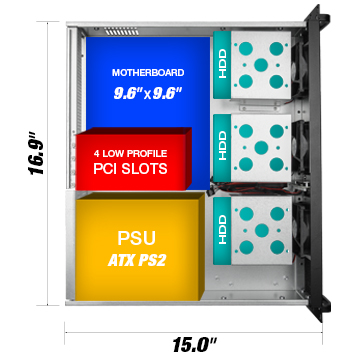

RSV-Z2600 can carry a total of 4 x internal 3.5" HDD

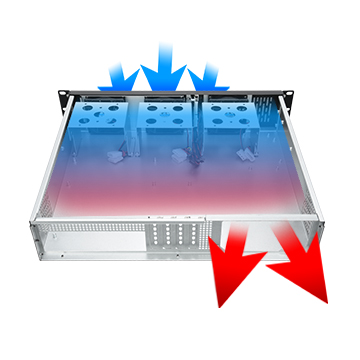

Cooling design can carry up to 3x front 80 mm cooling fan, all cooling fans are included in RSV-Z2600

Special design for adding 4 pieces of add-on cards in the system
Special Ventilation holes on top of the PSU location for better heat management

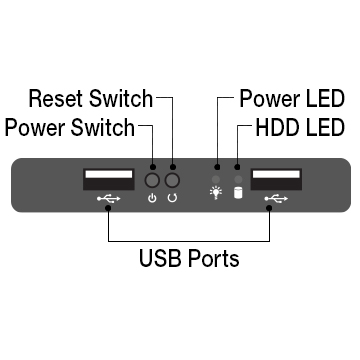

2x USB 2.0 connector in front panel.


Package Contents
RSV-Z2600 Server Case
Screw Sets
Other Accessories

Quick Info


  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year

Customer Reviews of the Rosewill RSV-Z2600

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Dan F.
  • 3/4/2014 3:50:45 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs8-Core NVR Server

Pros: Needed a 2U case for an 8 core AMD FX based NVR server for 4 IP cameras. Worked well for what I needed, I had planned to cut a hole directly above the CPU fan and use a custom duct to bring in fresh air. I did this and temps are low, otherwise temps skyrocketed. This worked in my rack as this is the top server. Fan filter in the front of the case gets dusty quickly. I vacuum it off from the outside of the case on a monthly basis. I'm glad the filter stops so much dust.

Cons: None, perfect for my needs. Would buy another.

Other Thoughts: Using an SSD for the OS to keep case temps down and 4 TB drive for video camera feed storage. MATX motherboard and 450w full sized ATX power supply. I wouldn't want to put much more in this case. Vent in top of case for PSU works great (again this is the top server in my rack). Ended up removing extra hard drive bay parts to allow better air flow.

Did you find this review helpful? Yes No

  • 1/10/2014 11:07:24 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsGood Cheap Server Rack Mount Case

Pros: Small design so it doesn't take up much room. Everything does fit inside, although somewhat cramped. If you have a heat problem, have a beefy PSU to run all of the fans. Fits standard size PSU. PCI cards will be the smaller form factor to work w/ small form factor mounting plates. 2 Front USB. Comes with internal fans on HDD bays.

Cons: Wouldn't use anything other than a MATX board. Space is at a premium. Wouldn't advise more than 3 HDD unless you have low profile RAM. Even then, pushing it.

Other Thoughts: For cheap, it does exactly what I need it to. Nothing fancy about it but it is solid enough to last.

Did you find this review helpful? Yes No

  • Nicholas L.
  • 10/27/2013 8:22:13 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsWorks for me

Pros: Cheap 2U rack mounted chassis. It fits a regular sized ATX power supply. Needed to replace my 4U and make space so I replaced it with this 2U unit.

Cons: Cannot used a DVD drive with this case. Has some sharp edges. Needed to buy additional rails since the 4U chassis rails did not fit with this case and were about the same cost as the case.

1 out of 1 people found this review helpful. Did you? Yes No
