Item#: N82E16811163218

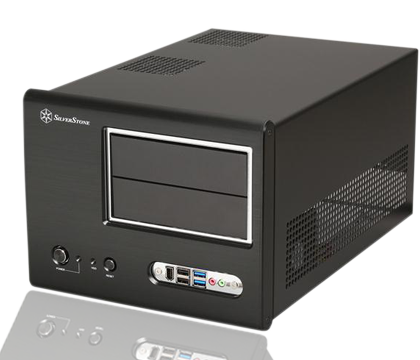

SilverStone Sugo Series SG01B-F-USB3.0 Black Aluminum front panel, SECC body MicroATX Desktop Computer Case with 2 x USB3.0 + 2 x USB2.0 ports

  • Aluminum front panel, SECC body MicroATX Desktop
  • USB 2.0 x 2, USB 3.0 x 2, IEEE 1394 x 1, Audio x 1, MIC x 1 Front Ports
  • 2 External 5.25" Drive Bays
  • 2 Internal 3.5" Drive Bays
ICON Loading...
SG01B-F
Advancing the Small Form Factor
title

The SG01-F takes another step forward in both performance and capabilities over the Sugo's original aluminum chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the case still keeps the smaller dimensions of its predecessor intact. The now classic Sugo styling and proportions continue to stand out from lesser SFF designs while its tried and true chassis layout still impresses with its standard form factor capacity. Built based on a brand new steel structure, the SG01-F will again become the standard for builders looking to build quality SFF computers.

Features

feature
  • Steel structure for silent builds
  • Cleanly styled aluminum front panel
  • Enhanced cooling layout for high performance
  • Dual 5.25" and 3.5" drive bays
  • Micro ATX motherboard & ATX PSU compatible
  • Extended-length expansion cards support

feature2

Power button, LEDs, and reset button

feature3

Front I/O ports

feature4

Rear view close up with improved ventilation and reversible PSU mounts

feature5

Top expansion cooling vents for 80mm fans

feature6

Dual 5.25-inch drive bays

feature7

Included 80mm fan for hard drive cooling

feature8

Included 80mm fan for expansion exhaust

feature9

Outfitted with 14.5" long ATI Radeon HD 2900XTX 1GB GDDR4 (OEM version)

Dimensions

Dimension

What's in the Box

box

Learn more about the Silverstone SG01B-F-USB3.0

Model

Brand
SilverStone
Series
Sugo Series
Model
SG01B-F-USB3.0

Spec

Type
MicroATX Desktop
Color
Black
Case Material
Aluminum front panel, SECC body
With Power Supply
No
Power Supply Mounted
Top
Motherboard Compatibility
MicroATX
With Side Panel Window
No

Expansion

External 5.25" Drive Bays
2
External 3.5" Drive Bays
No
Internal 3.5" Drive Bays
2
Expansion Slots
4

Front Ports

Front Ports
USB 2.0 x 2, USB 3.0 x 2, IEEE 1394 x 1, Audio x 1, MIC x 1

Cooling System

80mm Fans
2
120mm Fans
No
Side Air duct
No

Physical Spec

Dimensions
10.35" x 8.35" x 15.47"
Weight
10.8 lbs.

Features

Features
Steel structure for silent builds

Cleanly styled aluminum front panel

Enhanced cooling layout for high performance

Dual 5.25" and 3.5" drive bays

Micro ATX motherboard & ATX PSU compatible

Extended-length expansion cards support

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Silverstone SG01B-F-USB3.0

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Phillip O.
  • 12/17/2012 2:44:04 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSFF=YES! Tight???= Extremely!

Pros: Beautiful Fit and finish, inside & out. Fine workmanship and details.

Cons: Did I mention that it's a VERY tight squeeze to get the motherboard in? Literally, not a millimeter to spare. depending on your cooling solution, the power supply is also ridiculously tight!

Other Thoughts: I chose this case for my SFF upgrade/new build, because I have the 'original' version, and love it. I put in the Asus M5A88-M with the Silverstone 'low profile' NT06-Pro cooler, and could barely get it into the case. Wasn't really sure I was going to be able to, it took some significant gymnastics. Then I had to remove the fan guard from the Silverstone Strider ST60F PSU to get it to fit onto the top of the cooling fins! There is no room wasted in this case!

1 out of 1 people found this review helpful. Did you? Yes No
