iStarUSA D-400-7P Black 1.2mm SECC Zinc-Coated Steel (Japan Made) (Main Chassis) 4U Rackmount Compact Stylish Chassis 7 External 5.25" Drive Bays

  • 7 External 5.25" Drive Bays
  • 1 80mm Fans
  • Pin It
  • Email this page
ICON Loading...

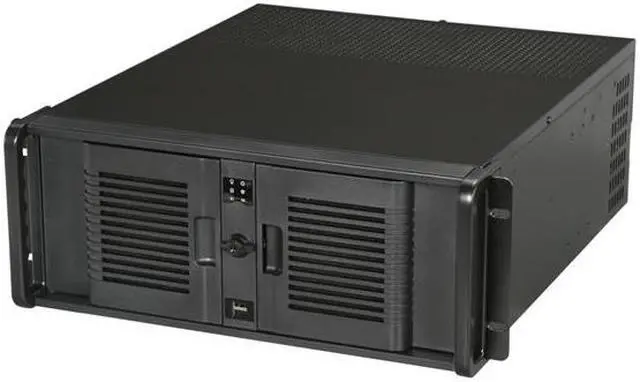

iStarUSA 4U Compact Stylish Rackmount Chassis

The iStarUSA 4U industrial rackmount chassis D Storm D-400-7P, combined with the BPU or T Series, enables hot-swappable storage capabilities. It also supports up to seven add-on cards and total storage capacity up to nine storage drives for RAID configurations. D-400-7P provide your server or cluster maximum reliability and performance. Optional Aluminum Body reduces total chassis weight and also provides enhanced thermal cooling solution.

Features

StarUSA

  • Two Front Access USB 2.0
  • 80mm Cooling Fan
  • Removable Air Filter
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Optional Aluminum Chassis



Specifications

StarUSA

RoHS Compliance Version Yes
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 1
5.25" Drives: 7
Indicators Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches Power ON/OFF, System & Alarm Reset
Expansion Slots 7
Security Front Bezel
Material of Front Bezel Plastic
Material of Handle SECC Zinc-Coated Steel
Material of Main Chassis 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel Black
Color of Main Chassis Black
Front Connector Front USB 2.0 x 2 Connector
Air Filter Removable & Washable
Motherboard Size 12 x 9.6 (ATX, microATX)
Cooling Fan 1 x 80mm
Optional Fan: 1 x 80mm
Dimensions (W x H x D) 19.0 x 7.0 x 20.8 inches
(482.6 x 177.8 x 528.3mm)

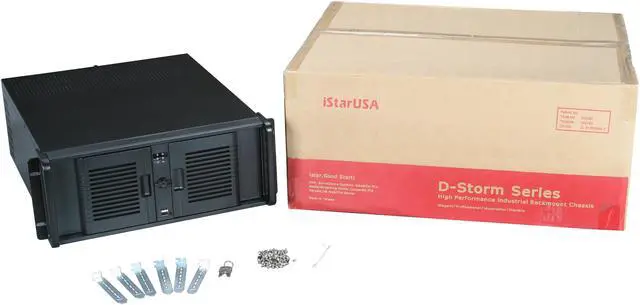

What's in the Box

StarUSA

Learn more about the iStarUSA Inc. D-400-7P

Model

Brand
iStarUSA
Model
D-400-7P

Spec

Chassis Type
Rackmount
Form Factor
4U
Color
Black
Case Material
1.2mm SECC Zinc-Coated Steel (Japan Made) (Main Chassis)
Motherboard Compatibility
12 x 9.6 (ATX, microATX)

Expansion

External 5.25" Drive Bays
7
External 3.5" Drive Bays
1
Internal 3.5" Drive Bays
1

Front Ports

Front Ports
2 x USB 2.0

Cooling System

80mm Fans
1

Physical Spec

Dimensions
20.80" x 19.00" x 7.00"

Features

Features
Color of Front Bezel: Black

Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )

Switches: Power ON/OFF, System & Alarm Reset

Security: Front Bezel

Removable Air Filter

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the iStarUSA Inc. D-400-7P

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Austin H.
  • 6/11/2014 5:34:56 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsiStarUSA D-400

Pros: Price, Shipping Speed

Cons: Gaps around case cutout for the 5.25" bays, Not a lot of paperwork

Other Thoughts: The one problem with internet shopping is that you can't inspect the item for yourself. Can't look at quality or all of the little pro's and con's that will make or break the sale. However, despite all that I decided to go with this server case and I have to say I'm very happy with it. In terms of overall quality I would place this in the upper half of the mid range in quality. Its well built and sturdy, but you can tell that its not made like a Swiss watch like some of the $500+ cases. That being said, what really made me like this case was all of the little things that they don't tell you. For example, not only does it come with a lifetime supply of screws for those like me who loose them, but it also came with 4 additional black painted fan mount screws to replace the silver ones that will come with a second 80mm fan if you purchase one. On top of that they send you a second support bar, so if you have a vertical CPU cooler, the second support bar can be mounted in front of it in place of the original. Another aspect I really like are the air filters on the front doors are easily removed for cleaning. Also, I adore black interiors for cases and this case was a piece of cake to disassemble to paint black and then reassemble.

The only dislike/complaint I have for this case is that the cutouts behind the doors for the 5.25" bays are way too big. You can see around them and into the case. I'm still working on a way to seal it off.

Who would I recommend this case for:

After living with this case for a few weeks, working on it and customizing it, this case is really designed for a home server or small work server. It provides the user with a solid server case for an affordable price and some of the amenities of a server center. The interior is roomy and easy to work in, plenty of space to lay cables. All in all, great case.

Other thoughts:

I have a Zippy Emacs 460W redundant power supply and its a bit long for the case. It fits, but only because I have an empty hard drive rack on the 3 stack of 5.25" bays for the power cords to make the turn into the case. Also, I use a Cooler Master Hyper 212 CPU cooler and it was just a little tall for the case. I took care of that though by grinding down the copper stubs on the top most air fin. Finally, if you are going to have one of those 4 in 3 hard drive racks, I'd recommend putting it in the 3 stack of 5.25" bays above the little bay. That case cage has a pad to reduce vibrations whereas the 4 stack does not.

Hope this review helped you make the right choice.
