Item#: N82E16811353042

DIYPC Mirage-D1-Y Black/Yellow SECC ATX Mid Tower Computer Case

  • SECC ATX Mid Tower
  • 1 x USB 3.0; 2 x USB 2.0; Audio In/Out (HD) Front Ports
  • 2 External 5.25" Drive Bays
  • 4 Internal 3.5" Drive Bays
  • Pin It
  • Email this page
ICON Loading...

Black & Yellow SECC ATX Mid Tower Computer Case


Features

DIYPC
  • Built-in SD/MMC/TF card reader
  • Full black interior, Intel TAC 2.0
  • Advanced cable management design: 24mm
  • Advanced Bottom-Mounted PSU Design
  • Top mounted IO ports – USB 3.0 for up-to-date high speed data transfer
  • Screw-less design for 5.25" Devices & 3.5" HDDs
  • Front panel dust-proof mesh design
  • Build in 3 x fans provide great cooling performance
  • Easy-clean PSU dust filter at bottom
  • Seven PCI slots provide flexibility for multiple graphics cards solutions
  • Support up to 160mm CPU cooler
  • Support up to 400mm VGA card
  • Radiation protection design, safe and environmental

Gallery

DIYPC DIYPC DIYPC DIYPC DIYPC DIYPC

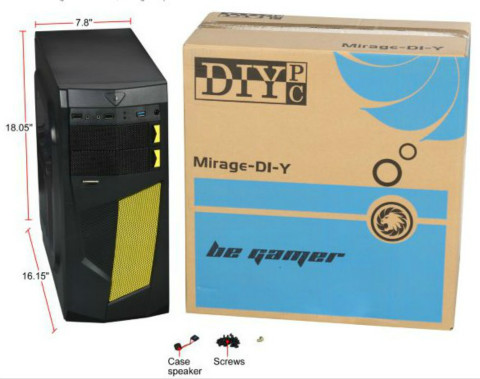

What's in the Box

DIYPC


Learn more about the DIYPC Mirage-D1-Y

Model

Brand
DIYPC
Model
Mirage-D1-Y

Spec

Type
ATX Mid Tower
Color
Black/Yellow
Case Material
SECC
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Micro ATX / ATX
With Side Panel Window
Yes

Expansion

External 5.25" Drive Bays
2
Internal 3.5" Drive Bays
4
Internal 2.5" Drive Bays
2
Expansion Slots
7

Front Ports

Front Ports
1 x USB 3.0; 2 x USB 2.0; Audio In/Out (HD)

Cooling System

120mm Fans
1 x Front 120mm Yellow Fan (pre-installed)
1 x Side 120mm LED Yellow Fan (pre-installed)
1 x Rear 120mm Yellow Fan (pre-installed)

Physical Spec

Dimensions
18.05" x 7.8" x 16.15" (H x W x D)
Weight
12.00lbs

Features

Features
Built-in SD/MMC/TF card reader

Full black interior, Intel TAC 2.0

Advanced cable management design: 24mm

Advanced Bottom-Mounted PSU Design

Top mounted IO ports – USB 3.0 for up-to-date high speed data transfer

Screw-less design for 5.25" Devices & 3.5" HDDs

Front panel dust-proof mesh design

Build in 3 x fans provide great cooling performance

Easy-clean PSU dust filter at bottom

7 PCI slots provide flexibility for multiple graphics cards solutions.

Support up to 160mm CPU cooler

Support up to 400MM VGA card

Radiation protection design, safe and environmental

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the DIYPC Mirage-D1-Y

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Christopher A.
  • 10/9/2014 6:11:01 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsFeatures and fashion on a budget

Pros: airflow, card reader, usb3.0, side panel, and tooless drive bay. "the drive bay is cheap and takes some effort to make it secure.

Cons: Its cheap and flimsy, be slow and steady with screws or you may strip a hole to the point it wont accept standoffs. Also my power button switch was not soldered to a wires running to the board connector. I had to remove the power switch and replace it with the momentary switch from the reset button. This would of been easier if i'd had a soldering iron laying around the house to reconnect the wire to the switch. All things considered its a great case for less than $40.00.

Other Thoughts: I'd buy it again for a budget build.

Did you find this review helpful? Yes No

  • Christopher A.
  • 10/8/2014 5:32:03 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGreat little value case

Pros: It has lots of extras for such a cheap case. Side window, 3x 120mm fans, card reader, and usb 3.0.

Great case my for 10 year old's light gaming needs.

Cons: This case is cheap and i knew that when i bought it. However the metal is thin. You should work slow and steady when threading screws in this case. If not then you'll probably strip some of the holes.

Also the momentary switch for power was not soldered properly. One of the wires was just hanging free, and i don't have a soldering iron laying around the house. I had to take the momentary switch from the reset button and swap it with the power button. This compounded a problem i already had. I'm using an old del board and had to manually wire the front IO to the board. I have lots disgust towards pointless proprietary changes in hardware.

Other Thoughts: If it was just Price + features i'd give this thing a 5 star. Broken switch forces me to give it a 4 star.

Did you find this review helpful? Yes No

  • Eric F.
  • 9/10/2014 4:09:41 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsWanted to try something new

Pros: Pricing of 38$
Side panel + 120mm slot on the window
Cable management for a cheap case

Cons: Only the top PCI slot is able to be removed and then put back in
The see-through portion of the side panel was clearly not inspected before this product what shipped out (it has an oily reflection and seems like you are looking though a partially fogged window)
The 120mm fans don't move much air (but this was to be expected)

Other Thoughts: I got this case quite quickly from Newegg, but like a lot of cases part of the chassis (under the front 120mm fan) was bent due to improper shipping quality.
I REALLY hate the fact that the side window was not inspected before it was shipped out (this was the manufacturers fault).
I bought this case for two main reasons, the first being that I wanted to do a yellow theme and it fits that quite well. My second reason was purely for the side window that included a 120mm fan.

I'm knocking off two eggs purely because of the manufacturers lack of quality control. This case would have a solid four eggs otherwise.

I've had various 50$ computer cases (Antec One, Bitfenix Alpha, NZXT Source 210, Rosewill Challenger and even Sentey Optimus), and this actually feels better built. I feel this case is definitely worth 40-50$ if you receive it in the proper condition.

Did you find this review helpful? Yes No

  • will g.
  • 8/22/2014 2:35:48 PM
  • Tech Level: Average
  • Ownership: 1 day to 1 week

4 out of 5 eggsSolid case, good price

Pros: Price, included fans, good airflow, LED fan, window,

Cons: The included instructions were terrible, I couldn't find where the SSD/HDD were supposed to go, power button can be easy to hit

1 out of 1 people found this review helpful. Did you? Yes No

  • Torquino W.
  • 8/5/2014 2:18:29 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat Case

Pros: Pretty impressive case for the price. Plenty of access and no sharp edges. Came with all the neccessary screws and all the HDD mounts lined up. Fans came pre-installed and no issue with cable lengths. Airflow into and out of case is not obstructed by any means....1X SSD, 1x HDD, and one optical drive near the front of the case, yet plenty of airflow through out the case. Black and Yellow color of the case matched the ram and ASUS motherboard.

Cons: Case manuel was a zeroxed copy out of a manuel, but not an issue since the case seems to be pretty much self explanitory IMHO.

Other Thoughts: Easiest case I have encountered to date. Looks geat.

4 out of 4 people found this review helpful. Did you? Yes No
