Question 1

Does this case use a micro atx psu or an atx one? Thanks

Accepted Answer

I've used a regular ATX PSU(not micro).

It fits snugly inside the case. Case is not the best in the market but it is appropriate for the low price.

Question 2

Will this case fit a standard size power supply or do I need a micro ATX PS? Thanks

Accepted Answer

Have a std. Cooler-Master 550W in mine.  The only 'fit' issue was that my large add-on CPU fan just cleared the HD cage with the drive installed - which you want to take into account with any smaller case.  Overall, decent case for the $$.  Cheers CB

Question 3

Aside from the power supply will my HP Pavilion Slimline s3720f fit (I have a standard ATX power supply to use) in this case?

I tried to link the motherboard but NewEgg wont let me. It's an Irvine motherboard Micro-ATX: 19.0 cm (7.5 inches) x 17.3 cm (6.8 inches)

Also, FYI the optical drive is full size.

Accepted Answer

I'm no computer geek, but I would think if it's a micro-ATX, then it should work in this case. The only problem I found is that it's a tight fit if your memory sticks have heat-sinks on them. If they do, you'll need to install the board w/memory installed before the HDD. It will fit a full size optical drive w/o a problem. There isn't much room for cable organization, and the clips that lock in the HDD and optical drive are kinda cheesy, but will work if you're patient with them. It's been a decent case for me, but I'm using an MSI FM2-A75MA-E35 FM2 AMD A75 (Hudson D3)  motherboard w/CORSAIR Vengeance 8GB memory, and I just use the on-board video since my AMD A10-6800K Richland 4.1GHz (4.4GHz Turbo) runs it fine. I'm not a gamer, so I don't care about a fancy graphics card. I've read that you can put in a full size graphics card w/o a problem, but will need a decent Power Supply. Good luck w/it.

Question 4

I am getting an error on my parts list that says "Cougar Spike MicroATX Mini Tower Case needs full-height expansion slots but has none" is this true?

Accepted Answer

Just today I finish my new built with a:

ASRock B75M-GL R2.0 LGA 1155 Intel B75 SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard with UEFI BIOS

The case came with 4 expansion slot’s and they all line up just fine with this M/B………………

An expansion slot is a type of port or plug on a computer motherboard that allows extra devices or "expansion cards" to attach to the computer and add new types of functionality to the computer.

Purpose
•	The purpose of expansion slots is to give computers flexibility and allow for hardware upgrades; for example expansion slots allow you to install new modems, sound cards and video cards on a computer.
Types
•	The common types of computer expansion slots used in modern computers are PCI, AGP (Accelerated Graphics Port) and PCI-Express.
Features
•	PCI (Peripheral Component Interconnect) expansion slots are used to connect all sorts of devices such as network cards, modems, sound cards and older video cards. AGP slots are used to connect AGP video cards, while PCI-Express slots are typically used to connect more advanced video cards.
Benefits
•	Expansion slots allow computer users to upgrade and tailor their computer's devices to fit their needs; without expansion slots, it would be difficult to keep a computer up to date and would likely force people to buy new computers more often to stave off obsolescence.
Considerations
•	AGP is an older type of graphics card expansion slot that has been replaced by PCI-Express slots in many new computers.

Question 5

I don't have a need for USB 3.0 and my motherboard does NOT have a 3.0 connector on it. Does this case's 3.0 connector also have a USB 2.0 connector for the USB 3.0 port so I can still use both in the front? I would appreciate an answer. THANKS!

Accepted Answer

no, the usb 3.0 slot in the front has a cable on the backside of it that is usb 3.0. it looks way different than the usb 2.0 cable on the left side of the case. there may be affordable usb adapters to make the cable work on usb 2.0 mother boards. i just use and extension cable to run from the back of the pc to the front, and keep the one usb 2.0 slot open so i can plug an mp3 player up and transfer new music. i think the case looks super cool so that's why i picked it and it was affordable.
btw i don't know what the deal was but i had to glue gun the motherboard into the case because the motherboard and case did'nt match up. never had this problem before on like ten other builds. don't know if it was the case or motherboards fault. i used a micro atx motherboard made by biostar. so i guess it's the cases fault, since ive never heard of cougar.

Question 6

What are the overall dimensions?

Accepted Answer

Clicking on the specifications tab on the page, it says 7.09" x 14.57" x 16.73".

Question 7

Could you fit a Cooler Master Sedion 120v into one of the side 120mm slots? I mean in terms of space. Thanks.

Accepted Answer

I tried this with the H80 and it would not fit, this seems to be the same width or close. I could not close the case because the H80 hit the 120mm exhaust fan. If you leave out the exhaust fan you may be able to work it, but I do not recommend it.

Question 8

does this case work with the  MSI Gaming 970 Gaming AM3+ AMD 970 SATA 6Gb/s USB 3.0 ATX AMD Motherboard?

Accepted Answer

You should check with the HP specs. This drive is 2.5" in size. When I bought a replacement SSD for my laptop, it was a bit smaller than the 2.5" spec. You should call customer service at HP to see if it will fit.

Question 9

does this support the ASUS M5A97 R2.0 AM3+ motherboard?

Accepted Answer

Well I'm unsure. I ordered the ASUS M5A78L-M/USB3 AM3+ AMD 760G + SB710 USB 3.0 HDMI uATX AMD Motherboard. It works great for me. Hope this helps.

Question 10

What power supplies will work with this case ?

Accepted Answer

Any PS will fit the wattage is determine by the Motherboard and cpu  that will be used.

Brand	COUGAR
Model	Spike

Type	Micro ATX Mini Tower
Color	Black
Case Material	Steel / Plastic
With Power Supply	No
Power Supply Mounted	Top
Motherboard Compatibility	Micro ATX
Side Panel Window	No
Dust Filters	Yes

External 5.25" Drive Bays	2
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	2
Internal 2.5" Drive Bays	1 (at bottom cover)
Expansion Slots	4

80mm Fans	No
120mm Fans	1 x 120mm Rear Fan
Side Air duct	No

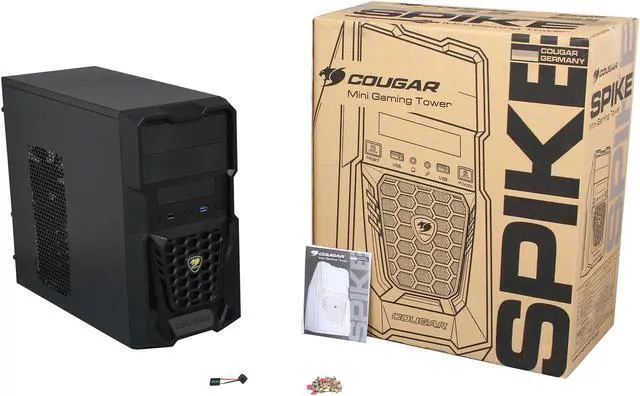

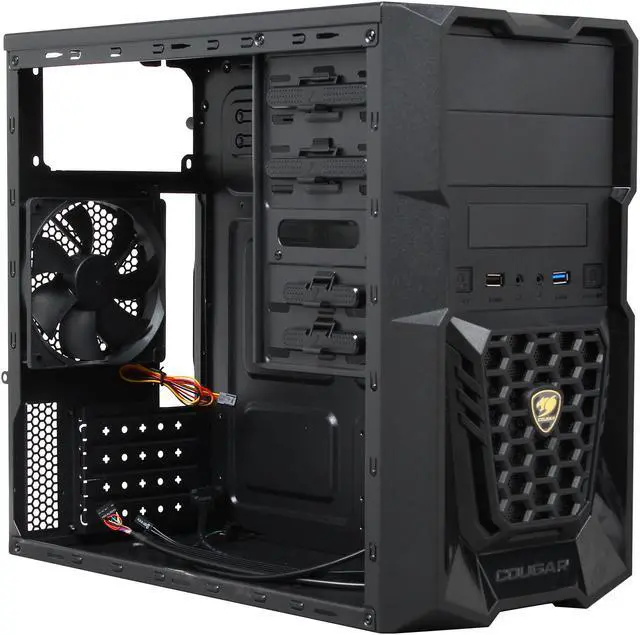

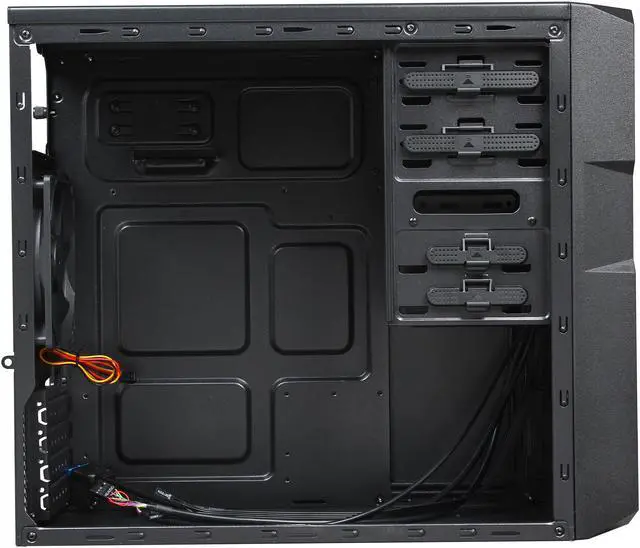

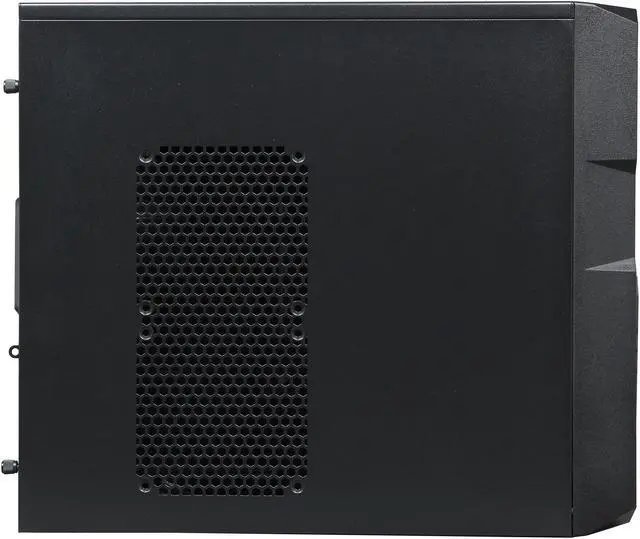

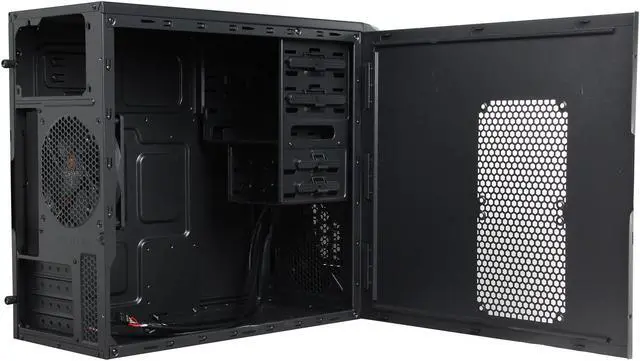

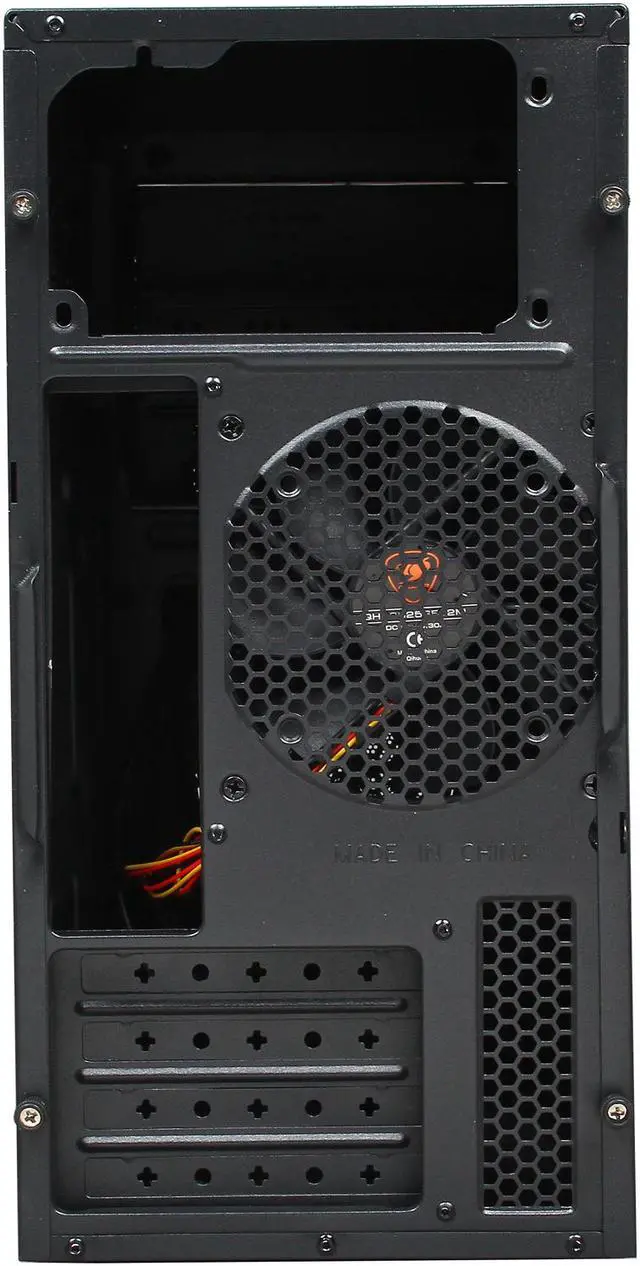

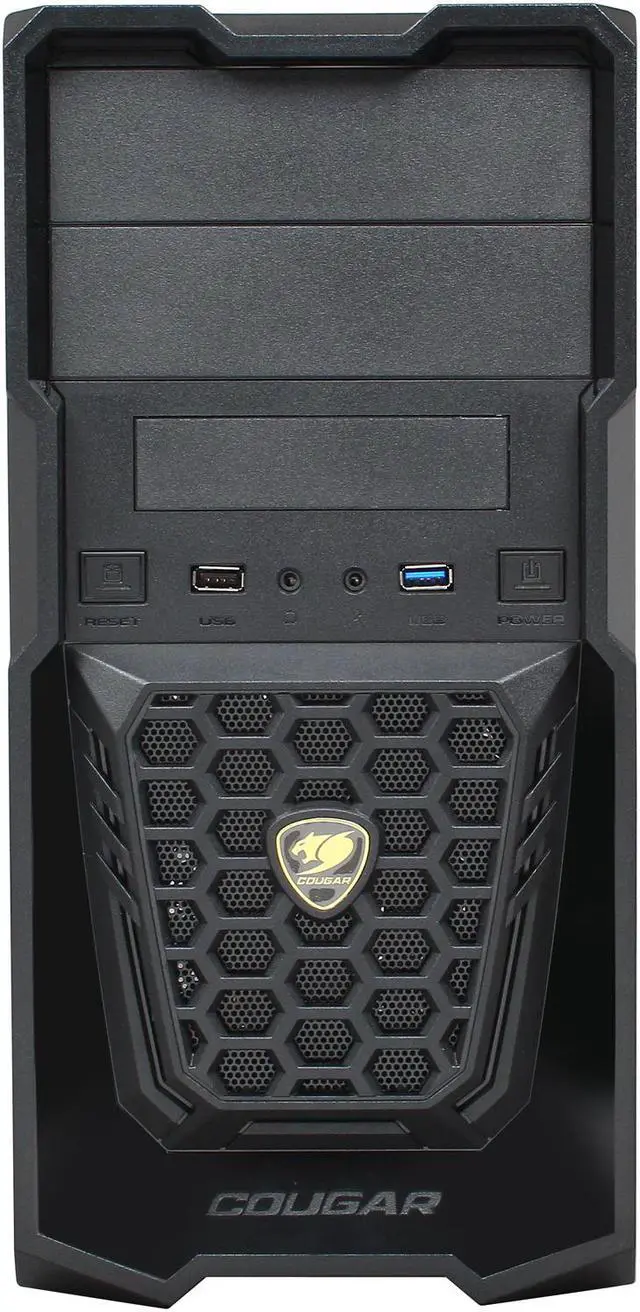

COUGAR Spike Black Steel / Plastic Micro ATX Mini Tower Gaming Case with USB 3.0 and 12CM Cougar Fan
