Item#: N82E16811984008

Phanteks PH-LEDKT_COMBO RGB LED Strip Combo Set

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • PH-LEDKT_COMBO

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
Phanteks PH-LEDKT_COMBO RGB LED Strip Combo Set

Phanteks LED strips are currently compatible with the Enthoo Luxe, Mini XL, Evolv ATX TG, and P400/P400S. These strips will match the exterior LED strips on either case and will change all 10 different colors.

Phanteks PH-LEDKT_COMBO RGB LED Strip Combo Set

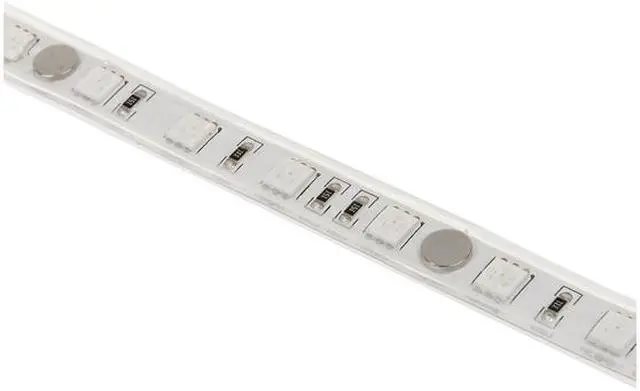

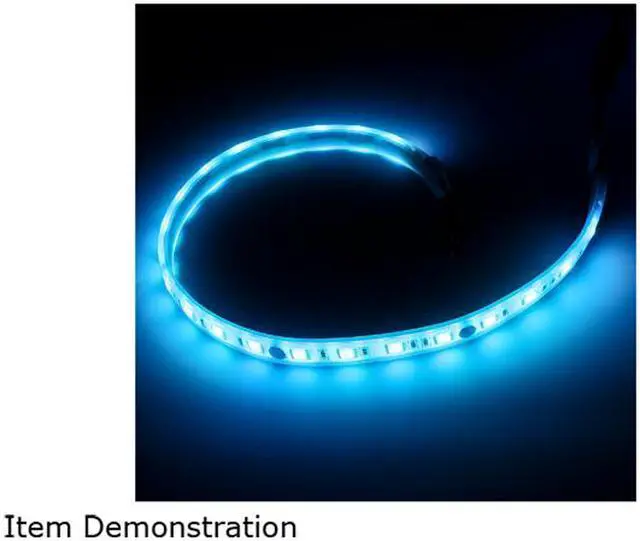

High-Brightness LED Chip
Our Phanteks RGB LED strips are extremely bright and it is a great addition to any case for interior lighting.

Magnetic with 3M stickers included
Phanteks RGB LED strip has integrated magnets in the silicone housing allowing for easy installation to the metal chassis. For aluminum chassis, our LED strip includes double-side 3M tape.

Phanteks PH-LEDKT_COMBO RGB LED Strip Combo Set

Flexible and Better Cable Management
With our 1 orientation connector, the color channels are always in the right position. The RGB LED strip is also chainable and can be expanded by adding more light strips.

Efficient, Low Profile and Long-lasting
The strip is made of flexible PCB material and comes with a silicone housing which is more durable compared to commonly used Epoxy strips. They will not dry up or crack over time. Long lasting and waterproof.


Phanteks PH-LEDKT_COMBO RGB LED Strip Combo Set

RGB LED Adapter for M/B Compatible 4-pin RGB Header
The RGB Combo Set comes with an RGB adapter that allows the LED strip to work with motherboards that features a 4-pin RGB header (+12V, G,R,B). This will allow you to control the LED strips with the motherboard's software and enhance the interior look of your case.

The Combo Set is compatible with universal chassis in combination with a compatible motherboard featuring 4pin RGB headers.

*RGB LED Adapter included with PH-LEDKT_CMBO only

Phanteks PH-LEDKT_COMBO RGB LED Strip Combo Set
Model RGB LED STRIP COMBO SET RGB LED STRIP 400MM
Model NO PH-LEDKT_CMBO PH-LEDKT_M4
UPC Code 886523000884 886523000877
Applications Phanteks chassis with RGB controller
Universal chassis in combination with M/B with RGB LED 4-pin (+12V, G, R, B) header
Phanteks chassis with RGB controller
Expansion on PH-LEDKT_CMBO

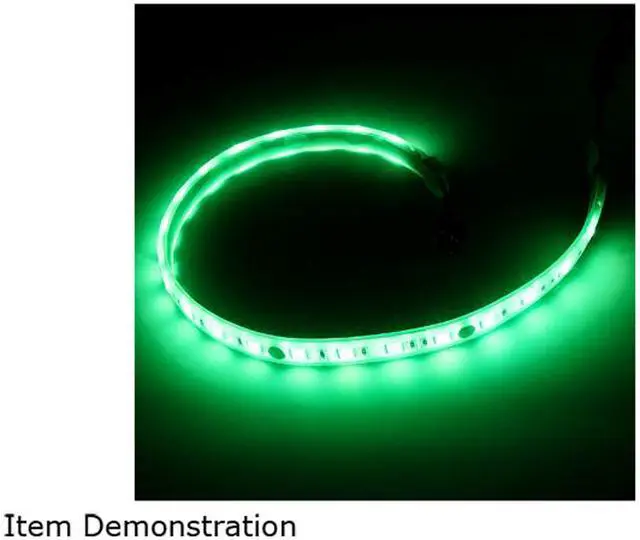

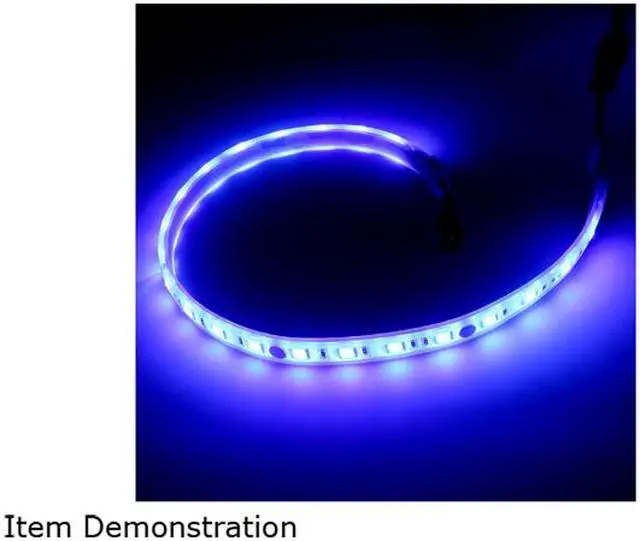

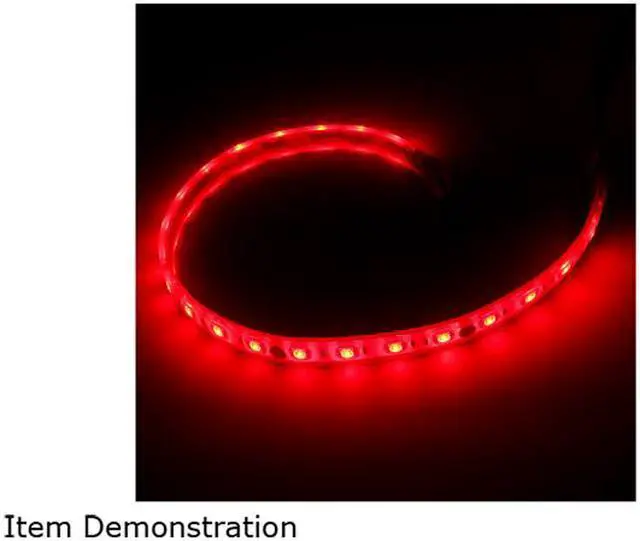

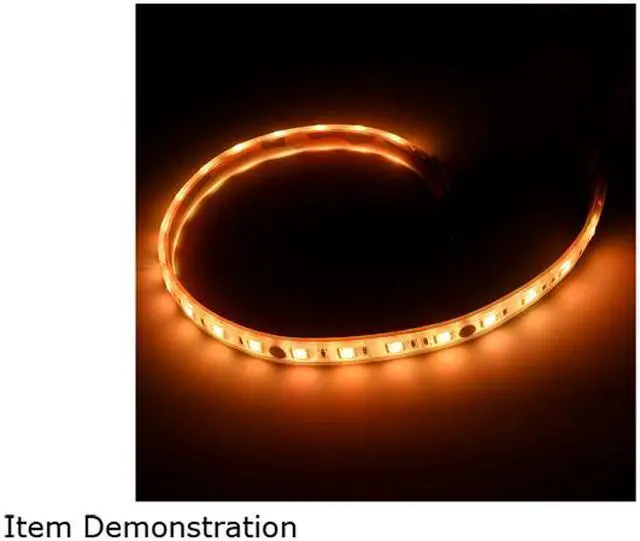

Color 10 colors with Phanteks Case RGB controller
Full RGB color spectrum with M/B RGB Control S/W

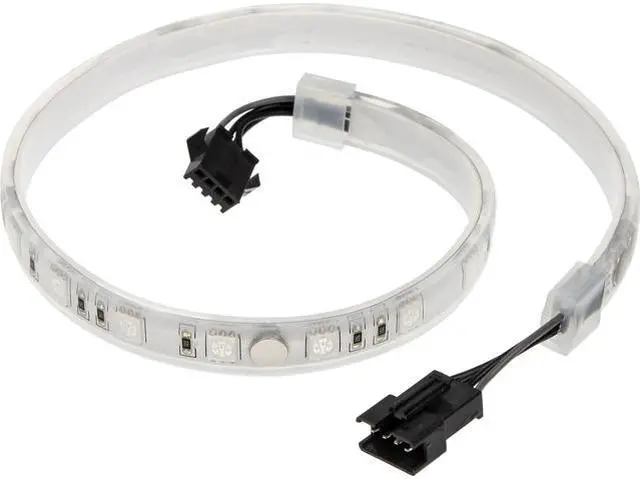

Connections
  • INPUT: Phanteks 4-pin (female) connector
  • EXTENSION: Male to Female extension cable M/B
  • ADAPTER: RGB LED adapter 4pin (+12V,G,R,B)
  • EXPANSION: 4-pin (male) connector
  • INPUT: Phanteks 4-pin (female) connector
  • EXPANSION: 4-pin (male) connector
Input Voltage +12V
Current (Single strip) MAX:0.42A
Current (Dual Strip) MAX:0.84A
Wattage (Single strip) MAX:5.04W
Wattage (Dual Strip) MAX:10.08W
Cable compatibility PHANTEKS 4-pin connector / *M/B 4-pin RGB header (12V, G,R,B)
LED Color 5050, Full Color R.G.B Chip
LED Number 21 LEDs/400mm LED strip
Magnet number 6 pcs per strip
MTBF 20,000 hrs

*RGB LED Adapter included with PH-LEDKT_CMBO only

Phanteks PH-LEDKT_COMBO RGB LED Strip Combo SetPhanteks PH-LEDKT_COMBO RGB LED Strip Combo SetPhanteks PH-LEDKT_COMBO RGB LED Strip Combo SetPhanteks PH-LEDKT_COMBO RGB LED Strip Combo SetPhanteks PH-LEDKT_COMBO RGB LED Strip Combo SetPhanteks PH-LEDKT_COMBO RGB LED Strip Combo Set

Learn more about the Phanteks Company PH-LEDKT_COMBO

Model

|
Brand
Phanteks
Model
PH-LEDKT_COMBO

Details

|
Specifications
Application:
RGB LED for Phanteks Enthoo Luxe, Mini XL, Evolv ATX Tempered Glass and Eclipse P400/P400S
M/B with RGB LED 4-pin (+12V, G,R,B) LED connector

Color:
10 colors with Phanteks Case RGB controller
Full color with M/B RGB Control S/W

Input Connector:
Strip 4-pin (+12V,G,R,B) connector
Male to Phanteks’ Case Female LED connector
Female to Phanteks extension LED Strip Male connector
RGB LED adapter 4pin (+12V,G,R,B)
Female to M/B RGB Male header (+12V,G,R,B)

Output Voltage: +12V
Current (Single strip): MAX:0.42A
Current (Dual Strip): MAX:0.84A
Wattage (Single strip): MAX:5.04W
Wattage (Dual Strip): MAX:10.08W

Cable compatibility:
PHANTEKS 4-pin connector
4-pin RGB LED Header (+12V,G,R,B)

LED Color: 5050, Full Color R.G.B Chip

LED Number: 21 LEDs/400mm LED strip

Magnet number: 6 pcs per strip

MTBF: 20,000 hrs

Product Dimensions: 0.40" x 17.70" x 0.17"

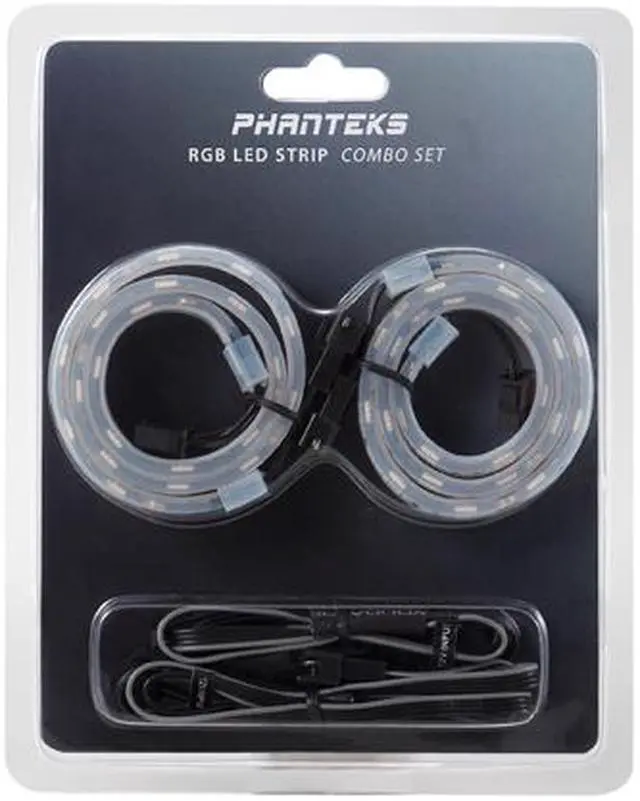

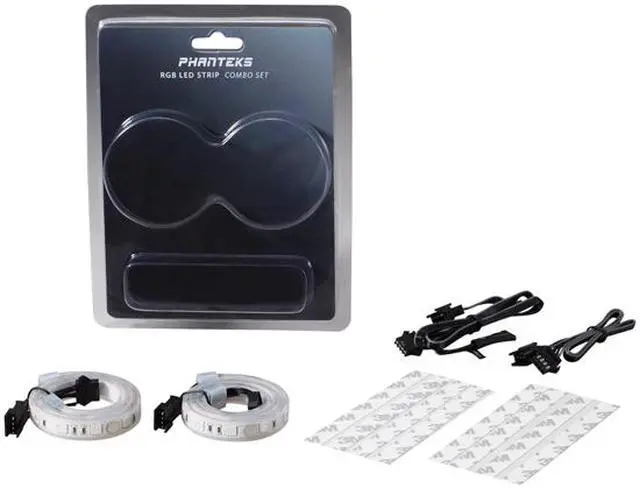

Scope of Delivery:
2x 400mm (15.7in) PHANTEKS RGB LED strip (PH-LEDKT_Combo)
1x 400mm (15.7in) Extension Cable
1x 700mm (27.5in) M/B RGB LED adapter
4x 150mm (5.9in) 3M Strip Stickers
1x M/B RGB LED Adapter User’s manual

Features

|
Features
High-Brightness LED Chip
Our Phanteks RGB LED strips are extremely bright and it is a great addition to any case.

Magnetic with 3M stickers included
Phanteks RGB LED strip has integrated magnets in the silicone housing allowing for easy installation to the metal chassis. For a really secure fit, our LED strip includes double-side 3M tape.

Efficient, Low Profile and Long-lasting
The strip is made of flexible PCB material and comes with a silicone housing which is more durable compared to others that uses Epoxy strips. They will not dry up or crack over time. Long lasting and waterproof.

Flexible and Better Cable Management
With our 1 orientation connector, you can rest assure that the connectors are in the right position. The RGB LED strip is also chainable so you expand the length by adding more light strips. Retail pack comes in 2x 400mm strips for better cable management.

RGB LED Adapter for Motherboard Compatible 4-pin Connector (+12, G,R,B)
M/B with 4pin RGB LED header (+12V, G,R,B) is compatible with PHANTEKS PH-LEDKT_COMBO
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
