Item#: N82E16812117614

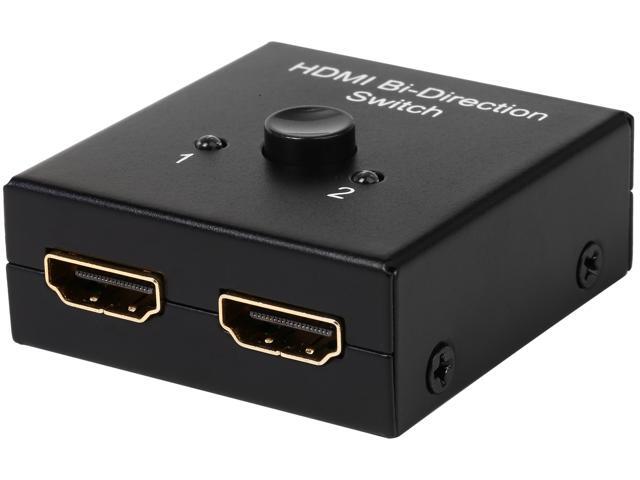

Coboc HM4K-ABSW-2 2 Port 2x1 or 1x2 HDMI Bi-Directional A-B/AB Switcher- manual control - 4K2K, 3D,1080P and HDCP

Sold and Shipped by Newegg

  • 2x1 or 1x2 HDMI Bi-Directional AB Switcher
  • 4K2K(3840/2160p@30Hz) Resolution
  • 1920 x 1080p@60Hz Resolution
  • Support 3D,HDCP,CEC
  • Metal Casing, in Black

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The Coboc HM4K-ABSW-2 is a versatile, high-speed bi-direction 4K2K HDMI manual switcher. It can function as a 2x1 HDMI switch to connect two HDMI sources to one HDMI-enabled display. It can also work as an A-B switch to connect one HDMI source to two HDMI-enabled displays. It supports a maximum resolution of up to 4K2K @ 30fps and 3D video output. You’ll enjoy superior video quality. It’s compliant with HDCP and CEC pass through, and is also power saving.

detailed view and application

detailed view and application

  • newegg A high-speed bi-direction manual switcher The Coboc HM4K-ABSW-2 is a bi-direction 4K2K HDMI manual switcher. It can be used as a 2 x 1 HDMI switch, for two HDMI source (BD or PS3) to one HDMI-enables display or HDTV. You can also use it as an A-B switch, for one HDMI source to one of the two HDMI display units. It delivers a blazing-fast data transfer rate of up to 3.4Gbps per channel (10.2Gbps in total) – no any signal degradation.
  • newegg High resolution support This switcher supports a maximum resolution of up to 4K2K @ 30fps, four times clarity of 1080p resolution, and also enables 3D video output. This means you can enjoy sharp, crystal-clear video on your HDMI-enabled display.
  • newegg Power saving This unit adopts integrated IC solution to significantly reduce power consumption. It consumes less than 15mA of current to run itself.

Learn more about the Coboc HM4K-ABSW-2

Model

|
Brand
Coboc
Model
HM4K-ABSW-2

Details

|
Type
HDMI 4K2K AB Switch
Color
Black
Cable Length
6 ft.
Ports
2
Specifications
Input: HDMI x 2
Output: HDMI x 1
HDMI V1.4b with HDCP/CEC pass-through
Video Amplifier Bandwidth:3.4Gbps/340MHz per channel, total up to 10.2Gbps
Ultra HD 4K2K(2160P) Resolution:3840 x 2160@24Hz/25Hz/30Hz & 4096 x 2160@24Hz
HD 1080P Resolutuion:1920 x 1080@60Hz
Color Depth : 12 bit per channel,total 36bit and xvYCC color space
3D Video Support:Full 3D such as 1080P@23.98/24Hz,720P@59.94/60Hz/50Hz
Audio Supports: high definition audio signals such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD),as well as standard LPCM stereo
Input DDC signal: 5.0 Volts P-P(TTL)
No external power needed
Max power consumption:5W
Enclosure: Black Metal Casing
Certification: FCC/CE

Environmental:
Operating Temperature: 0? to +70?
Operating Humidity: 10% to 85% RH (no condensation)
Storage Temperature: -10? to +80?
Storage Humidity: 5% to 90% RH (no condensation)
FCC,CE,Compliance

Package Included :
Main Unit
User manual

Connectors

|
Input Connector
2 - HDMI Female
Output Connector
1 - HDMI Female

Performance

|
Maximum Resolutions
4Kx2K - 3840 x 2160@24Hz/25Hz/30Hz & 4096 x 2160@24Hz

Features

|
Features
This is one device of 4K2K HDMI 2 ports bi-direction manual switcher. It can easily switch two routes of HD Source to one HD display or projector. Also it can switch single high definition video source easily between two displays.
It adopts integrated IC solution to significantly save power consumption.This version consumes less then 15mA of current to run itself.Not like the old version, which uses multiple discrete devices, needs about 40mA.
Can be used as a 2X1 HDMI Switch,for two HDMI source(BD or PS3) to one HDMI sink(Display or HDTV).Or, Can be used as a A-B Switch,for one HDMI source to one of the two HDMI dsiplay units
HDMI 1.4b , HDPC compliable and CEC pass-through
Clock rate up to 340MHz,bandwidth up to 3.4Gpbs per channel, total 10.2Gbps
Support high definition resolution 4K2K@30Hz,1080P@60Hz and 3D
Push button control
2 LED lights indicate the input / output selection and working status
Plug and Play,
No external power required,MAX operation current:15mA
Transmission distance of 26AWG High Speed HDMI Cable with Ethernet for 4K2K@30Hz
Input - 5 meter
Output - 5 meter
Transmission distance of 28AWG High Speed HDMI Cable with Ethernet for 4K2K@30Hz
Input - 3 meter
Output - 4 meter

Dimensions & Weight

|
Dimensions
1.9"(H) x 2.1"(W) x 0.75"(D)
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 0 day
  • Read full details

Customer Reviews of the Coboc HM4K-ABSW-2

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • David C.
  • 8/18/2015 12:31:12 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsDidn't last.

Pros: Worked as advertised at first. Used two HD TV's on one cable set top box. Saved getting a second set top box.

Cons: Received June 6, 2015. 2nd output failed August 17, 2015. Switched at most twice per day.

Other Thoughts: A day or two before the 2nd output failed, it had trouble with the audio. Has 1 year warranty, returning.

Manufacturer Response:

Dear Valued Customer,
Thank you very much for purchasing this unit.
We strive to provide the most reliable and highest quality products to our customers.

We do apologize. Your product is be defective; please contact our support team to assist you with warranty options.

Phone: 1- 800-575-9885
Email: rma@rosewill.com
Email2: techsupport@rosewill.com

We look forward to hearing from you.

Thanks,
Rosewill Customer Care

Did you find this review helpful? Yes No
