Tripp Lite PDUMH15 Metered 1U 120V 15A 15 ft Power Distribution Unit

(4) |

Write a Review

120V
15A
15 ft

PRODUCT DESCRIPTION

Tripp Lite's PDUMH15 Metered PDU is ideal for distributing and monitoring power from a UPS system, generator or utility wall outlet in high-density IT environments. It provides 13 outlets (one front-facing, 12 rear-facing) plus a digital meter that displays continuous power consumption data for the entire PDU, enabling IT personnel to monitor the PDU's load on site. The PDUMH15 features a reversible, all-metal housing with detachable mounting flanges and a switchless design to prevent accidental shutoff. It is configurable for 1U rackmount (horizontal), 0U (vertical), wall-mount, workbench, under-counter and similar installations. The PDUMH15 comes with a two-year warranty.

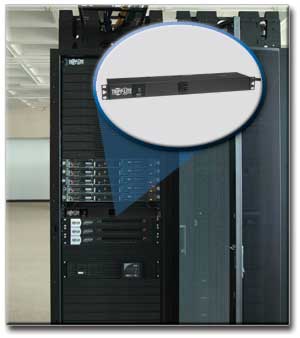

Reliable IT Power Distribution

The PDUMH15 is optimized for reliable distribution of alternate waveform AC power from a UPS system, generator or utility wall outlet to supported equipment in telecom, audio/video, security and other IT environments. It provides 13 total 5-15R outlets (one front-facing, 12 rear-facing) and a 15ft cord with 5-15P plug. The PDUMH15 features a rugged all-metal case, high-quality outlets and plugs, 15A circuit breaker and a rear-mounted TVSS grounding lug. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more.

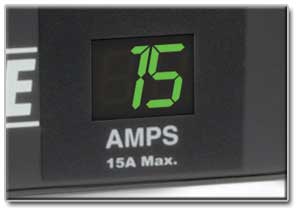

Digital Current Meter

The PDUMH15 is equipped with a digital LED meter that displays the connected equipment load. This meter enables IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits.

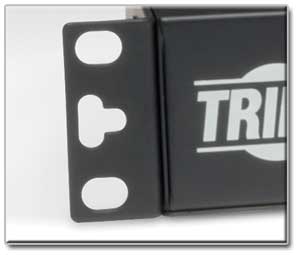

Versatile Installation Options

The PDUMH15 is easy to integrate with a wide range of data center and network applications. Detachable flanges enable the PDU to be installed in horizontal/vertical rackmount configurations, wall-mount, workbench, under-counter and similar applications. It is configurable for 1U rackmount installation with included hardware, and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. The PDUMH15 is also suitable for wall-mount, under-counter and similar applications.

Peace of Mind

The PDUMH15 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a two-year warranty.

Technical Specifications

Voltage compatibility: 120V AC
Frequency compatibility: 50/60Hz
Amps: 15
Outlet quantity/type: 13 x 5-15R (One front, 12 rear)
Input cord/plug: 15 ft./5-15P
Circuit breaker: 1 x 15A
LED display: Two-character (indicating amps)
Dimensions (HWD): 1.75in. (1U) x 17.5in. x 4.5in.
Weight: 4.5lbs
Material of construction: Metal
Agency approvals: UL 60950-1 (US/Canada); RoHS
Warranty: Two-year

What's in the Box

PDUMH15 Single-Phase Metered PDU
Owner's Manual

Network-Grade, Single Phase PDUs	PDUMH15	PDUMH15AT	PDUMH15ATNET
Nominal Voltage (50/60 Hz)	120V	120V	120V
Max Input	15A	15A	15A
Input Cord	15ft	12ft	12ft
Outlets	13 5-15R	8 5-15R	8 5-15R
Rack Size	1U	1U	1U
Digital Load Meter
Network Interface	—	—
Individual Outlet Control	—	—
Automatic Transfer Switching	—
Warranty	Two-year	Two-year	Two-year

Learn more about the Tripp Lite PDUMH15

General

Brand: Tripp Lite

Model: PDUMH15

Type: Metered

Rack Size: 1U

Style: Rackmount, Vertical Rackmount, Wallmount/Under-Counter

Dimensions: 1.75" x 17.5" x 4.5"

Weight: 5.2 lbs

Output

Output Voltage: 120V

Output Frequency: 50/60Hz

Output Connector(s): 13 x NEMA 5-15R

Overload Protection: 15A

Input

Input Voltage: 120V

Maximum Input Current: 15A

Input Connector(s): 1 x NEMA 5-15P

Cord Length: 15 ft

Miscellaneous

Front Panel LEDs: Digital LED current monitor display

Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant

ROHS: Yes

Feature

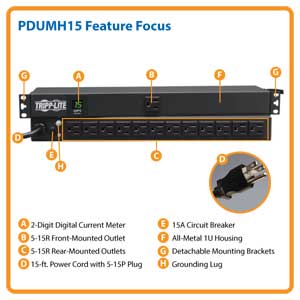

Features: 120V 15A Metered rackmount AC power distribution unit with 15 amp capacity and 13 AC receptacles
Front panel digital current montoring display shows power consumption of connected equipment
Versital all-metal rackmount cabinet with detachable mounting flanges allows wall-mount, under-counter, and 19-inch rackmount mounting in both 1U and zero U formats
Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
13 NEMA 5-15R output receptacles accept common NEMA5-15P equipment plugs
15 foot AC power cord with NEMA5-15P plug connection
Switch-free design prevents the potential for accidental shutoff of connected loads
15 amp electrical capacity with circuit breaker
120 VAC, 50/60 Hz electrical compatibility

Manufacturer Warranty

Parts: Lifetime limited

Labor: Lifetime limited

Quick Info

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): 0 day

Manufacturer Contact Info

Customer Reviews of the Tripp Lite PDUMH15

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (4) 75% (3) 0% (0) 25% (1) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
Mark s. 12/13/2013 7:13:57 AM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5Good Basic Unit This review is from: Tripp Lite PDUMH15 Metered 1U 120V 15A 15 ft Power Distribution Unit Pros: Plenty of outlets with a single opposite side Mounting brackets are reversible so it fits in any facing and can be mounted deep or shallow Long power cord, as another reviewer said it may be too long. AMP Meter is fairly accurate ( matches well to what our UPSs say is being drawn) Cons: None Did you find this review helpful? Thanks for the valuable feedback you provided!
Judy S. 7/31/2013 7:27:21 AM Tech Level: 5/5 Ownership: 5/5 Verified Owner	Rating: 5/5 This review is from: Tripp Lite PDUMH15 Metered 1U 120V 15A 15 ft Power Distribution Unit Pros: - Solid connection that I do not worry about coming lose at all - Amp draw meter is extremely handy - Very long (maybe too long?) power cable - Lots of jacks - Front-facing jack is a nice bonus touch - PRICE Cons: - Wish the power cable came out the other side, but no biggie. Other Thoughts: For the price you won't find another PDU of this quality with these features. Will be buying more of these. Did you find this review helpful? Thanks for the valuable feedback you provided!
Robert P. 7/3/2008 7:26:10 AM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5It's a PDU... a nice one This review is from: Tripp Lite PDUMH15 Metered 1U 120V 15A 15 ft Power Distribution Unit Pros: AMP meter - let's you know the power you're pulling... Plenty of plugs. LONG, heavy duty power cable. Cons: AMP Meter - let's your rack space provide know the power you're pulling... Other Thoughts: The amp meter is a nice feature... but if you're picking up rack space from another provider, it also means they know how much power, so there's no fudging... 3 out of 3 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
Donald B. 4/25/2008 1:59:37 PM Tech Level: 5/5 Ownership: 1/5	Rating: 3/5NOT A SURGE SUPPRESSOR This review is from: Tripp Lite PDUMH15 Metered 1U 120V 15A 15 ft Power Distribution Unit Pros: Event though this is in the Supporssor category it is not a surge suppressor. Cons: . Other Thoughts: . 1 out of 7 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
