Item#: N82E16812156016

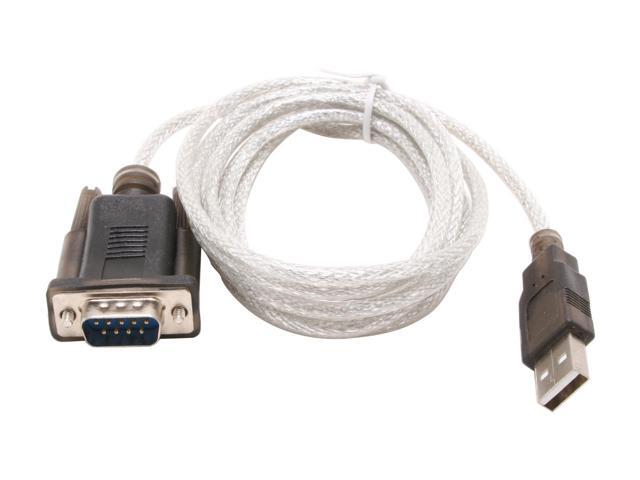

SABRENT Model SBT-USC6K 6 ft. USB to Serial (9-pin) DB-9 RS-232 Adapter Cable - OEM

(1)
Write a Review
  • 2 Connector Number
  • Translucent

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the Sabrent SBT-USC6K

Model

|
Brand
SABRENT
Model
SBT-USC6K
Type
USB to DB9 (RS-232)
Color
Translucent

Details

|
Length
6 ft.
Connector Number
2
Specifications
USB to Serial (9-pin) DB-9 RS-232 Adapter Cable

Features

|
Features
Converts a standard 9-pin serial port to USB
Complies with USB Specification v1.1(0) & USB CDC v1.1
Full Compliance with USB specification v1.1
Supports the RS 232 Serial interface (standard 9-pin serial)
Supports automatic handshake mode
USB full speed communication and Bus Powered
Single Cable USB to Serial communication
Supports up to 1 Mbps data transfer rate
Supports Automatic handshake mode
Provides a 96 byte buffer for each upstream and downstream data transfer
Drivers and Manual on a CD
Easy Installation
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the Sabrent SBT-USC6K

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Dean M.
  • 6/2/2006 12:45:43 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsNOT a standard PC serial port replacement!

Pros: Device works once you figure out it does not use standard signalling pins and will need to be adapted/rewired to be a standard serial port.

Cons: In spite of claims to the contrary, this cable is not pin-compatible with standard DB-9M PC serial ports like those on a motherboard. On the Sabrent, pin 1 is ground and pin 5 is floating. On a real PC serial port, pin 1 is CD (carrier detect) and pin 5 is ground. Net result is if you plug this into most peripherals or cables with a DB-9F mating connector this serial port WILL NOT WORK as there is no ground connection to complete the circuit. Avoid this product.

Other Thoughts: It took a week of hair-pulling debugging to figure out why this cable wasn't working properly. It seems apparent by Sabrent's marketing that they intended for this to be a standard serial port, but that somehow the device was miswired at the factory. As pins 1 and 5 are exactly on opposite ends of the connector, this was probably a simple production error where the connector was mis-wired. However, I purchased two of these cables and both had the same wiring error, so it appears systemic.

19 out of 20 people found this review helpful. Did you? Yes No
