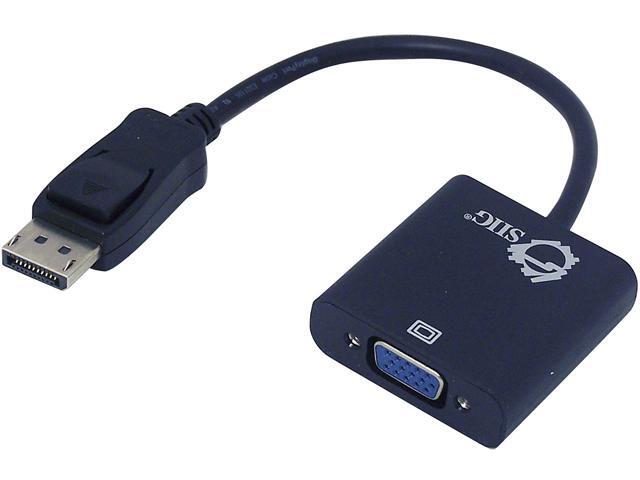

SIIG CB-DP0N11-S1 DisplayPort to VGA Adapter Converter

Chipset: ANX9832
Compliant with DisplayPort 1.1a receiver
Configurable 1 or 2 lane operation
Supports 1.62 and 2.7Gbps data rates
Supports Down Spread Spectrum (SSC)
Display modes:
PC: V

Overview
Specifications
Warranty & Returns
Reviews
Q&A

SIIG's DisplayPort to VGA Adapter Converter is designed to convert your DisplayPortTM output to a VGA port. It allows you to connect your DisplayPort-equipped notebook or desktop system to a VGA display. It is the convenient and cost-effective solution to enable the latest DisplayPort-equipped computer to work with an analog VGA monitor, saving you the cost of upgrading the display device.

Learn more about the SIIG, Inc CB-DP0N11-S1

Model

Brand: SIIG

Model: CB-DP0N11-S1

Details

Type: DP to VGA

Color: Black

Specifications: Chipset: ANX9832

Compliant with DisplayPort 1.1a receiver

Configurable 1 or 2 lane operation

Supports 1.62 and 2.7Gbps data rates

Supports Down Spread Spectrum (SSC)

Display modes:
PC: VGA, SVGA, XGA, SXGA, UXGA & WUXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p

Product:
Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
Weight: 0.09 lbs
Color: Black
Material: Plastic

Connector: 20-Pin DisplayPort (male) to 15-pin VGA (female)
DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
VGA connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)

Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Humidity: < 85% non-condensing

Certifications/Standards: FCC, CE, RoHS

Warranty: 3 years limited

Country of origin: China

Features

Features: Connect the latest DisplayPort equipped computer systems to VGA displays

Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps

Supports 1080p and PC graphics resolution up to 1920x1200

Supports 8-bit per color RGB color format

Supports full DisplayPort link training

Supports EDID and MCCS pass-through

Automatic monitor plug and unplug detect for VGA output

Compact design with 8KV ESD protection
