Item#: N82E16812191386

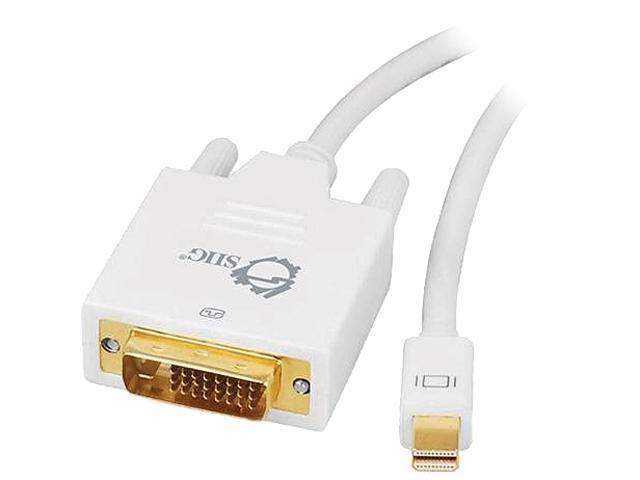

3ft Mini DisplayPort to DVI Converter Cable (mDP to DVI)

  • Compliable with Intel Thunderbolt. Supports bandwidth up to 2.25Gbps per cahnnel (6.75Gbps all channels)
  • Supports 1080p & PC graphics resolution up to 1920x1080.Supports 12bit per channel (36bit all

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

general information

3 ft Mini DisplayPort to DVI Converter Cable (mDP to DVI)

The SIIG Mini DisplayPort to DVI Converter Cable (mDP to DVI) is designed to convert a mini DisplayPort output to a DVI-D Single Link output, enabling you to effortlessly connect your Mini DisplayPort-equipped PC to any DVI-D-enabled monitor, projector or display. It’s compliant mini DisplayPort specification V1.1a, and is compatible with Thunderbolt. It delivers high data rate transmission, and supports a wide variety of HDTV resolutions and PC display modes to provide optimal video quality. Plus, this 3ft long converter cable is easy to use with no software required.

general information

Mini DisplayPort to DVI Converter Cable

With a Mini DisplayPort connector at one end and a DVI-D connector at the other end, this Converter Cable lets you to easily connect a Mini DisplayPort-equipped video source to a DVI digital video monitor, saving you the cost of upgrading a display device.

Compatible with Intel Thunderbolt

The DisplayPort to DVI Converter Cable is compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port.

general information

High Speed

The DisplayPort to DVI Converter Cable supports high-bandwidth data transmission of up to 2.25 Gbps per channel (6.75Gbps all channels) – without any signal latency and degradation. This ensures outstanding video quality.

High Resolution Support

This unit supports PC graphics resolution of up to 1920 x 1080, and HDTV resolution of up to 1080p @ 60 Hz, ensuring superior image quality. It supports various PC display modes, including VGA, SVGA, XGA, SXGA, and UXGA.


Learn more about the SIIG, Inc CB-DP1B11-S1

Model

|
Brand
SIIG
Model
CB-DP1B11-S1

Details

|
Color
White
Length
3 ft.
Connector Detail
Connector on First End: 1 x 20-pin Mini DisplayPort Male DisplayPort 1.1a Digital Audio/Video
Connector on Second End: 1 x 25-pin DVI-D (Single-Link) Male Digital Video
Terminal Gender
M-M
Specifications
Compliant with Displayport 1.1a standard

Supports 1920x1080 or HDTV resolutions up to 1080p @ 60 Hz

Display modes:
PC: VGA, SVGA, XGA, SXGA, UXGA
HDTV: 480i, 576i, 480p, 576p, 1080i & 1080p

Product:
Overall Length: 39.84" ± 0.6" (1012mm ± 15mm)
Weight: 0.13 lbs
Color: White
Connector: Gold plated
Material: Plastic

Connectors:
20-Pin mini DisplayPort (male) to 24+1 pin DVI-D Single Link (male)
Mini DisplayPort connector housing (L x W x H): 1.29" x 0.45" x 0.37" (33 x 11.5 x 9.4 mm)
DVI connector housing (L x W x H): 2.59" x 1.65" x 0.66" (66 x 42 x 17 mm)

Features

|
Features
SIIG's 3ft Mini DisplayPort to DVI Converter Cable (mDP to DVI) is designed to convert a mini DisplayPortTM output to a DVI-D Single Link connector. It supports a wide variety of HDTV resolutions and PC display modes to provide optimal video quality. This 3ft long converter cable is easy to use with no software required. It is the convenient and cost-effective solution to enable your mini DisplayPort-equipped notebook or desktop system to instantly work with a DVI monitor, saving you the cost of upgrading a display device.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the SIIG, Inc CB-DP1B11-S1

There are no reviews yet... do you own this product? Write a Review
