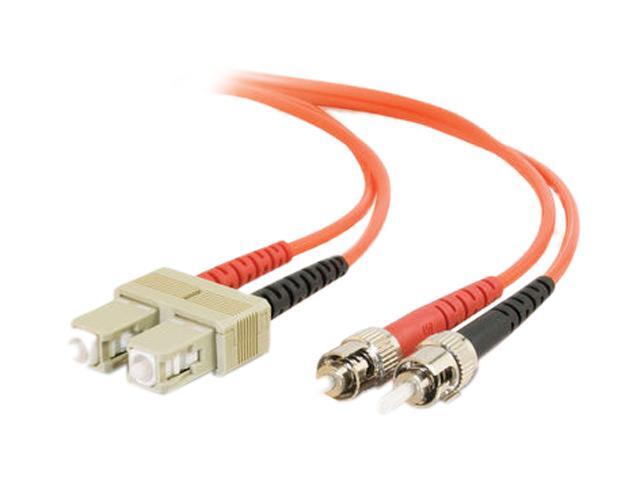

Cables To Go offers a high-quality fiber optic patch cable designed with ST to SC termination, and is perfect for Ethernet, multimedia, or communication applications. The ST connector features a bayonet locking system and the SC connector features a push-pull locking system. The patented Injection Molding Process gives each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. The pull-proof jacket design surrounds the popular 62.5/125 multimode fiber.


Learn more about the Cables To Go 09130

Model

|
Brand
C2G
Model
09130
Type
Fiber
Color
Orange

Details

|
Length
9.84 ft.
Connector Detail
Connector A: 2 x SC Male
Connector B: 2 x ST Male
Specifications
Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.
SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip)
ST Connector Dimensions: 9.8mm Height x 19.6mm Width x 59mm Depth
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Buffer Material: PVC
Buffer OD: 900 um
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 2.8 mm
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
Crush Resistance: 750 N/cm
Impact Resistance: 1,000 cycles
Flex Resistance: 5,000 cycles
Attenuation at 1300 nm: 1.0 dB/km
Attenuation at 850 nm: 3.5 dB/km
Operating Temperature: -20ºC to +70ºC
Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.

Features

|
Features
With SC to ST termination, this high-quality fiber optic patch cable is specifically designed for ethernet, multimedia, or communication applications. The SC connector features a push-pull locking system while the ST connector features a bayonet locking system.

The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs.

Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 62.5/125 multimode fiber, immune to electrical interference.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
