Tripp Lite VGA over Cat5 Extender / Repeater Kit (Transmitter + Transceiver) B130-111

  • VGA Interface
  • Kit comes with both local transmitter and remote/repeater units.
  • Locate multiple monitors at different points in a chain of up to 2,000 ft.
ICON Loading...

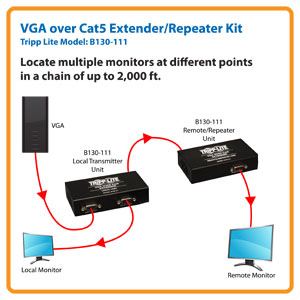

B130-111-U Diagram

Spread your message far and wide—gain even more distance and displays with Tripp Lite's B130-111 VGA over Cat5 Extender/Repeater Kit. The B130-111 both expands and extends your application, allowing you to connect multiple remote monitors in a chain of up to 2,000 ft.! When installed as a stand-alone VGA over Cat5 extender kit, the B130-111 extends a 1920 x 1440 (60Hz) signal up to 500 ft. and a 1024 x 768 (60Hz) signal up to 1,000 ft. When used with multiple remote/repeater units (Tripp Lite B132-110) and a remote receiver unit (Tripp Lite B132-100-1), you can form an application chain of up to 2,000 ft.! With its VGA output connector, the B130-111 adds a display wherever it is installed. Up to three remote/repeater units can be installed between a transmitter and receiver, adding three more displays at varying points in your application. Built-in equalization and gain controls are included to provide ultimate control over image quality at each remote display. The B130-111 is manufactured to RoHS standards and is TAA compliant for GSA schedule purchases.

  • Application The Smart Solution for Digital Signage Applications The B130-111 expands and extends your existing VGA over Cat5 application, making it perfect for digital signage installations with growing demands such as retail, point-of-sale displays, schools, churches and others. By extending an application by up to 1,000 ft. and adding as many as three monitors, the B130-111 is made to meet the growing demands of digital signage.
  • Greater Distance Greater Distance—Greater Flexibility When used as a stand-alone application extender kit, the B130-111 extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft. However, up to three remote/repeater units, like Tripp Lite's B132-110, can be added to the application, as well as a remote receiver unit like Tripp Lite's B132-100-1, in order to create a chain of up to 2,000 ft. and five monitors. For maximum signal quality, use with Tripp Lite's P502-Series VGA/SVGA monitor cables. The B130-111 also includes a VGA output connector, allowing you to connect a remote display to each unit.
  • B132-100-1 Tripp Lite Provides the Complete Solution The B130-111 is compatible with almost all of Tripp Lite's VGA over Cat5 solutions. It can be used with a B132-100-1 or B132-100-WP-1 receivers or a B132-110 remote/repeater. The B130-111 is not compatible with the USB-powered B130-101-U extender kit.
  • Plug and Play Convenient Plug-and-Play Setup With no software or drivers to install, the B130-111 is ready to use in your application right out of the box. Simply connect the Cat5e/6 input and output along with the unit's power supply and watch as the B130-111 extends your application with crystal-clear resolution. The unit also includes built-in equalization and gain controls for ultimate image quality control.
  • Installation Versatile Installation Options The B130-111 includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount. For further flexibility, up to three units can be mounted in 1U of rack space using Tripp Lite's B132-004-RB 19-inch rackmount bracket.
  • RoHS Environmentally Responsible and TAA-Compliant The B130-111 is manufactured in compliance with strict RoHS (Restriction of Hazardous Materials) guidelines to minimize the use of hazardous materials.
  • TAA Peace of Mind The B130-111 comes with a 1-year product warranty and is TAA-compliant for GSA schedule purchases.
  • Contents What's in the Box • B130-111 Local Unit
    • B130-111 Remote Unit
    • (x2) External Power Supply (5V, 2A)
    • Screwdriver for Equalization and Gain adjustment
    • Mounting Hardware
    • Owner's Manual


Learn more about the Tripp Lite B130-111

General

Brand
Tripp Lite
Model
B130-111
Extender & Repeater Type
Non Wall Plate Extender

Compatibility

System Requirements
Computer with VGA video output
Monitor / TV with VGA video input

Specification

Specification
Cable Type: VGA
Display Style: Extender
Color: Black

Feature

Feature
Kit comes with both local transmitter and remote/repeater units.

Locate multiple monitors at different points in a chain of up to 2,000 ft. by connecting additional receiver (B132-100-1 or B132-100-WP-1) or repeater (B132-110) units

Up to 4 remote units (3 repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays

24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution

For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K

Extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., between the local transmitter and the first remote/repeater in the installation.

Extend a 1920 x 1440 (60Hz) signal up to an additional 500 ft., or a 1024 x 768 (60Hz) signal up to an additional 1,000 ft., from the first remote/repeater unit to the last display in the installation.

Features built-in Equalization and Gain controls for video image adjustment.

Includes mounting hardware that allows wall mounting, rackmounting or pole mounting.

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package

Package Content
B130-111 local transmitter unit
B130-111 remote/repeater unit
(x2) 5V, 2A external power supply
Screwdriver for video adjustment
Mounting hardware
Owner's manual

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Tripp Lite B130-111

There are no reviews yet... do you own this product? Write a Review
