Tripp Lite VGA + Audio over Cat5 Extender / Repeater Kit (Transmitter + Transceiver) B130-111A

VGA Interface
Kit comes with both local transmitter and remote/repeater units Locate multiple sets of monitors and speakers at different points in a chain of up to 2,000 ft

PRODUCT DESCRIPTION

Spread your message far and wide—gain even more distance and displays with Tripp Lite's B130-111A VGA with Audio over Cat5 Extender / Repeater Kit. The B130-111A both extends and expands your application, allowing you to connect multiple remote monitors and speakers in a chain of up to 2,000 ft. When installed as a stand-alone VGA with Audio over Cat5 extender kit, the B130-111A extends a 1920 x 1440 (60Hz) signal up to 500 ft. and a 1024 x 768 (60Hz) signal up to 1,000 ft. By connecting an additional remote receiver (B132-100A or B132-100A-WP-1) or remote/repeater (B132-110A) unit, you can locate multiple/speakers at different points in a chain of up to 2,000 ft.! With its VGA output connector, the B130-111A adds a display and set of speakers wherever it is installed. Up to three remote/repeater units can be installed between a transmitter and receiver, adding three more displays and sets of speakers at varying points in your application. Built-in equalization and gain controls are included to provide ultimate control over image quality at each remote display. The B130-111A is manufactured to RoHS standards and is TAA compliant for GSA schedule purchases.

The Smart Solution for Digital Signage Applications

The B130-111A expands and extends your existing VGA with Audio over Cat5 application, making it perfect for digital signage installations with growing demands such as retail, point-of-sale displays, schools, churches and others. By extending an application by up to 1,000 ft. and adding as many as three monitors and sets of speakers, the B130-111A is made to meet the growing demands of digital signage.

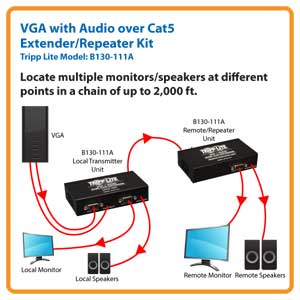

Greater Distance—Greater Flexibility

When used as a stand-alone application extender kit, the B130-111A extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft, all with premium stereo audio. By inserting a remote/repeater unit between the B130-111A's units, the signal can be regenerated and extended to another set of monitor and speakers up to an additional 1,000 ft. away. Up to three remote/repeater units, like Tripp Lite's B132-110A, can be added to the application, as well as a remote receiver unit, like Tripp Lite's B132-100A, in order to create a chain of up to 2,000 ft. with five monitors and sets of speakers.

Tripp Lite Provides the Complete Solution

The B130-111A is compatible with almost all of Tripp Lite's VGA over Cat5 solutions. It can be used with a B132-100A or B132-100A-WP-1 receivers or a B132-110A remote/repeater. The B130-111A is not compatible with the USB-powered B130-101-U extender kit.

Premium Stereo Audio

We haven't forgotten the sound! The B130-111A extends a Stereo Audio signal via its 3.5 mm jacks and delivers premium sound quality to every point of your application. This adds even greater functionality to your displays.

Convenient Plug-and-Play Setup

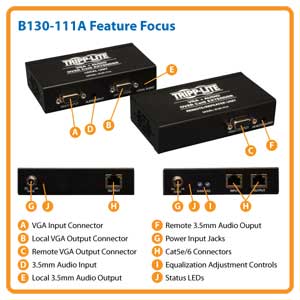

With no software or drivers to install, the B130-111A is ready to use in your application right out of the box. Simply connect the Cat5e/6 input and output along with the unit's power supply and watch as the B130-111A extends your application with crystal-clear resolution and full, rich sound. The unit also includes built-in equalization and gain controls for ultimate image quality control.

Versatile Installation Options

The B130-111A includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount. For further flexibility, up to three units can be mounted in 1U of rack space using Tripp Lite's B132-004-RB 19-inch rackmount bracket.

Peace of Mind

The B130-111A features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases. It also comes with a 1-year warranty.

What's in the Box

• B130-111A local transmitter unit
• B130-111A remote/repeater unit
• (x2) 5V, 2A external power supply
• Screwdriver for video adjustment
• Mounting hardware
• Owner's manual

VGA over Cat5 Extenders	B130-111A	B130-111
Extension Distance	1000 ft. at 1024 x 768 (60Hz) 500 ft. at 1920 x 1440 (60Hz)	1000 ft. at 1024 x 768 (60Hz) 500 ft. at 1920 x 1440 (60Hz)
Maximum Resolution	1920 x 1080 (60Hz)	1920 x 1080 (60Hz)
Extends Audio Signal		—
Form Factor	Box Style	Box Style
Warranty	1-year	1-year

Learn more about the Tripp Lite B130-111A

Model

Brand: Tripp Lite

Model: B130-111A

General

Type: Video Extender

Interface: VGA

Features

Features: Kit comes with both local transmitter and remote/repeater units.

Locate multiple sets of monitors and speakers at different points in a chain of up to 2,000 ft. by connecting additional receiver (B132-100A or B132-100A-WP-1) or repeater (B132-110A) units.

Up to 4 remote units (3 repeaters and 1 receiver) can be connected together, providing audio/video to up to 4 sets of monitors and speakers

24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution

For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K

Extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., between the local transmitter and the first remote/repeater unit in the installation.

Extend a 1920 x 1440 (60Hz) video and audio signal up to an additional 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to an additional 1,000 ft., from the first remote/repeater unit to the last set of display and speakers in the installation.

Features built-in Equalization and Gain controls for video image adjustment.

Includes mounting hardware that allows wall mounting, rackmounting or pole mounting.

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases..

Specifications

Specifications: Color: Black

System Requirements

System Requirements: Computer with VGA video and 3.5mm Audio outputs
Monitor / TV / Speakers with VGA and 3.5mm Audio inputs

Packaging

Package Contents: B130-111A local transmitter unit
B130-111A remote/repeater unit
(x2) 5V, 2A external power supply
Screwdriver for video adjustment
Mounting hardware
Owner's manual
