Model

Brand

BYTECC

Model

SDI-SP102

Details

Type

SDI Splitter

Ports

3

Specifications

Support line length (Cable is RG59):
3G(1080P 60HZ) Mode: Front 60M followed 30M OR Front 20M followed 50M
HD(720P 60HZ)Mode: Front 100M followed 100M

External Power Supply: 5V DC@ 2A

Power consumption (Max): 1W

Connectors

Input Connector

1xSDI BNC Male

Output Connector

2x SDI BNC Male

Performance

Maximum Resolutions

HD 720p 24, 25, 30, 50 and 60
HD 1080i 50, 60
HD 1080p 24, 25, 30, 50 and 60

Features

Features

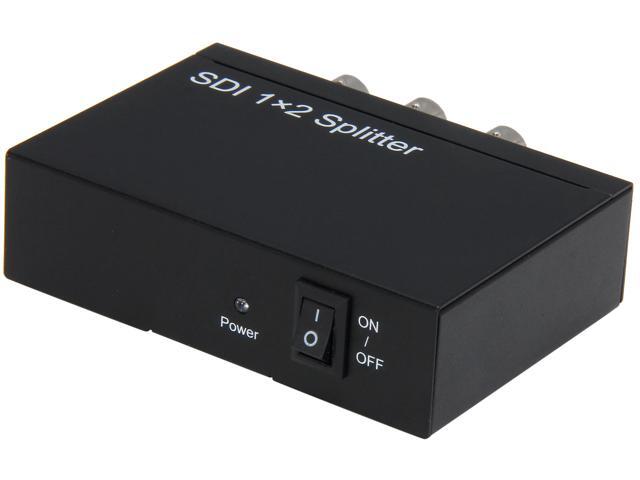

This is a 1X2 SDI splitter, which make it possible to transfer 1 SDI signal to 2 monitors simultaneously.

Up to two outputs could save you lots trouble of setting other signals when you want to enjoy other SDI programs

Support multiple video resolutions: SD 525i and 625i
HD 720p 24, 25, 30, 50 and 60
HD 1080i 50, 60
HD 1080p 24, 25, 30, 50 and 60

Support multiple color space:
RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 sampled

Support data rates: 270M~2.97Gbps.

Support 8 bit, 10 bit, 12 bit of deep color.

Package Contents

Package Contents

1XMain unit
1XPower adapter 5V@2A
1XUser's Manual
