Item#: N82E16812270638

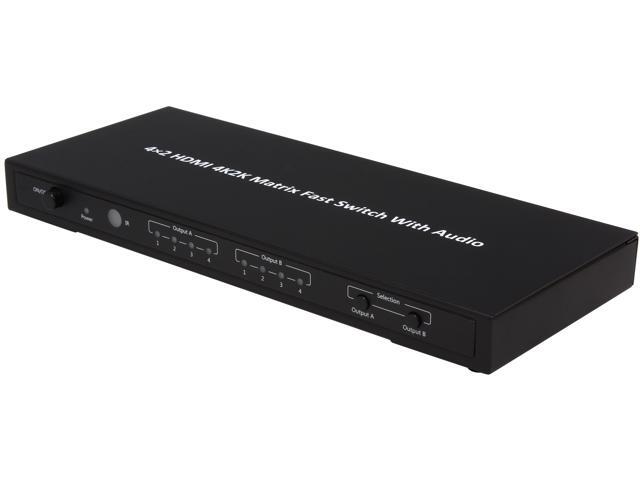

BYTECC HMMSS402K 4K2K Matrix Fast Switch With Audio Support 3D

Sold and Shipped by Newegg

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the BYTECC INC HMMSS402K

Model

|
Brand
BYTECC
Model
HMMSS402K

Details

|
Type
HDMI Switchers
Matrix
Yes
Specifications
Inputs/Output:
Input Ports: 4 x HDMI
Output Ports: 2xHDMI, 1x Optical SPDIF, 1x Coaxial, 1x 3.5mm Stereo
HDMI Input/output Connector: type A 19 pin
Signal Inputs/Output:
Input DDC Signal: 5 volts p-p (TTL)
Maximum Resolution Up to 4K2K
Operating Frequency
Frequency: 50/60 Hz
Video Amplifier Bandwidth: 3.4Gbps/340MHz
Resolutions (HDTV)
Interlaced (50&60Hz): 480i, 576i, 1080i
Progressive (50&60Hz): 480p, 576p, 720p, 1080p
Environmental
Operating Temperature: 0 ? to +70? or 32 DegreeF-104 DegreeF
Operating Humidity: 10% to 85 % RH (no condensation)
Storage Temperature: -10? to +80? or -4 DegreeF-140 DegreeF
Storage Humidity: 5% to 90 % RH (no condensation)
Regulatory Approvals: FCC, CE, UL
Power Requirement
External Power Supply: 5V DC
Package Contents:
1x Main unit.
1x 5 V/2A DC Power Supply
1x Remote control
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the BYTECC INC HMMSS402K

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Chris K.
  • 12/27/2015 4:59:20 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsSolid Product

Pros: Worked well, the ability to separate out the sound at the switch as well as pass through the sound over the HDMI was very useful in my application.

Cons: A little bit slow on switching inputs, although this might be due to all the DHCP handshaking.

Other Thoughts: Had some issues with RF interference that I originally thought were being caused by the switch, but in the end I was able to trace these to a poorly constructed HDMI cable.

Did you find this review helpful? Yes No

  • Terry S.
  • 12/24/2014 5:05:41 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsGood product, but...

Pros: Does what it says it does...mostly (more on that below). It provides a very clear signal to both 1080P displays it's connected to (a 46-inch LCD and a HT projector). Recognized by Logitech Harmony remotes, so setting it up was a breeze.

Cons: Audio only comes out of the 'A' set of connections.

Other Thoughts: I specifically bought this switch because I got the impression that audio would still generate when the A-set of connections was turned off, but no such luck. This is a HUGE annoyance, and I'm debating returning it as a result. If I must have my TV on when I'm using a projector, what's the point? I don't know why the manufacturers have not addressed this, but it seems to be a problem with every HDMI matrix on the market.

1 out of 1 people found this review helpful. Did you? Yes No
