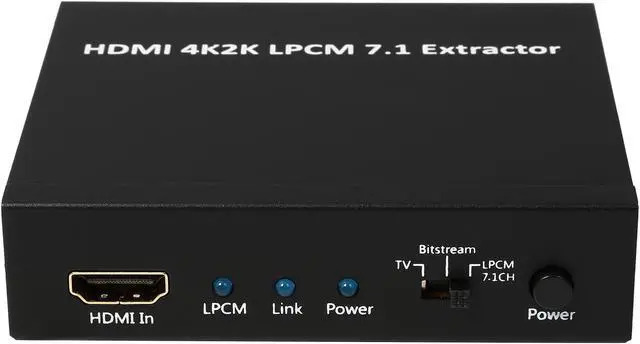

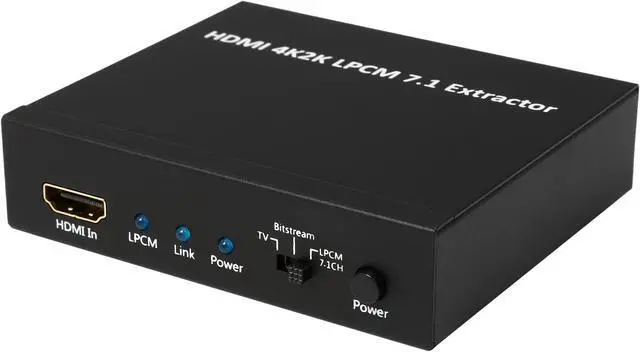

BYTECC HM-CV033K HDMI 4K2K LPCM 7.1 EXTRACTOR SUPPORTS 4 x 3.5mm JACK CEC Bypass HBR 3D signal
- 4K2K LPCM 7.1 EXTRACTOR
- Compliant with HDMI®, HDCP 1.2 and DVI 1.0
- Supports 4 x 3.5mm phone jack
- Supports CEC bypass
- Supports 4K2K resolution and 3D signal
- Supports build-in audio EDID switching among LPCM 7.1CH,
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the BYTECC INC HM-CV033K
| Brand | BYTECC |
|---|---|
| Model | HM-CV033K |
| Type | HDMI Switchers |
|---|---|
| Color | Black |
| Audio | Yes |
| Specifications | HDMI audio sampling rate: up to 192 khz Optical S/PDIF audio sampling rate: up to 192 kzh HDMI audio format: LPCM 2/5.1/7.1CH, and DTS 2~5.1CH L/R AUDIO FORMAT: 4x phone jacks output format 7.1 CH analog audio Power supply: 5v/DC Dimensions: 95*82*24mm |
| Input Connector | 1x HDMI |
|---|---|
| Output Connector | 1x HDMI, 1X OPTICAL, 4X3.5MM PHONE JACK |
| Bandwidth | 300mbps/10.2Gbps |
|---|
| Features | Compliant with HDMI®, HDCP 1.2 and DVI 1.0 Supports HDMI® audio sampling rate up to 192kHz Supports HDMI® Optical S/PDIF audio sampling rate up to 192 kHz HDMI® supports high-bit-rate (HBR) audio No HDMI® output connection is required to receive audio at the analog and optical outputs Supports 4 x 3.5mm phone jack for analog multi-channel audio outputs Supports build-in audio EDID switching among LPCM 7.1CH, TV (external) EDID, and Bitstream audio Supports CEC bypass Supports 4K2K resolution and 3D signal |
|---|

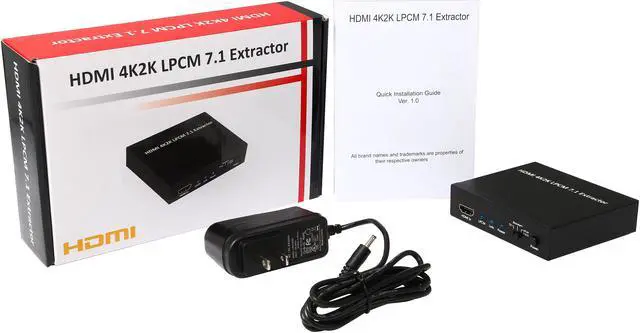

| Package Contents | HDMI 4K2K LPCM7.1 EXTRACTOR 5V/POWER ADAPTOR USER MANUAL |
|---|
| First Listed on Newegg | March 13, 2015 |
|---|
