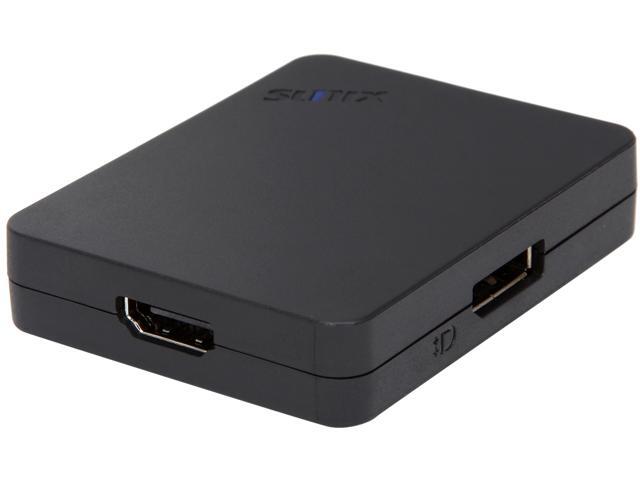

SUNIX DPU3000-D2 3 Ports DisplayPort Graphics Splitter Adapter with miniDP to miniDP Cable

Open Box

Sold and Shipped by Newegg

Tiny design integrates DisplayPort, HDMI, and VGA (RGB) connectivity.
Enables 3 monitors working simultaneously with video mirror or extension mode (Note 1).
Triple monitors output resolution up to

Specifications
Warranty & Returns
Q&A

Learn more about the SUNIX DPU3000-D2

Model

Brand: SUNIX

Model: DPU3000-D2

Details

Type: DisplayPort Splitters

Color: Black

Connectors

Input Connector: Mini DisplayPort Female

Output Connector: 1-port DisplayPort v1.2, DP++ Female
1-port HDMI Ver1.4 Female
1-port VGA (RGB) (Note 3)

Performance

Maximum Resolutions: 3840 x 2160

Features

Features: Tiny design integrates DisplayPort, HDMI, and VGA (RGB) connectivity.

Enables 3 monitors working simultaneously with video mirror or extension mode (Note 1).

Triple monitors output resolution up to 2560X1600@60Hz/each from single DP1.2 MST source.

6 combined monitors up to 5760x2160 by connecting two dongles from dual DP1.2 sources (Note 2).

Supports digital audio stream over DisplayPort or HDMI output.

Ideafor multi-display and TV-Wall application.

Compatiblewith DisplayPort v1.2a /1.1a, HDMI v1.4a, VESA DDM, and EDID v1.4 Std.

Supports DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).

Supports exceptional Secured Content Protection with HDCP v1.3 for digital content.

Drivers free under Microsoft Windows, MAC and Linux operations.

Hot Plug & Plug-n-play feature without configuration.

Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS.

Disclaimer: Unit may need additional power to operate. Additional power can be provided to the unit via Micro-B USB port +5VDC connection. Micro-B USB cable is NOT provided with the unit.
-Note*: This product requires power to operate. Generally, when connecting to one to two monitors, the power supplied from the computer should be enough to power the unit and to have a stable connection between the monitors and this unit. However; sometimes the unit may need more power in order to function properly, such as when connecting to more than two monitors, or when the monitors require too much power then what can be provided from the connection from your PC alone. In this regards, the unit has a reserve power connection. The power connection is for a Micro-B USB port +5VDC cable, such as those to power Android products. Unfortunately, we DO NOT provide this power cable with the unit.
