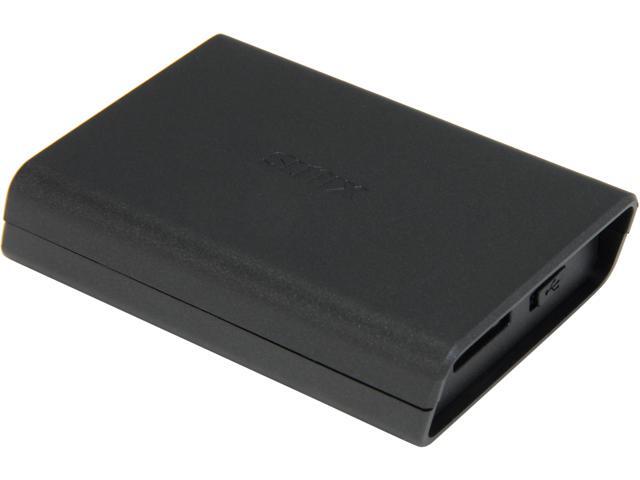

SUNIX DPD2001 DisplayPort to Dual DisplayPort Graphics Splitter

Open Box

Sold and Shipped by Newegg

Specifications
Warranty & Returns
Q&A

Learn more about the SUNIX DPD2001

Model

Brand: SUNIX

Model: DPD2001

Details

Type: DisplayPort Splitters

Audio: Yes

Color: Black

Connectors

Input Connector: DisplayPort v1.2 / 1.1a Female (Left Side)
USB Micro B +5VDC@500mA (Right Side) Reserve Power Input

Output Connector: DisplayPort v1.2 / 1.1a Female x 2
Digital Audio output over DisplayPort
(Audio channel selected over Windows Audio control panel)

Performance

Maximum Resolutions: 1920 x 1200

Features

Features: Ideal for multi-display and TV-Wall application.

Works with any desktop or notebook computer which has DisplayPort output connectivity.

Enable 2 DisplayPort monitors working simultaneously with video mirror or extension mode.

Fully HD compatible and provides full display performance with virtually zero latency.

Compatible with DisplayPort? v1.2 / 1.1a, VESA DDM, and EDID v1.4 Standards.

Supports exceptional Secured Content Protection with HDCP 1.3 for digital content.

DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).

Supports kinds of DisplayPort video dongles converting to HDMI, DVI, or VGA output connectivity.

Driver Free, Plug & Play without configuration.

Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS.

Disclaimer: Unit may need additional power to operate. Additional power can be provided to the unit via Micro-B USB port +5VDC connection. Micro-B USB cable is NOT provided with the unit.
-Note*: This product requires power to operate. Generally, when connecting to one to two monitors, the power supplied from the computer should be enough to power the unit and to have a stable connection between the monitors and this unit. However; sometimes the unit may need more power in order to function properly, such as when connecting to more than two monitors, or when the monitors require too much power then what can be provided from the connection from your PC alone. In this regards, the unit has a reserve power connection. The power connection is for a Micro-B USB port +5VDC cable, such as those to power Android products. Unfortunately, we DO NOT provide this power cable with the unit.
