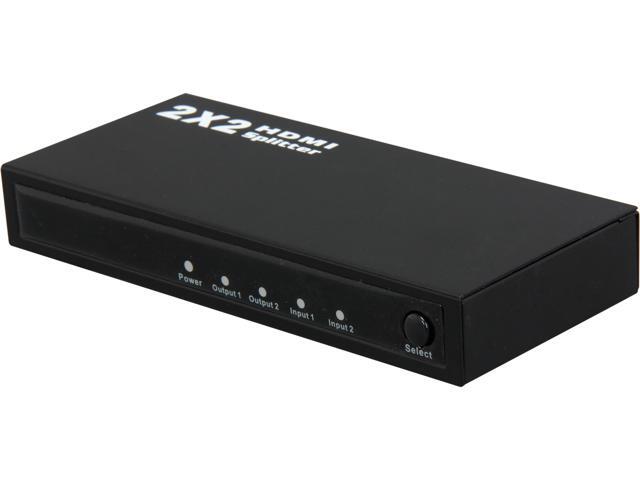

Coboc HM-SPLSW-2X2 2 Ports 2 in 2 out Amplified 2x2 Matrix HDMI® Switcher & Splitter w/ 3D HDCP 1080P Support

Sold and Shipped by Newegg

Learn more about the Coboc HM-SPLSW-2X2

Specifications: Input: HDMI x 2

Output: HDMI x 2

HDMI with EDID & HDCP pass-through

Video Amplifier Bandwidth:2.25Gbps/225MHz per channel, total up to 6.75Gbps

HDMI Resolution: 1080P/1080i/720P/576P/576i/480P/480i

Color Depth : 12 bit per channel,total 36bit and xvYCC color space

3D Video Support:Full 3D such as 1080P@23.98/24Hz,720P@59.94/60Hz/50Hz

Audio Supports: high definition audio signals such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD),as well as standard LPCM stereo

Input Video signal: 5.0Volts P-P

Input DDC signal: 5V (peak-to-peak)

Max.transmission distance:
24AWG cable: Input up to 15m,Output up to 15m
28AWG cable: Input up to 10m ,Output up to 10m

Enclosure: Metal

Environmental:
Operating Temperature: 0? to +70?
Operating Humidity: 10% to 80 % RH (no condensation)

Storage Temperature: -10? to +80?

Storage Humidity: 5% to 90 % RH (no condensation)

Power Supply:
100-240V @50/60Hz AC input
5V DC@2A output
FCC, CE, UL/cUL, RoHS Compliance

Package Included :
Main Unit
5V DC@2A power supply(UL listed)
User manual

Features: Switch and distribute between two inputs to two outputs
Built-in Splitter functions for signal distribution
Built-in singal equalization let you use longer than normal HDMI cables running to the inputs and outputs.
EDID & HDCP compliant
Supports 2.25Gbps/225MHz per channel (6.75Gbps all channel) bandwidth
Supports full HD 1080P (1920 x 1080@60Hz)and full 3D
Supports 12bit per channel (36bit all channel) deep color and xvYCC color space
Supports high definition audio signals such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD),as well as standard LPCM stereo.
Compact metal enclosure for quick heat dissipation and durable construction for longevity
Front-panel LED’s for input/ output signal presence
Enables you to manually select HDMI source with easy-to-use front panel button

Note:Only one HDMI input can be displayed across every HDMI output display at a time
