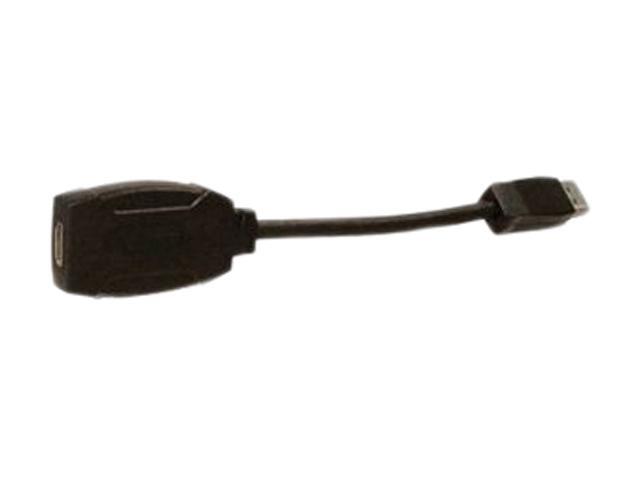

Comprehensive DP2DVIF Displayport M to DVIF Cable

Sold and Shipped by Newegg

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Keep your existing displays while using DisplayPort sources. With the DP2DVIF (DisplayPort to DVI) adapter you can connect a DisplayPort source to a DVI-D display. This adapter supports resolutions up to 1920x1200 allowing you to take full advantage of a single link DVI capability.

Learn more about the Comprehensive Cable and Connectivity DP2DVIF

Model

Brand: Comprehensive

Model: DP2DVIF

Details

Type: DisplayPort to DVI

Color: Black

Cable Length: 8"

Specifications: Performance Grade: Good

Resolution: Supports PC resolutions up to 1920x1200 and HDTV resolutions up to 1080p

Versions Supported: Mini DisplayPort 1.1a input and DVI 1.1v output

Bandwidth Supported: DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.

Deep Color Supported: DVI 12bit per channel (36bit all channel) deep color

Power requirements: Powered from DisplayPort source

Construction: The DP to DVI adapter uses an integrated chip to provide an active digital to analog conversion

Weight Lbs: 0.2

RoHS Compliant: Yes

Connectors

Connector A: DisplayPort Male Input

Connector B: DVI-D Female Output

Features

Features: Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz

Supports DisplayPort 1.1a input and DVI output

Supports DVI highest video resolution 1080p

Supports DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

Supports DVI 12bit per channel (36bit all channel) deep color

Power supply: +3.3V (From DisplayPort)

RoHS Compliant
