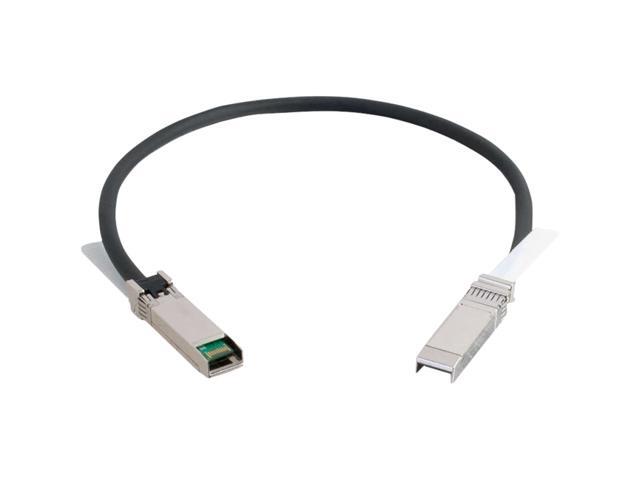

C2G 06126 3m 24AWG SFP+/SFP+ 10G Passive Ethernet Cable (9.8ft)

Black
9.8 ft.
Copper cable assembly for point to point connections between active network equipment in 10G Ethernet and Fiber Channel applications

Overview
Specifications
Warranty & Returns
Reviews
Q&A

These cables are designed as a more cost-effective and lower power alternative to optical cable assemblies for short length interconnects between active network equipment in data center and enterprise networking applications. Our SFP+ cable assemblies are constructed using premium 24AWG or 30AWG, 100 Ohm cable and feature SFP+ SFF-8431 standards based connectors with quick release pull-latches. These assemblies support 1x, 2x, 4x, and 8x Fiber Channel data rates, meeting or exceeding current standards specifications.

Learn more about the Cables To Go 06126

Model

Brand: C2G

Model: 06126

Type: Banker Box

Color: Black

Details

Length: 9.8 ft.

Connector Detail: Connector type - SFF-8432

Hood material - Die cast zinc, Nickel plated

Contact plating: 30µ gold plated

Specifications: Differential impedance - 100+/-5ohm @ TDR

Mutual capacitance - 14pF/ft nominal

Time delay - 1.31ns/ft nominal, (4.3ns/m) nominal

Time delay skew (within pairs) - 80ps/10m maximum

Time delay skew (between pairs) - 350ps/10m maximum

Attenuation - 10dB/10m maximum @ 1.25Ghz

Conductor DC Resistance - 0.026ohm/ft maximum @ 20°C

Conductors (two pair) - 24AWG Solid, Silver plated copper

Insulation - Foam polyolefin

Pair drain wire - 26AWG Solid, Silver plated copper

Pair shield - Aluminum/polyester tape, 125% coverage

Overall cable shield - Aluminum/polyester tape, 125% coverage, Tin plated copper braid, 38AWG, 85% coverage

Outer diameter - 6.47mm

Features

Features: Copper cable assembly

Cost-effective, short length alternative to optical cable

Perfect for 10Gb Ethernet and Fiber Channel applications

Warranty, Returns, And Additional Information

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.cablestogo.com/|
Support Phone: 1-800-506-9607
Support Email: customer-service@c2g.com|
Support Website|
