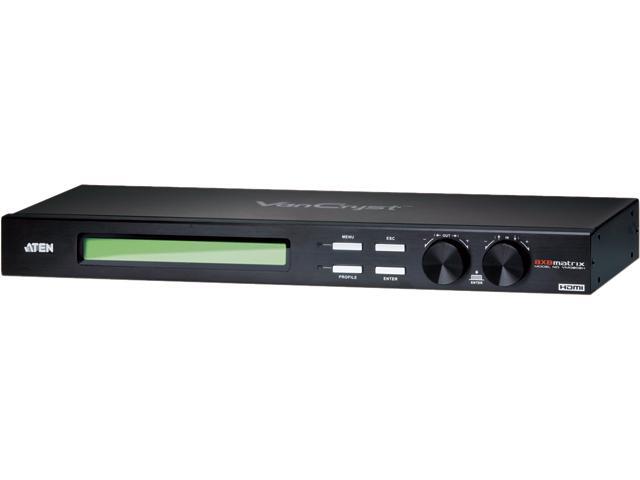

ATEN VM0808H 8x8 HDMI Matrix Switch

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The ATEN VanCryst™ VM0808H 8x8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays,and view them in any arrangement.

As a matrix switch the VM0808H allows eight HDMI source devices to cross connect to eight HDMI displays at the same time, while independently controlling the output in any array possible, giving you the ultimate flexibility and control in any multi-display HDMI installation.

Learn more about the ATEN VM0808H

Model

Brand: ATEN

Model: VM0808H

Details

Type: HDMI Switchers

Color: Black

Ports: 16

Audio: Yes

Specifications: Connectors:
Ethernet: 1 x RJ-45 Female
RS-232: 1 x DB-9 Female (Black)
IR Input Port: 1 x Mini Stereo Jack Female (Black)
Power: 1 x 3-prong AC Socket

Switches
In: 1 x Tuner Button
Out: 1 x Tuner Button
Esc: 1 x Pushbutton
Menu: 1 x Pushbutton
Pro?le: 1 x Pushbutton
Enter: 1 x Pushbutton
Power: 1 x Rocker

LEDs
Menu: 1 (Green)
Profle: 1 (Green)

I/P Rating: 100-240VAC; 50-60Hz;1A
Power Consumption: 120V,32W/230V,34W

Environment:
Operating Temp: 32-122 degree F
Storage Temp. -4 -140 degree F
Humidity 0-80% RH, Non-condensing
Housing: Metal

Connectors

Input Connector: 8 x HDMI Type A Female (Black)

Output Connector: 8 x HDMI Type A Female (Black)

Performance

Maximum Resolutions: 1920 x 1200

Features

Features: Connects any of 8 HDMI sources to any of 8 HDMI displays

Long Distance Transmission - supports up to 65 ft (24 AWG)

HDMI (3D, Deep Color) and HDCP compatible

Easily switch between multiple sources and multiple displays

Local Operation:
- Front panel LCD display
- Tuner Dials and Pushbuttons
- IR Remote Control
- Serial controller
Remote Operation:
- Browser Graphical User Interface (GUI)

Superior video quality - HDTV resolution of 480p, 720p, 1080i, and 1080p (1920 x 1080), VGA, SVGA, SXGA, UXGA and WUXGA (1920 x 1200)

Supports Dolby True HD and DTS HD Master audio

Signaling rates up to 2.25 Gbits in support of 1080p display

Feature EDID Expert technology to set up different con?gurations via different EDID modes

Power on Detection - If an HDMI sources is powered off, the VM0808H can automatically switch to the next powered-on source

Firmware upgradeable

Rack Mountable
