Item#: N82E16812866004

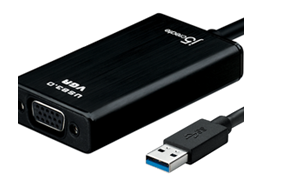

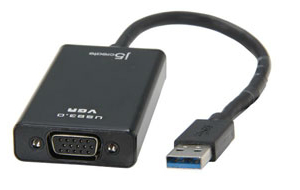

j5create JUA310 USB 3.0 to VGA Display Adapter

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

JUA310 USB 3.0 VGA Display Adapter

  • Increase Efficiency and Productivity
  • Supports Display Resolution up to 2048 x 1152 - 32-Bit
  • Primary, Extended or Mirror Modes
  • Display Rotation Functionality: 90°, 180°, 270°
  • Plug and Play USB connectivity
  • Use up to Four Adapters Simultaneously

Looking for an easy way to add a second monitor? Here it is! The JUA310 USB 3.0 Display Adapter from j5Create works as an external video card, instantly allowing users to attach additional displays via VGA connection without the hassle of a lengthy setup or having to install additional internal hardware. The j5Create USB 3.0 Display Adapter can support up to four displays running on the same computer, turning your workstation into a fully functioning multi-display powerhouse.


This video-over-USB adapter works as an external video card, instantly allowing additional displays, without the hassle of opening the computer case and installing an internal graphics card. You can have your second monitor with an extended display, a mirrored display, a rotational display (rotation mode not available for Mac), or make it your primary monitor.


Now enjoy true 1080p HD resolution through any computer with a USB 3.0 port. These adapters are also backwards compatible with USB 2.0 resolutions and playback, ideal for office applications. Simple "Plug and Play" operation allows you to connect your computer to a second monitor or projector and within seconds to create a new visual environment.


Resolutions and Color Depth

Aspect Ratio Resolution Color Depth
Wide Screen Display
16:9 2048 x 1152 16-, 32-bit
16:10 1920 x 1200 16-, 32-bit
16:9 1920 x 1080 16-, 32-bit
16:10 1680 x 1050 16-, 32-bit
16:9 1600 x 900 16-, 32-bit
16:10 1440 x 900 16-, 32-bit
16:9 1366 x 768 16-, 32-bit
16:9 1360 x 768 16-, 32-bit
16:10 1280 x 800 16-, 32-bit
15:9 1280 x 768 16-, 32-bit
16:9 1280 x 720 16-, 32-bit
Standard Display
4:3 1600 x 1200 16-, 32-bit
4:3 1400 x 1050 16-, 32-bit
5:4 1280 x 1024 16-, 32-bit
4:3 1280 x 960 16-, 32-bit
4:3 1152 x 864 16-, 32-bit
4:3 1024 x 768 16-, 32-bit
4:3 800 x 600 16-, 32-bit


Learn more about the j5create JUA310




USB to VGA Adapters
Changer Type
USB 3.0 to VGA

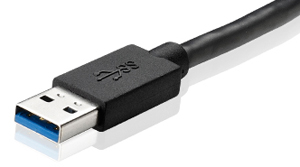

Host Interface: USB 3.0 Type-A Connector

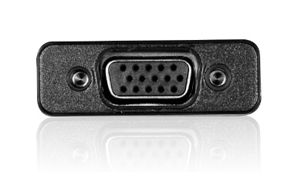

Video Interface: VGA-DB 15 pin Female Connector

Housing Material: Aluminum

Power Mode: Bus-powered
Power Consumption: 400mA

Wide Screen Display: Up to 2048x1152(16:9), 1920x1200(16:10)
Standard Display: Up to 1600x1200(4:3), 1280x1024(5:4)

Operating System:
Windows XP / Win 7
Mac OS X v10.6 / v10.7
Available USB port (USB 3.0 is recommanded)


Compliant USB 3.0 and USB 2.0

Supports display resolution: 2048 x 1152 @ 32bit

Performing up to HD 1080p under Windows 7 USB 3.0

Suggest Windows XP and Mac USB 2.0 for office application only

Plug-and-Play USB connectivity after software installed

Add up to 6 adapters for multiple displays for office applications

Supports Display Modes: Primary, Extended, and Mirror

Display Rotation: 0, 90, 180, 270 degree Celsius

Stylish Aluminum housing

Package Contents

Package Contents
USB VGA Display Adapter
Driver CD with E-Manual
Quick Installation Guide
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Customer Reviews of the j5create JUA310

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Anonymous
  • 2/26/2014 7:51:48 AM
  • Ownership: 1 week to 1 month

5 out of 5 eggsWorks Great!

Pros: Easy to install, very easy to use. Video looks great!

Cons: Drivers do not auto-update, have to uninstall current driver and re-install new driver manually.

Did you find this review helpful? Yes No

  • Anton S.
  • 5/17/2013 8:57:25 AM
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsnot a video card

Pros: nice package

Cons: 1. Does not work via USB HUB
2. Does Not Work at all

Other Thoughts: It is an adapter, not an external video card - connections from USB male are soldered to VGA female. Software is supposed to convert signals from YOUR video card to USB. It does not - my regular screens flickered, and some of the windows disappeared, but the screen attached via j5Create remained blank. When I switched j5Create OFF, missing windows reappeared on one of my main screens, all jumbled.
Tested on Gigabyte MB, Sec Gen i7, 3.4, GeForce 560 Ti, 32 Gb Mem. and on HP laptop with i5.
An iogear USB 2 DVI External card bought at NewEgg works perfectly on any of my machines, including 3 years old IBM T61 laptop.

0 out of 2 people found this review helpful. Did you? Yes No
