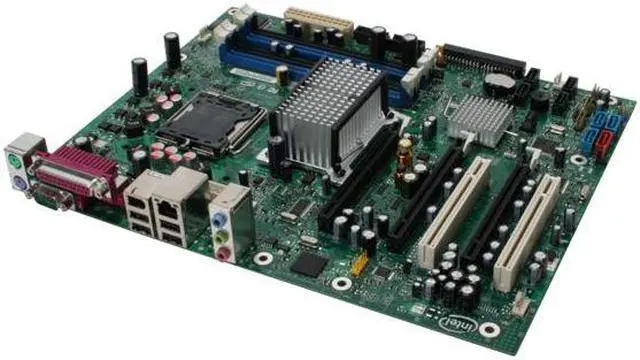

Intel S975XBX2 ATX Workstation Board LGA 775 Intel 975X DDR2 800
- LGA 775
- Intel 975X
- 4 x 240Pin
Specs
Reviews (6)
Any questions? Our AI beta will help you find out quickly.
Try me now

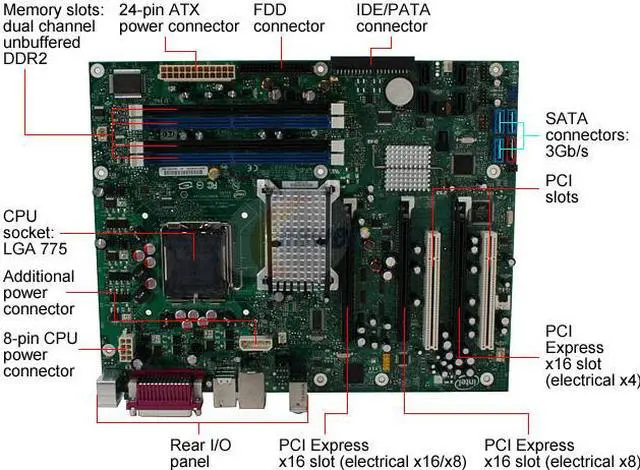

Learn more about the Intel S975XBX2
| Brand | Intel |
|---|---|
| Model | S975XBX2 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Core2 Extreme Intel Core2 Duo Intel Pentium D Intel Pentium4 Extreme Edition Intel Pentium 4 |
| System Bus | 1066/800/533 MHz |
| North Bridge | Intel 975X |
|---|---|
| South Bridge | Intel ICH7R |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI Express x16 (electrical x16/x8) 1 x PCI Express x16 (electrical x8) 1 x PCI Express x16 (electrical x4) |
|---|---|
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/10/5 |
| Additional SATA | Discrete SATA RAID Controller with four additional SATA Ports (3.0 Gb/s) |
| Audio Chipset | Intel High Definition Audio |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82573E |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Features | Intel Core Extreme processor based on Intel Core microarchitecture: Delivers world-class performance, as well as superior energy/power efficiency Intel 975X Express chipset: Enables key performance-optimized capabilities Platform Environmental Control Interface (PECI): Provides excellent digital thermal control Intel Matrix Storage Technology: Provides data protection against a hard drive failure and quicker access to digital photo, video, and business files with RAID 0, 1, 5, and 10 |
|---|
| Form Factor | ATX |
|---|
| Package Contents | S975XBX2 User Manual Driver Disk 4 x SATA Cable 2x Floppy Drive Diskette Other Accessories |
|---|
| First Listed on Newegg | June 14, 2007 |
|---|
