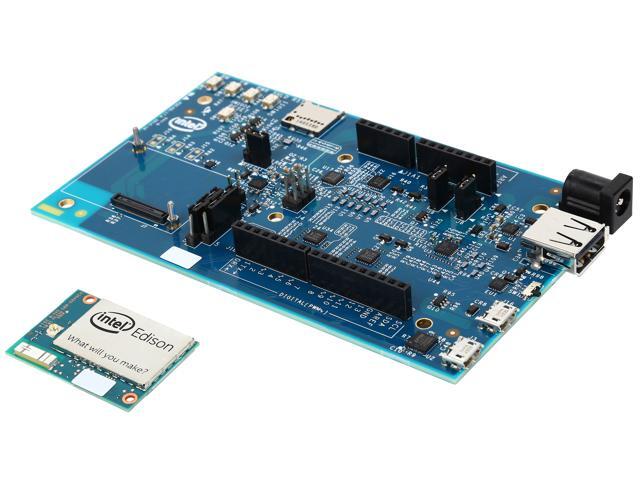

Intel EDI2ARDUIN.AL.K Dual Core IA-32 @ 500 MHz, 32-bit Intel Atom Processor Z34xx Series @ 100 MHz Board with 70-pin connector Motherboard/CPU Combo

Open Box

Sold and Shipped by Newegg

Dual Core IA-32 @ 500 MHz, 32-bit Intel Atom Processor Z34xx Series @ 100 MHz
1 GB LPDDR3 POP memory (2 channel 32 bits @ 800 MT/sec)
4 GB eMMC (v4.51 spec) Internal storage

Specifications
Warranty & Returns
Q&A

Learn more about the Intel EDI2ARDUIN.AL.K

Model

Brand: Intel

Model: EDI2ARDUIN.AL.K

Combo Type: Motherboard/CPU Combo

Bundle

CPU: Dual Core IA-32 @ 500 MHz, 32-bit Intel Atom Processor Z34xx Series @ 100 MHz

Memory

Memory Standard: DDR3, NAND FLASH

Maximum Memory Supported: 4GB

Onboard LAN

Wireless LAN: Broadcom* 43340 802.11 a/b/g/n;
Dual-band (2.4 and 5 GHz)
Onboard antenna

Bluetooth: Bluetooth 4.0

Rear Panel Ports

USB 1.1/2.0: 1 x USB 2.0

Internal I/O Connectors

Other Connectors: Hirose DF40 Series (1.5, 2.0, or 3.0 mm stack height)

Features

Features: The Intel Edison development platform is designed to lower the barriers to entry for a range of inventors, entrepreneurs, and consumer product designers to rapidly prototype and produce "Internet of Things" (IoT) and wearable computing products.

Intel Edison Board for Arduino*

Supports Arduino Sketch, Linux, Wi-Fi, and Bluetooth.
Board I/O: Compatible with Arduino Uno (except 4 PWM instead of 6 PWM):
- 20 digital input/output pins, including 4 pins as PWM outputs.
- 6 analog inputs.
- 1 UART (Rx/Tx).
- 1 I2C.
- 1 ICSP 6-pin header (SPI).
- Micro USB device connector OR (via mechanical switch) dedicated standard size USB host Type-A connector.
- Micro USB device (connected to UART).
- SD card connector.
- DC power jack (7 to15 VDC input).

Intel Edison Breakout Board
Slightly larger than the Intel Edison module, the Intel Edison Breakout Board has a minimal set of features:
- Exposes native 1.8 V I/O of the Edison module.
- 0.1 inch grid I/O array of through-hole solder points.
- USB OTG with USB Micro Type-AB connector.
- USB OTG power switch.
- Battery charger.
- USB to device UART bridge with USB micro Type-B connector.
- DC power supply jack (7 to 15 VDC input).

Intel IoT Analytics Platform
- Provides seamless Device-toDevice and Device-to-Cloud communication.
- Ability to run rules on your data stream that trigger alerts based on advanced analytics.
- Foundational tools for collecting, storing, and processing data in the cloud.
- Free for limited and noncommercial use.
