Currently Unavailable
-
-
-
Manufacturer Warranty
Beyond any applicable Newegg return policy, this item is warranted independently by the product's Manufacturer. Below is a summary provided for convenience only and may not be accurate or current.
Use this link for full details.
- Manufacturer Limited Warranty period (parts): 3 years
- Manufacturer Limited Warranty period (labor): 3 years
Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 63%
- 4
-
- 24%
- 3
-
- 3%
- 2
-
- 4%
- 1
-
- 6%
| Product Rating: |

|
| Total Reviews: |
143 |
- Pros: Awesome Motherboard, runs like a champ once everything was tuned
- Cons: Some instability with 8gigs of ram, but once I disabled their overclocking software I had no issues.
- Other Thoughts: This motherboard is an awesome buy, I highly recommend it.
Don't Buy!!!
- Pros: No comment.
- Cons: Constantly Blue Screens. Gigabyte advertises that this m/b supports 8 gb of memory. I'm running WinXP 64 and cannot get the m/b stable with 8gb of ram. Boots up, I login then system blue screens. Have tried new memory and bios updates but no success. Will try to rma board but because I've been fighting this problem so long, probably won't be able to send it back. WILL NEVER BUY ANOTHER GIGABYTE PRODUCT! Their on line support is very slow, don't expect a reply for at least several days. I used to buy ECS m/b and decided to buy quality this time, guess I was mistaken. Suppose I'll try Asus.
Great Starting Bord
- Pros: This is a great bord for someone who wants to build their first computer or does not have a great understanding of computers. Its bios is solid expecialy if you put it on its failsafe setting. I would recomend this bord for anyone who wants to have a rock solid computer without many problems.
- Cons: Although I usually overclock a computer using my bios I wanted to try the windows overclocking system provided by the Gigabyte software this was a fatial mistake. Although I only adjusted the fan speed, it caused a major error and caused my computer to hard lock after every boot. In the end I had to revert back to the fail safe settings and remove EasyTune 5 Pro from my operating systems. I also had some problems overclocking since the FSB OverVoltage can only be increased by +0.3v. But I did get Core 2 Quad to clock at 3.30GHz with a Zalman 9700 NT and it passed the Prime95 torture test.
- Other Thoughts: In the end I think this bord is great for any person who just wants to learn about computers and overclocking. But if you have extreme gaming or overclocking in mind I advise you go with a higher end bord.

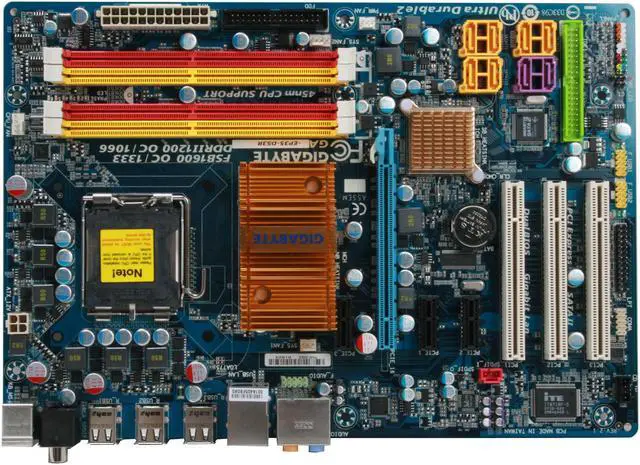

| Model |
| Brand |
GIGABYTE |
| Model |
GA-EP35-DS3R |
| Supported CPU |
| CPU Socket Type |
LGA 775 |
| CPU Type |
Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| FSB |
1600 (O.C.)/1333/1066MHz |
| Chipsets |
| North Bridge |
Intel P35 |
| South Bridge |
Intel ICH9R |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 1200 (O.C.)/1066 |
| Maximum Memory Supported |
8GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express x16 |
1 |
| PCI Express x1 |
3 x PCI Express x1 slots (share with the PCIE_16_2 slot) |
| PCI Slots |
3 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
8 |
| SATA RAID |
0/1/5/10 |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC889A |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Realtek 8111B |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
2 |
| USB 1.1/2.0 |
8 x USB 2.0 |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
2 x USB 2.0/1.1 headers |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 8.3" |
| Power Pin |
24 Pin |
| Packaging |

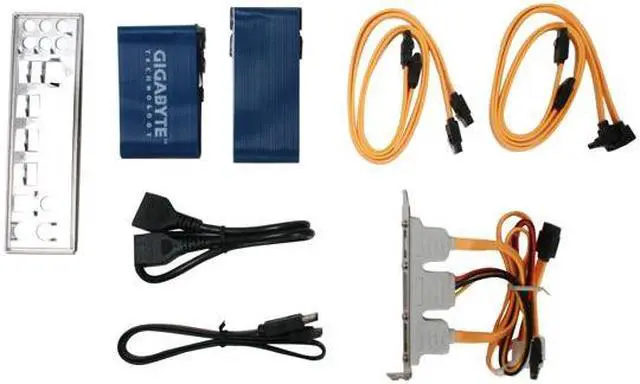

| Package Contents |
GA-EP35-DS3R
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
4 x SATA Cable
eSATA Bracket
eSATA Cable & eSATA Power Cord |
| Manufacturer Warranty |
| Parts |
3 years limited |
| Labor |
3 years limited |
|
|
Reviewed By: TheHye on 8/28/2008
Tech Level: somewhat high - Ownership: 1 month to 1 year
