GIGABYTE GA-EP35-DS4 LGA 775 Intel P35 ATX Dynamic Energy Saver Ultra Durable II Intel Motherboard
- Intel P35
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1200 (O.C.)/1066
Specs
Reviews (46)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-EP35-DS4
| Brand | GIGABYTE |
|---|---|
| Model | GA-EP35-DS4 |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| Chipset | Intel P35 |
|---|---|
| South Bridge | Intel ICH9R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1200 (O.C.)/1066 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x4.) |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Chipset | Realtek ALC889A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8111B |
|---|---|
| Max LAN Speed | 1Gbps |

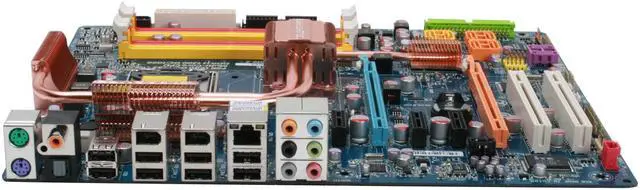

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 2 x IEEE 1394a |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0/1.1 headers |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |

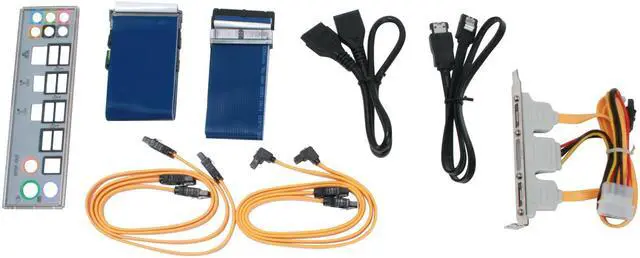

| Package Contents | GA-EP35-DS4 Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable 6 x SATA Cable eSATA Bracket eSATA Cable & eSATA Power Cord |
|---|
| First Listed on Newegg | February 01, 2008 |
|---|
