Manufacturer Contact Info
Return Policies
This item is covered by Newegg.com's Standard Return Policy.
- Return for refund within: 30 days
- Return for replacement within: 30 days
- Restocking Fee: Yes
|
-
- 5
-
- 64%
- 4
-
- 19%
- 3
-
- 6%
- 2
-
- 2%
- 1
-
- 9%
| Product Rating: |

|
| Total Reviews: |
459 |
Good motherboard!
- Pros: Great card. fits perfectly in my case, comes bristled with fan headers.
Stock heatsink for the cpu works great, the I/O shield seems a bit off, but that just may be because of my doing. Love how it has 4 DIMM slots.
- Cons: When i got the motherboard, the screws for securing it into place onto the case were missing. i had to use screws i had from older computers lying around to secure it. Another thing, is the front audio header is ridiculously far away from where it should be : near the front! I had to use the regular audio connector for the front panels. no HD Audio in the front :( BIOS flashing worked fine, i put a Phenom II x4 955 in it, and it ran at 1.8 GHZ until i updated the BIOS.
- Other Thoughts: If it didn't have those issues above, it'd be a great mobo. Thanks Gigabyte :D
- Pros: Wonderful board design. Runs beautifully even before you have everything fine-tuned to your liking. Once the issues below are solved, I'll be perfectly happy with this board.
- Cons: Northbridge heat sink was horrifically loose. Absolutely no corner supports at all, and it had no pressure on the chipset. Easily jostled by a light bump as I was putting it into the case, resulting in the thermal paste bond being destroyed. I doubt it would've had decent thermal transfer even before then, either.
- Other Thoughts: Waiting for a response from Gigabyte's support team to decide whether to RMA for a replacement or just hit the hardware store for some bits and bobs needed to stabilize and tighten the NB heatsink's grip. It all depends on if they call it a rare manufacturing defect or a widespread design flaw.
easy as pie
- Pros: good board cheap price, manual makes it easy to use and the install was a snap.
- Cons: i found the bios reset was in the shadow of a battery, not a good place for it makes it hard to find, but overall come on, its as good as it gets for the price.
- Other Thoughts: id buy it again in a flash prolly gonna end up using it for my gfs pc 2.

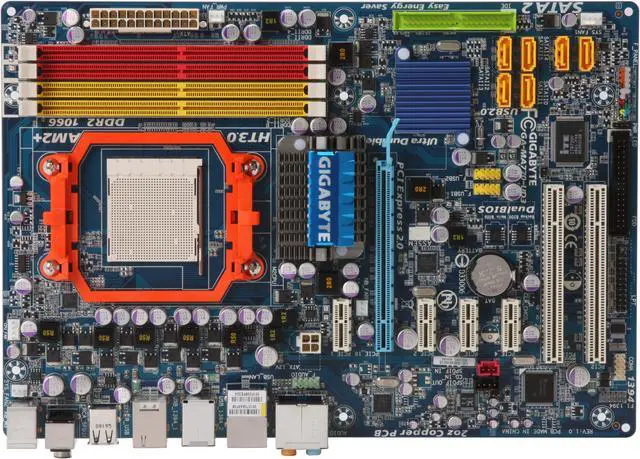

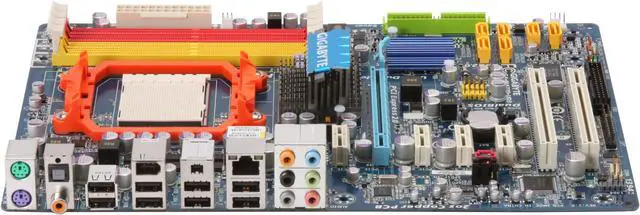

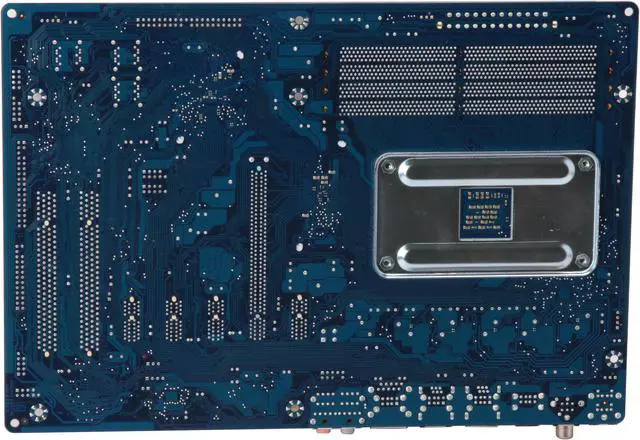

| Model |
| Brand |
GIGABYTE |
| Model |
GA-MA770-UD3 |
| Supported CPU |
| CPU Socket Type |
AM2+/AM2 |
| CPU Type |
Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 |
| FSB |
2600MHz Hyper Transport (5200 MT/s) |
| Chipsets |
| North Bridge |
AMD 770 |
| South Bridge |
AMD SB700 |
| Memory |
| Number of Memory Slots |
4×240pin |
| Memory Standard |
DDR2 1066 |
| Maximum Memory Supported |
16GB |
| Channel Supported |
Dual Channel |
| Expansion Slots |
| PCI Express 2.0 x16 |
1 |
| PCI Express x1 |
4 |
| PCI Slots |
2 |
| Storage Devices |
| PATA |
1 x ATA100 2 Dev. Max |
| SATA 3Gb/s |
6 |
| SATA RAID |
0/1/10 |
| Onboard Video |
| Onboard Video Chipset |
None |
| Onboard Audio |
| Audio Chipset |
Realtek ALC888 |
| Audio Channels |
8 Channels |
| Onboard LAN |
| LAN Chipset |
Realtek 8111C |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
| PS/2 |
2 |
| USB 1.1/2.0 |
8 x USB 2.0 |
| IEEE 1394 |
2 x IEEE 1394a |
| S/PDIF Out |
1 x Optical, 1 x Coaxial |
| Audio Ports |
6 Ports |
| Onboard USB |
| Onboard USB |
2 x USB 2.0/1.1 headers |
| Onboard 1394 |
| Onboard 1394 |
1x 1394a |
| Physical Spec |
| Form Factor |
ATX |
| Dimensions |
12.0" x 8.3" |
| Power Pin |
24 Pin |
| Packaging |

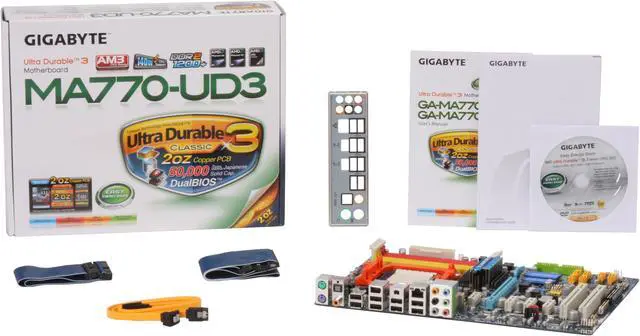

| Package Contents |
GA-MA770-UD3
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable |
|
|
Reviewed By: Liiiiiizzzzarddddd on 11/17/2009
Tech Level: somewhat high - Ownership: 1 week to 1 month
