Item#: N82E16813128446

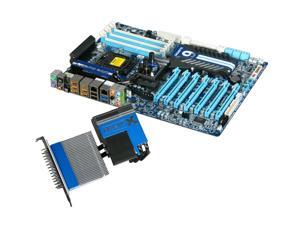

GIGABYTE GA-X58A-UD9 LGA 1366 Intel X58 SATA 6Gb/s USB 3.0 XL ATX Intel Motherboard

  • Intel X58
  • Core i7 (LGA1366)
  • DDR3 2200+/1333/1066/800
ICON Loading...

Based on the Intel X58 and ICH10R chipset, which is the high-end platform for Intel's LGA 1366 Core i7 processors with QPI 6.4 GT/s, the Gigabyte GA-X58A-UD9 delivers bulks of next generation features that gaming enthusiasts and power users have been waiting for.

The Gigabyte GA-X58A-UD9 includes Gigabyte’s 333 Onboard Acceleration features. Incorporates USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost, as well as multi-GPU support for NVIDIA 4-Way SLI and ATI CrossFireX and support for Intel's high performance processors, every part of the system performance reaches the cutting-edge. With the memory controller integrated directly into the processor die, the Gigabyte GA-X58A-UD9 also supports triple channel DDR3 memory for blazing fast memory performance.

System durability and security are as important as ever. Gigabyte's DualBIOS system has a second BIOS chip on the motherboard for quick and painless recovery from crashes and viruses. Count on Gigabyte's experience and innovation!

  • newegg Intel Core i7 Support Based on the X58 chipset, the Gigabyte GA-X58A-UD9 supports Intel’s latest generation Core i7 LGA 1366 processors, providing unprecedented computing power to match the performance levels you are looking for.
  • newegg Gigabyte 333 Onboard Acceleration The Gigabyte GA-X58A-UD9 delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for by incorporating Gigabyte's 333 Onboard Acceleration features with support for USB 3.0, Serial-ATA Revision 3.0 (6Gbps) and a 3x USB Power Boost.
  • newegg 4 Way SLI and CrossFireX Support The Gigabyte GA-X58A-UD9 provides leading-edge graphics performance and flexibility with support for NVIDIA 2-way/3-way/4-way SLI and ATI CrossFireX Multi-GPU Technology.
  • newegg Ultra Durable 3 Technology The Gigabyte GA-X58A-UD9 features revolutionary Ultra Durable 3 technology with a 2oz copper PCB design to help reduce system temperature and dramatically enhance performance.
  • newegg Scalable DDR3 Memory Six 240-pin DIMM sockets support up to 24GB of DDR3 memory with triple channel DDR3 support (Core i7) at speeds of up to 2200MHz, ensuring ample capacity for any application.
  • newegg Gigabyte DualBIOS Gigabyte DualBIOS technology protects the BIOS from virus attacks. With its innovative backup BIOS design, this platform provides twice the security thus assuring the PC’s stability.

Learn more about the GIGABYTE GA-X58A-UD9

Model

Brand
GIGABYTE
Model
GA-X58A-UD9

Supported CPU

CPU Socket Type
LGA 1366
CPU Type
Core i7 (LGA1366)
FSB
QPI 6.4GT/S

Chipsets

Chipset
Intel X58
South Bridge
Intel ICH10R

Memory

Number of Memory Slots
6×240pin
Memory Standard
DDR3 2200+/1333/1066/800
Maximum Memory Supported
24GB
Channel Supported
Triple Channel

Expansion Slots

PCI Express 2.0 x16
4 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2/PCIEX16_3/PCIEX16_4) (Note 1)

3 x PCI Express x16 slots, running at x8 (PCIEX8_1/PCIEX8_2/PCIEX8_3) (Note 2)

(Note 1) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_3 slots.

(Note 2) Each PCIEX8 slot shares bandwidth with the corresponding PCIEX16 slot (PCIEX8_1 with PCIEX16_1, PCIEX8_2 with PCIEX16_2, and PCIEX8_3 with PCIEX16_3). When a PCIEX8 slot is populated, its corresponding PCIEX16 slot will operate at up to x8 mode.

Storage Devices

PATA
1 x ATA133 2 Dev. Max
SATA 3Gb/s
8
SATA 6Gb/s
2 x SATA 6Gb/s

Onboard Video

Onboard Video Chipset
None

Onboard Audio

Audio Chipset
Realtek ALC889
Audio Channels
8 Channels

Onboard LAN

LAN Chipset
Realtek 8111D
Second LAN Chipset
Realtek 8111D
Max LAN Speed
Dual 10/100/1000Mbps

Rear Panel Ports

PS/2
2
USB 3.0
2 x USB 3.0
USB 1.1/2.0
4 x USB 2.0
IEEE 1394
2 x IEEE 1394a
eSATA
2 x eSATA 3Gb/s connectors (eSATA/USB Combo)
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
4 x USB 2.0
Onboard 1394
1 x 1394a

Physical Spec

Form Factor
XL ATX
Dimensions
13.58" x 10.31"
Power Pin
24 Pin

Features

Features
Supports new generation Intel 32nm 6-core processors

The best CPU VRM Power design for extreme 6 core CPU overclocking

4 Way SLI with 2 nF200 SLI bridges & 4 Way CrossfireX support for ultimate graphics performance

7 PCIe 2.0 x16 slots for maximum expansion capability

Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch

Ultra Durable 3 Technology with copper cooled quality for lower working temperature

Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps

3X USB power delivery for greater compatibility and extra power for USB devices

Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed

Smart 24 power phase design with mutual back-up to each 12 phase

Revolution energy saving design with DES 2 featuring hardware based Dynamic 6-Gear switching

New Hybrid Silent-Pipe 2 design provides unequalled heat conductivity

Unique hardware control IC to provide more precision voltage control

The unique DualBIOS with dual hardware BIOS protection

Smart Dual LAN for non-stop network connection & 2GbE speed

Stylish Power/reset/Clr CMOS onboard button for easily operation on the workbench

Blu-ray playback outputs supported by high quality 108dB SNR ALC889 HD audio

Compatible with Window 7 to deliver the best operation experience

Manufacturer Warranty

Parts
3 years limited
Labor
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years


Customer Reviews of the GIGABYTE GA-X58A-UD9

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Alexander C.
  • 7/5/2012 9:53:22 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsGood board with some flaws

Pros: There are a lot of expansion and memory slots, as well as a ton of SATA ports, making this a nice board for any sort of server. It's also good for a gaming machine, considering all of the things you can put on it.

There's also a very handy numerical readout that will display error codes when something DOES go wrong, so there's no need to interpret a bunch of beeps (although that's still an option if the readout stops working). This makes analyzing problems a quicker and less frustrating experience.

There's a dual LAN on the board. Haven't tried it, but it's an interesting idea at least.

Cons: The "Hybrid Silent Pipe" liquid/air cooling stuff is just about useless for cooling the northbridge. I'm not sure if liquid cooling would have any noticeable effect on northbridge temps, as the base which all of the cooling systems attach to is a solid block of metal with an array of fans in between, sandwiching pockets of air which get heated and radiate heat before you even get to the liquid or air cooling solutions. Interestingly, however, removing everything from the metal bit (like the water cooling attachment) and scraping off the thermal paste will lower your northbridge temp noticeably.

I haven't experimented with removing the Hybrid Silent Pipe system entirely, but I hazard a guess you could get better cooling with another solution (currently it sits at about 65C).

There may be some electromagnetic interference from the board as well, so mic users beware.

Other Thoughts: This is an older board and can't support Intel Sandy Bridge processors, but for what it is it's actually pretty decent.

The manual is well designed, and GIGABYTE's support site is decent, although they lack a few unnecessary drivers that Windows screams about.

Box makes a great carrying case for all sort of little parts.

Did you find this review helpful? Yes No

  • Judith A.
  • 11/13/2011 8:12:51 PM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsstill works

Pros: still work like a charm of coarse I had the mainboard watercooled with aftermarket waterblocks first day. Its been over a year have upgraded the cpu to w3690 its fast. long atx board longer 3dmark vantage score ultra pumped up vantage score and cpu scores just fast with anything. reliable have thrown every different bois combo at it when its to much system just reset to stock bois.

Cons: none

Other Thoughts: my board is watercooled with aftermarket waterblocks. and proformance is as fast as the first LN2 scores reported when the board first came out. I have a w3690 this might also be why in the end thanks Newegg.

Did you find this review helpful? Yes No

  • George H.
  • 2/26/2011 10:51:55 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

2 out of 5 eggsWorked for 2 weeks

Pros: When it was working it was fine.

Cons: After two weeks, it just failed. Screen went blank. I turned it off and then back on and nothing. It powers up and that is the extent of it. No beeps, no video, nada. So now I'm back to the drawing board trying to figure out what went wrong. So far I have swapped out the keyboard, mouse, and monitor. No help. Now it looks like the heat sink has to come off to get to the memory and see if reseating it will correct the problem. If not that, then swap out the video card. Oh I wish I bought a different motherboard!

1 out of 1 people found this review helpful. Did you? Yes No

  • Alexander K.
  • 12/20/2010 10:14:31 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsDead?

Pros: Does not Post, thus no Pros

Cons: The exact same issue unbiased posted: During POST, indicator run through all numbers till FF, - ready to boot up, however there is no video signal from brand new GTX 480 card (which works on a UD5) mounted on the 16XPCIe slot. One long and one short beeps during POST indicate potential problem with the motherboard.

Design is not well thought. PCIE_12 V connector is interfering with Hybrid Silent-Pipe Module

Other Thoughts: I have posted this issue on the Steam forums (nick: Alkpaz) and have sent a message to Gigabyte (alk3). I have tested the mobo on TWO PSUs and still no video, although, I get a FF on the board. I connected the PCI-E_2 molex and still nothing, had two 8 pin power connectors, 1250W and a 1000W PSUs nothing.. the processor is a i7 980x.

I will purchase another board and see if that solves the issue, if not I will just cut my losses and install my 980 in my UD5.

The best case for this mobo is the Coolermaster HAF X, as a FYI.

Manufacturer Response:

Dear Customer,

Thank you for your comments. We apologize for your difficulty with your Gigabyte product. Please contact us at newegg-support@gigabyte-usa.com with the case number 64941 in the subject line. We will provide personalized service and analysis to help solve your issue ASAP. If the matter is urgent, please send us your contact number, and we will contact you.

Gigabyte VIP Support Team

Did you find this review helpful? Yes No

  • Peter C.
  • 12/13/2010 4:01:12 AM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsNon-standard board size

Pros: None

Cons: This board comes bundled with the Intel i7 950, but the discounted option fails to mention the need for a non-standard case. The XL ATX case size isn't a filter option when searching for a case menu. Seems this information should be disclosed if refunds/returns are not allowed.

Other Thoughts: Non-standard MB form factors are a problem, but especially when they provide no benefit to the user, as in the case of the UD9.

Manufacturer Response:

Thank you for your comments. Honest and constructive opinions are always welcome. We apologize for your difficulty with your Gigabyte product.

An XL-ATX sized form factor is needed to supply 7x PCIE slots on a motherboard.

Also, Newegg's website (under Details), as well as Gigabyte's website lists the form factor as XL-ATX.

If you have further questions, contact us at newegg-support@gigabyte-usa.com with the case number 2010121309 in the subject line. We will provide personalized service and analysis to help solve your issue as soon as possible.

Gigabyte VIP Support Team

2 out of 7 people found this review helpful. Did you? Yes No

  • phong n.
  • 12/10/2010 9:44:56 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

3 out of 5 eggswow too expensive

Pros: many Mosfets which will support extremely high overclock and 4 ways SLI

Cons: too small watercool inlet for the chipset
more expensive than similar feature eVGA X58 Classified 4-Way SLI
more expensive than eVGA Classified SR-2 which support dual core and can run one easily

Other Thoughts: Gigabyte has a brand name in the industry, but has no excuse to price their product too high like this

Buying similar feature board with much lower price is possible through eVGA and ASUS

Not recommend to buy this product. I own a UD7 motherboard, which is easy overclock and the price is about right compare to ASUS rampage II

Did you find this review helpful? Yes No

  • sean m.
  • 12/6/2010 11:03:20 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

5 out of 5 eggsFits in Lian Li

Pros: This motherboard fits in the Lian Li- PC-80 Armorsuit.I have the case and motherboard.There is plenty of room left over for even a larger motherboard.

Cons: I have not found any since June.

Other Thoughts: It seems like either people hate this motherboard or love it. I have not had one issue with it so far.My previous motherboard (Asus P6T6 workstation Revolution)was not as good as this is.From the time I saw it available for purchase I knew this was the Motherboard for me.Has all the right features.I paid $699. for mine.Now it is $100 cheaper.Alot of people criticize this board and say it is overpriced and not enough features.I strongly dis agree.Everything has worked for me,posted first try.BIOS was not an adventure.

1 out of 2 people found this review helpful. Did you? Yes No

  • Anonymous
  • 12/3/2010 1:50:28 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

3 out of 5 eggsoverpriced

Pros: features for this motherboard rule. 4 way sli, usb 3.0 and sata 3 on a single cpu board. The only other way to get this is buying the dual cpu evga sr-2 board.

Cons: 1. Ram- I am using a Corsair set of ddr-3 1600 24gb ram set that I have to use at 1333 to allow the mb to see the full 24gb. I have tried manual settings and XMP settings, the mb sees less than the 24gb.

2. Price- I didn't buy my mb here, I bought it elsewhere at approx. $175 cheaper. Newegg at this time is the only north american seller of this board afaik as the seller I bought from (canadian online retailer) doesn't sell it anymore. Gigabyte, don't be exclusive just for massive profit please.

3. Sound- the onboard sound is supposed to have dolby home theatre features on it (on other retail brand name desktop pc's, this is actually a software feature where you can do creative like cmss-3d effects to it) but I have tried multiple releases of the whql realtek hd audio software and there is no feature shown upon install.

4. pci slot chipset heatsink vs. molex power connector- I asked gigabyte about this and you don't have to be using both molex board connectors for extra power.

2 out of 3 people found this review helpful. Did you? Yes No

  • Mark W.
  • 12/2/2010 8:44:33 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsQC YOUR CASES BEFORE APPROVAL,GIGABYTE!

Pros: The board has been working with and running my Adobe CS5 Master Suite.

Cons: This is a FOLLOW UP REVIEW to seriously CRITICIZE Gigabyte QC for continuing to list the Lian Li PC-P80 as an "approved case" when they have received photographic evidence of the OBVIOUS DESIGN FLAWS I gave them months ago. These flaws made my build a seriously difficult task and required HACK SAW "improvements" on both the motherboard tray and more importantly, cutting out several PCI slots, to correct the GPU short being caused by a bolted in motherboard tray sheath...

Other Thoughts: Lian Li was also sent photos of these design flaws and has since built the v2120. However, Gigabyte doesn't list this case as "approved" although it may actually work out of the box. I'm not sure. I will continue to look into this matter as I feel it is not being handled appropriately... This is very unfair to buyers who depend on this info being correct.

0 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 11/29/2010 10:22:26 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsSounds great, warranty a waste

Pros: Looks great, performs great, lots of features.

Cons: Most expensive MB I've ever bought. Failed in second month. Comes with 3 year parts and labor warranty. I sent it in, took a month for replacement to come, THAT MB was bad, sent it back, I've now been down for 2 months, still waiting for new MB to come in. I even paid for the warranty exchange (where you pay for a new one, they ship right away before your return makes it to them), still took forever. What's the point of fancy features if it's down for months on end.

Other Thoughts: For such an expensive motherboard, it seems they should to a little more to make someone buying it happy. Faster shipping maybe? The second time I even paid a computer store to check it (I couldn't believe it was bad again), maybe if they paid for that service charge? I've now spent 3500 on a new computer that runs half the time because of this motherboard.

Manufacturer Response:

Thank you for your comments. Honest and constructive opinions are always welcome. We apologize for your difficulty with your Gigabyte product. Please contact us at newegg-support@gigabyte-usa.com with the case number 2010113003 in the subject line.

Our normal replacement time for this model is usually 3-4 days. All replacement products are personally tested to factory specifications before being shipping.

Gigabyte VIP Support Team

1 out of 1 people found this review helpful. Did you? Yes No
