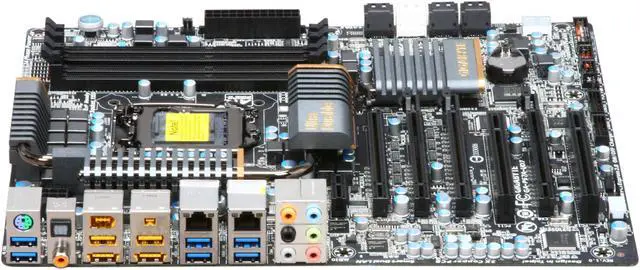

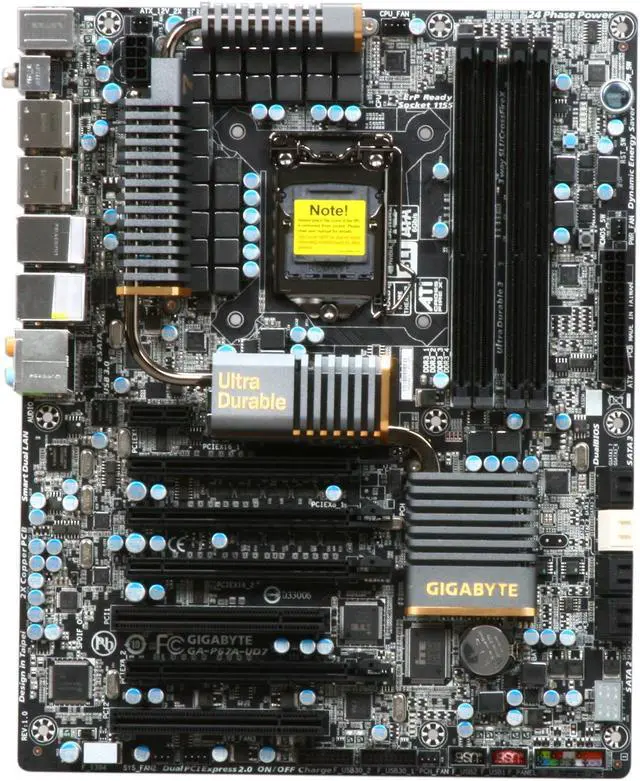

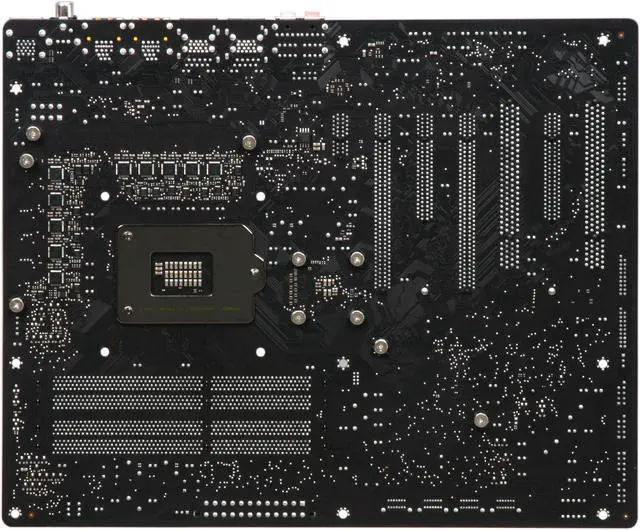

GIGABYTE GA-P67A-UD7 LGA 1155 Intel P67 USB 3.0 ATX Intel Motherboard

(13) Write a Review
  • Intel P67
  • Core i7 / i5 / i3 (LGA1155)
  • DDR3 2133/1866/1600/1333/1066
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (13)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-P67A-UD7

Model
Brand GIGABYTE
Model GA-P67A-UD7
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Chipsets
Chipset Intel P67
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2133/1866/1600/1333/1066
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 4 (x16, x16, x8, x8)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s by P67
2 x SATA 6Gb/s by Marvell 88SE9128 (Support for SATA RAID 0 and RAID 1)
SATA RAID 0/1/5/10 (When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.)
Onboard Audio
Audio Chipset Realtek ALC889
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Second LAN Chipset Realtek 8111E
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 1 x PS/2 keyboard/mouse port
USB 3.0 6 x USB 3.0 by Renesas D720200 chips and VLI VL810 hubs
USB 1.1/2.0 2 x USB 2.0
IEEE 1394 2 x IEEE 1394a by T.I. TSB43AB23 chip
eSATA 2 x eSATA 6Gb/s (eSATA/USB Combo) (Support for SATA RAID 0 and RAID 1)
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 3.0 by Renesas D720200 chips and VLI VL810 hubs
4 x USB 2.0 by P67
Onboard 1394 1 x IEEE 1394a by T.I. TSB43AB23 chip
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features Maximum Power Delivery

Industry's Leading TRUE 24 Phase Power Design

Dual CPU Power Technology

New 100% Hardware VRD 12 Compliant CPU Power Design

Driver MOSFETs - Integration of VRM Components

DualBIOS - Unique Dual Hardware BIOS Protection

Ultra Durable 3

On/Off Charge Technology

Turbo XHD- Full Automatic RAID 0

Dynamic Energy Saver 2

Multi-display Support with 3-way SLI and 3-way CrossFireX

Power eSATA- Power Cable-free

Extreme Cooling Solution

Smart 6 – Smarter PC system Management

AutoGreen- Greening your PC via Bluetooth cellphone

Hardware OverVoltage Control IC - Enabling Extreme Overclocking

Visible Overvoltage Reminder

Dolby Home Theater - Enjoy a Rich Home Theater Surround Sound Experience

ErP Lot 6 support
Additional Information
First Listed on Newegg January 08, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
