Model

Brand

GIGABYTE

Model

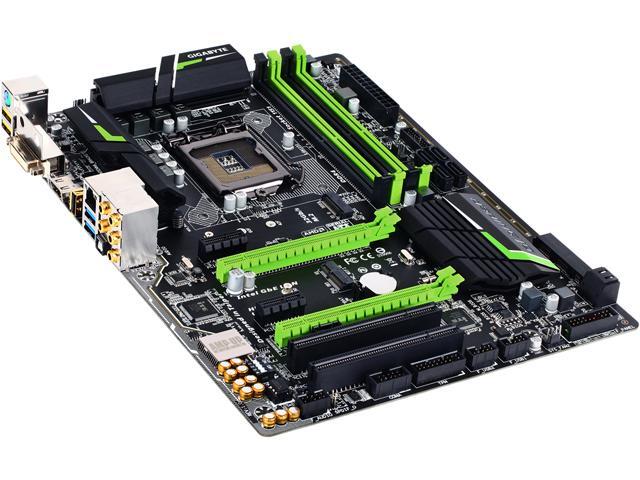

G1.Sniper B7 (rev. 1.0)

Supported CPU

CPU Socket Type

LGA 1151

CPU Type

Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets

Chipset

Intel B150

Memory

Number of Memory Slots

4×288pin

Memory Standard

DDR4 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

Expansion Slots

PCI Express 3.0 x16

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

PCI Express x1

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

PCI Slots

2 x PCI slots
* Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, SATA connectors, and PCI slots.

Other Slots

1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Devices

SATA 6Gb/s

6 x SATA 6Gb/s connectors
* Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, SATA connectors and PCI slots.

SATA Express

1 x SATA Express connector

M.2

1 x M.2 Socket 3 connector (M2F_32G) (Socket 3, M key, type 2242/2260/2280/22110 SATA & PCIe x4/x2/x1 SSD support)

Onboard Video

Onboard Video Chipset

Integrated Graphics Processor - Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Maximum shared memory of 512MB

Onboard Audio

Audio Chipset

Realtek ALC1150

Audio Channels

7.1 Channels

Onboard LAN

LAN Chipset

Intel GbE LAN chip

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

1 x PS/2 keyboard/mouse port

Video Ports

1 x DVI-D port

HDMI

1 x HDMI

RJ45

1 x RJ45

USB 3.0

4 x USB 3.0

USB 1.1/2.0

1 x USB 2.0

S/PDIF Out

1 x Optical

Audio Ports

5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors

Onboard USB

1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers

Other Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x Thunderbolt add-in card connector
1 x serial port header
1 x Clear CMOS jumper
1 x audio gain control switch

Physical Spec

Form Factor

ATX

Dimensions (W x L)

12.01" x 8.86"

Power Pin

24 Pin

Features

Features

Multi-Graphics Technology
- Support for 2-Way AMD CrossFire technology

I/O Controller
- iTE I/O Controller Chip

H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install

Bundle Software
- Norton Internet Security (OEM version)
- cFosSpeed

Operating System
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
