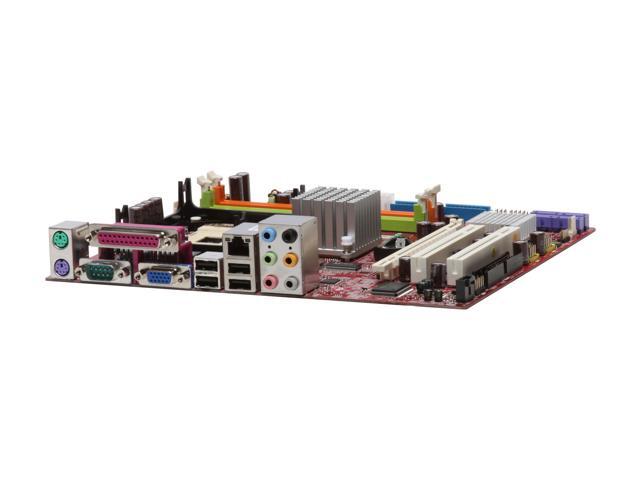

MSI 945GCM478-L 478 Intel 945GC Micro ATX Intel Motherboard - Retail

MSI 945GCM478-L Micro ATX Intel Motherboard - Retail

Image Viewer

Currently Unavailable

Manufacturer Contact Info

Return Policies

This item is covered by Newegg.com's Standard Return Policy.

Return for refund within: 30 days
Return for replacement within: 30 days
Restocking Fee: Yes

Review Summary (read all 47 Reviews)

59%

17%

11%

Product Rating:
Total Reviews:	47

Keeps a Northwood running

Reviewed By: Elalcalde on 12/25/2008

Tech Level: average - Ownership: 1 week to 1 month

This user purchased this item from Newegg

Pros: Zero problems with Hardy. ddr2, SATA, and PCIe give my old Northwood a second wind.

Cons: No official BIOS update.

1 out of 1 people found this review helpful. Did you? Yes

Good Value, Works well

Reviewed By: moxbox on 12/23/2008

Tech Level: high - Ownership: 1 week to 1 month

This user purchased this item from Newegg

Pros: A good motherboard to reuse a high-end P4 processor.
Much faster than my other/older P4 systems.

Cons: Read the Supported CPU List!
Older 433Mhz FSB processors are not supported at all.
Northwood and Prescott work just fine.

Must have a PS/2 Keyboard to start up with,
in order to enable Legacy USB in the BIOS.
Use a 40 Pin IDE cable with IDE CDROM,
I had some trouble with 80 Pin cables.

Other Thoughts: If not for the PS/2 & IDE problems, I would have rated higher. WOrks great with the MSI N9400GT-MD512H GeForce 9400 GT 512MB VGA with HDMI output for an HTPC.
The digital audio (SPDIF) connects right thru the HDMI cable with that combination - very nice with 1080i HDMI.

3 out of 3 people found this review helpful. Did you? Yes

No Problems

Reviewed By: on 12/23/2008

Tech Level: high - Ownership: 1 week to 1 month

This user purchased this item from Newegg

Pros: No a single problem with the installation of this product.

Cons: None.

Other Thoughts: For the price this was exactly what I wanted to replace an old motherboard.

1 out of 1 people found this review helpful. Did you? Yes

Model
Brand	MSI
Model	945GCM478-L
Supported CPU
CPU Socket Type	478
CPU Type	Pentium D / Pentium 4 HT / Celeron D
FSB	800/533MHz
Supported CPU Technologies	Hyper-Threading Technology
Chipsets
North Bridge	Intel 945GC
South Bridge	Intel ICH7
Memory
Number of Memory Slots	2×240pin
Memory Standard	DDR2 667
Maximum Memory Supported	4GB
Channel Supported	Dual Channel
Expansion Slots
PCI Express x16	1
PCI Slots	2
Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA 3Gb/s	4
Onboard Video
Onboard Video Chipset	Intel GMA 950
Onboard Audio
Audio Chipset	Realtek ALC888
Audio Channels	8 Channels
Onboard LAN
LAN Chipset	Realtek 8101E
Max LAN Speed	10/100Mbps
Rear Panel Ports
PS/2	2
COM	1
LPT	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 Ports
Onboard USB
Onboard USB	4 x USB 2.0
Physical Spec
Form Factor	Micro ATX
Dimensions	9.6" x 8.6"
Power Pin	24 Pin
Packaging
Package Contents	945GCM478-L Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable 4-pin to SATA Power Cable
